ABB XVC767AE102 3BHB007209R0102 Industrial Control Module

ABB PM825 3BSE010796R1 is one of the core processor modules in the ABB Advant OCS 800 series or AC800xA system. It is used for functions such as logical control, data acquisition, and processing in industrial control systems. It adopts a modular design and features high performance, high reliability, easy programming, and scalability, making it suitable for various industrial application scenarios.

Tag：ABB XVC767AE102 3BHB007209R0102, Automation Control Module, Bridge Controller, Controller module, Excitation Controller Module, Industrial Control Module, Intelligent Controller, inverter control unit, PLC module

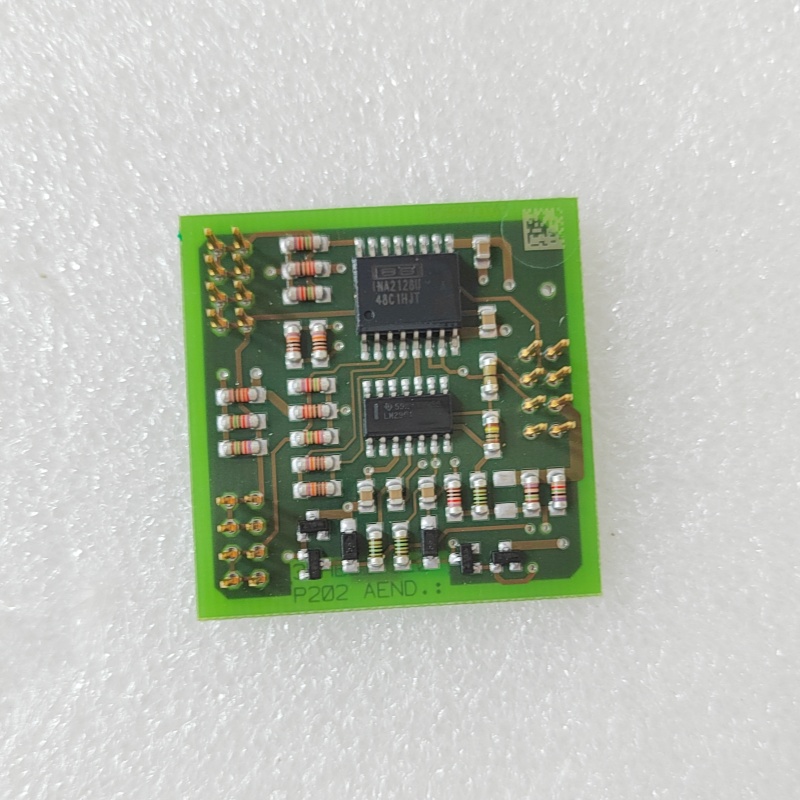

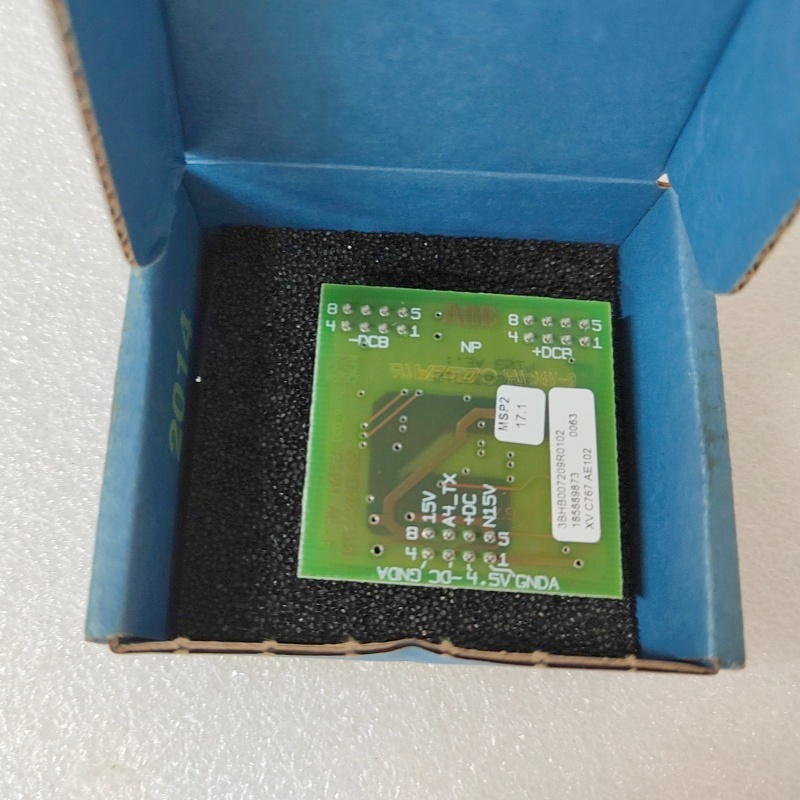

ABB XVC767AE102 3BHB007209R0102

I. Overview

The ABB XVC767AE102 3BHB007209R0102 is a modular control solution specifically designed for industrial automation, suitable for various industrial environments. It features a compact structure, powerful functions, easy installation and maintenance, and can meet the needs of various industrial applications.

II. Main Parameters

Model: XVC767AE102
Part Number: 3BHB007209R0102
Input Voltage: 24V DC ± 20%
Input Current: Maximum 5 mA
Output Frequency: 30 kHz
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +85°C
Dimensions: 400 mm x 250 mm x 120 mm
Weight: 12 kg
Protection Class: IP20
Communication Protocols: Ethernet/IP, Modbus TCP/IP
Maximum I/O Points: Up to 128

III. Product Features

Modular Design: Can be flexibly configured according to different application requirements, suitable for various industrial environments.
High Performance: Adopts advanced vector control technology, which can achieve precise control of motors, provide smooth acceleration and deceleration processes, and optimize motor energy efficiency.
High Reliability: Manufactured with high-quality components to ensure long-term stable operation in harsh industrial environments.
Easy Installation and Maintenance: Compact structure for easy installation and maintenance, with clearly identifiable terminal blocks.
Support for Multiple Communication Protocols: Supports communication protocols such as Ethernet/IP and Modbus TCP/IP, facilitating integration with other equipment systems.

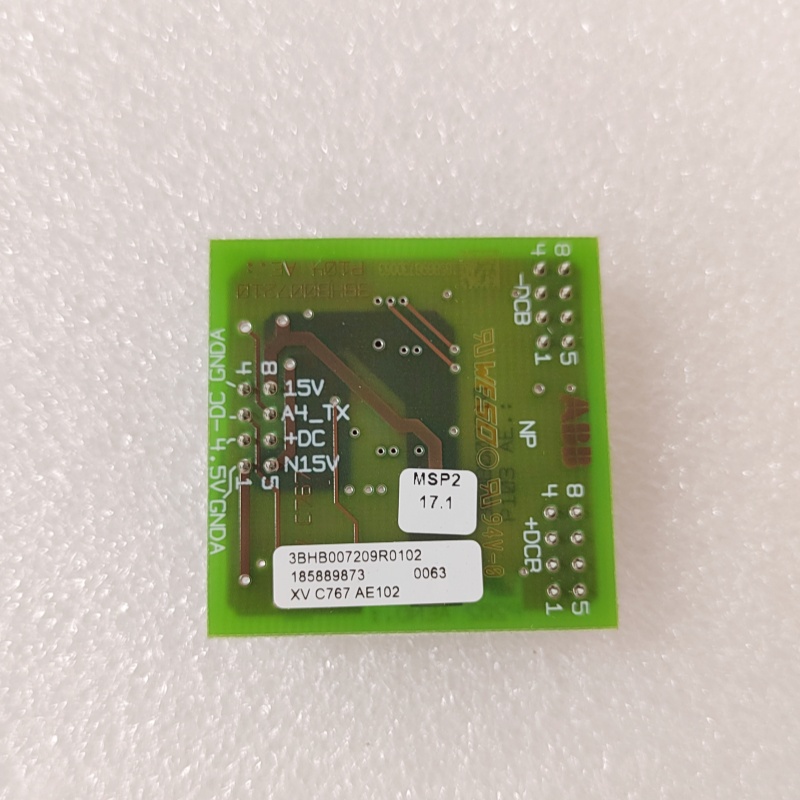

ABB XVC767AE102 3BHB007209R0102

IV. Structure and Composition

Shell Material: Aluminum alloy, which is sturdy and durable, providing reliable protection.
Interface Modes: RS-232, RS-485, Ethernet, etc.
Internal Components: Including CPU, memory, storage space, communication interfaces, etc.
Installation Method: Compact design, easy to install in control cabinets.

V. Application Fields

The ABB XVC767AE102 3BHB007209R0102 is widely used in the following fields:

Industrial Automation: Used to control equipment on production lines, such as motors and valves.
Process Control: Used to control process variables in industries such as chemical, petroleum, and pharmaceutical.
Energy Management: Used in power systems and energy management to control power equipment and switching devices.
Robotics: Supports robot motion control and task execution.
Building Automation: Used for the management of HVAC systems, lighting, and safety measures in intelligent buildings.

VI. Installation and Maintenance

Installation Guidelines: Detailed installation instructions are provided in the user manual, or you can contact ABB customer support for assistance. The installation method is of compact design, easy to install in control cabinets.
Maintenance Information: Supports hot swapping for quick replacement and maintenance. Maintenance personnel can easily replace components.

————————————————————————————————-
