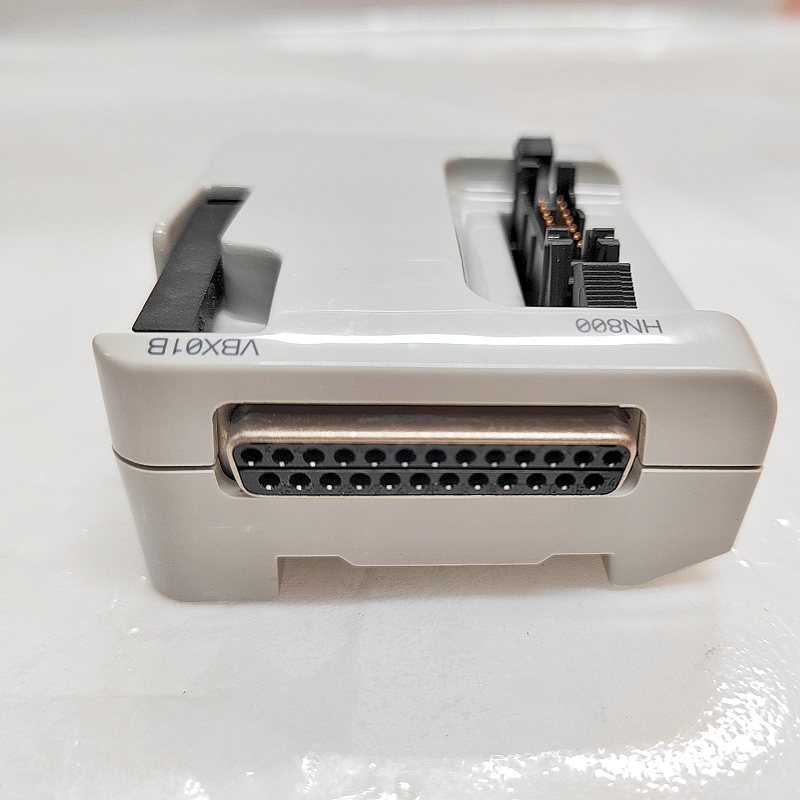

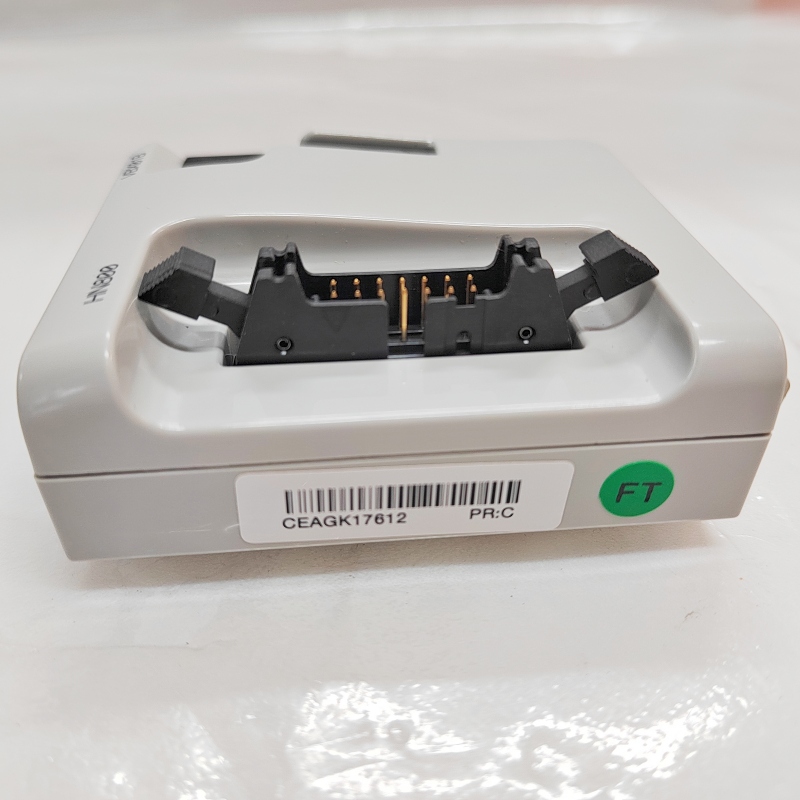

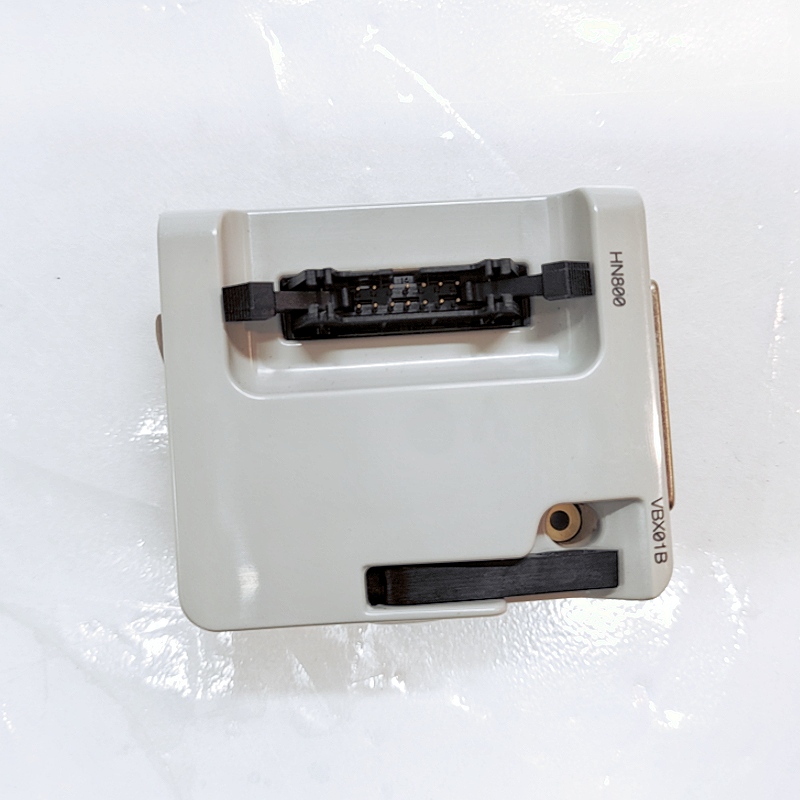

ABB VBX01BA

I. Overview

II. Parameters

• Model: VBX01BA
• Power Voltage: 24 V DC (with ±20% voltage fluctuation allowed)
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Humidity Range: 5% to 95% relative humidity, non-condensing
• Maximum Bus Length: 1000 m
• Maximum Number of Slaves: 31
• Communication Rate: Up to 12 Mbps
• Dimensions: Height 90 mm, Width 35 mm, Depth 130 mm
• Weight: 200 g
• Protection Class: IP67

III. Product Features

• High Performance and Reliability: VBX01BA uses high-quality electronic components and advanced design to ensure stable operation in harsh industrial environments.
• Multiple Communication Interfaces: Supports various communication protocols, including Ethernet and serial communication, improving system flexibility and scalability.
• Digital I/O Functionality: Provides 16 digital inputs and 16 digital outputs, supporting NPN or PNP signals, suitable for controlling various industrial devices.
• Bus Expansion Capability: As a bus expander, it extends the length of fieldbus systems, increases node quantity, and provides multi-channel power and data distribution, enhancing system flexibility and scalability.
• Easy Installation and Configuration: Modular design facilitates installation and integration, supporting remote diagnosis and maintenance.
• Security: Features high-level security to protect industrial processes and machines from external interference and attacks.

IV. Structure and Composition

• Main Control Unit: Manages digital signal processing and bus communication, supporting multiple communication protocols.
• Digital I/O Interface: Provides 16 digital inputs and 16 digital outputs, supporting NPN or PNP signals.
• Bus Expansion Module: Supports RS485 bus, enabling connection to multiple slave devices for improved system flexibility and scalability.
• Power Module: Supplies 24 V DC power to ensure stable module operation.
• Housing and Mounting: Adopts a metal casing and supports DIN rail mounting.

V. Application Areas

• Manufacturing: Automated production lines, robot control systems.
• Energy: Power plants, transmission line monitoring systems.
• Construction: Building automation systems, smart home systems.
• Transportation: Metro signal control systems, intelligent transportation systems.
• Industrial Automation: Applied in various industrial automation scenarios, such as CNC machinery, metallurgy, oil and gas, petrochemicals, chemical industry, papermaking, textile printing and dyeing, etc.

VI. Installation and Maintenance

1. Mount the VBX01BA module on a DIN rail.
2. Connect the power and signal cables, ensuring correct wiring.
3. Configure and debug via software to ensure the module operates normally.

• Regularly inspect the module’s connections and power status to ensure stable operation.
• Use remote diagnostic tools for fault detection and maintenance to improve efficiency.
• Install in a well-ventilated environment to avoid high temperatures and humidity.
