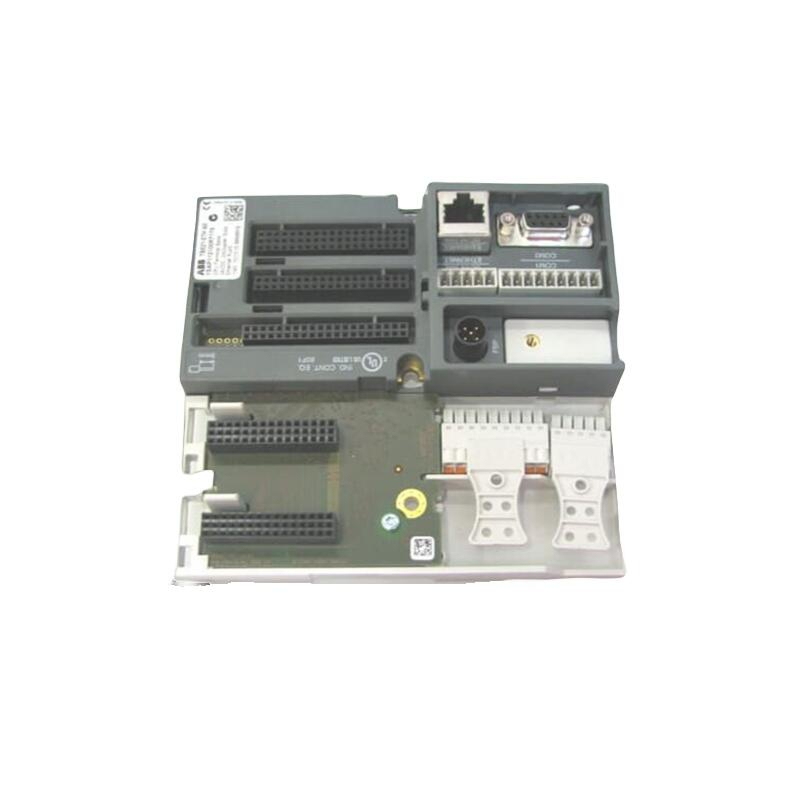

ABB TB521-ETH

I. Overview

II. Parameters

• Connection Method: Ethernet (RJ45 interface)
• Protocol Support: Modbus, TCP, UDP, ASCII, and binary data formats
• Power Supply: 24V DC
• Operating Temperature: -40°C to 70°C
• Number of Slots: 2 slots for communication modules
• Dimensions: 100mm × 75mm × 30mm
• Net Weight: 0.186 kg
• Net Depth/Length: 28 mm
• Net Height: 135 mm
• Net Width: 123.5 mm
• Maximum Operating Temperature: +60°C

III. Product Features

• Multifunctional Communication: Supports Ethernet, RS232, and RS485 interfaces, compatible with multiple communication protocols such as Modbus, TCP, UDP, ASCII, and binary data formats.
• Remote Programming and Diagnosis: Enables remote programming and diagnosis via Ethernet, enhancing system flexibility and maintenance convenience.
• Self-Diagnostic Function: Equipped with comprehensive self-diagnostic capabilities to reduce downtime and maintenance costs.
• High Reliability: The PLC features an average MTBF (Mean Time Between Failures) of up to 300,000 hours.
• Simple Programming: Supports five standard programming languages (FBD (Function Block Diagram), IL (Instruction List), LD (Ladder Diagram), ST (Structured Text), SFC (Sequential Function Chart)), facilitating easier programming.
• Strong Expandability: Supports various slot options, allowing the addition of I/O modules to adapt to different engineering requirements.
• Safety Isolation: The main circuit of the main transformer is separated from the secondary circuit by double or reinforced insulation to ensure equipment safety.
• Protective Extra-Low Voltage (PELV): Provides electric shock protection, further enhancing operational safety.
• Compact Design: Features a compact form factor, suitable for deployment in industrial environments with limited space.

IV. Structure and Composition

• Communication Module Slots: 2 slots for inserting communication modules
• Ethernet Interface: Integrated Ethernet RJ45 interface
• Serial Interfaces: 2 serial interfaces (COM1 and COM2), supporting RS232/RS485 interfaces respectively
• Power Interface: 24V DC power interface
• Integrated Interfaces: Includes FBP slave interface, CAN interface, etc.
• Mounting Method: Suitable for DIN rail mounting

V. Application Areas

• Industrial automation systems: For seamless connection and communication of various industrial devices and systems
• Building automation: For automated control and management within buildings
• Energy management: For monitoring and control of energy systems
• Transportation: For control and communication of transportation equipment
• Environmental monitoring: For data collection and transmission in environmental monitoring systems

VI. Installation and Maintenance

Installation

• Suitable for DIN rail mounting
• Requires screw fixation to prevent module bending and damage
• Installation must comply with safety isolation requirements, including double or reinforced insulation and separation of primary and secondary circuits

Maintenance

• Provides comprehensive self-diagnostic functions to reduce downtime and maintenance costs
• Supports remote programming and diagnosis, improving maintenance convenience
• Installation and maintenance should follow the manufacturer’s guidelines and local regulations
