Manufacturing Technology:Advanced Surface Mount Technology (SMT)

Operating Temperature Range:-20°C to +85°C

Operating Voltage:12V DC

Operating Current:≤2A

Board Size:150mm x 100mm

Material:High-grade FR-4 epoxy resin

Reliability Rating:MTBF > 50,000 hours

Certifications:CE, UL, CSA

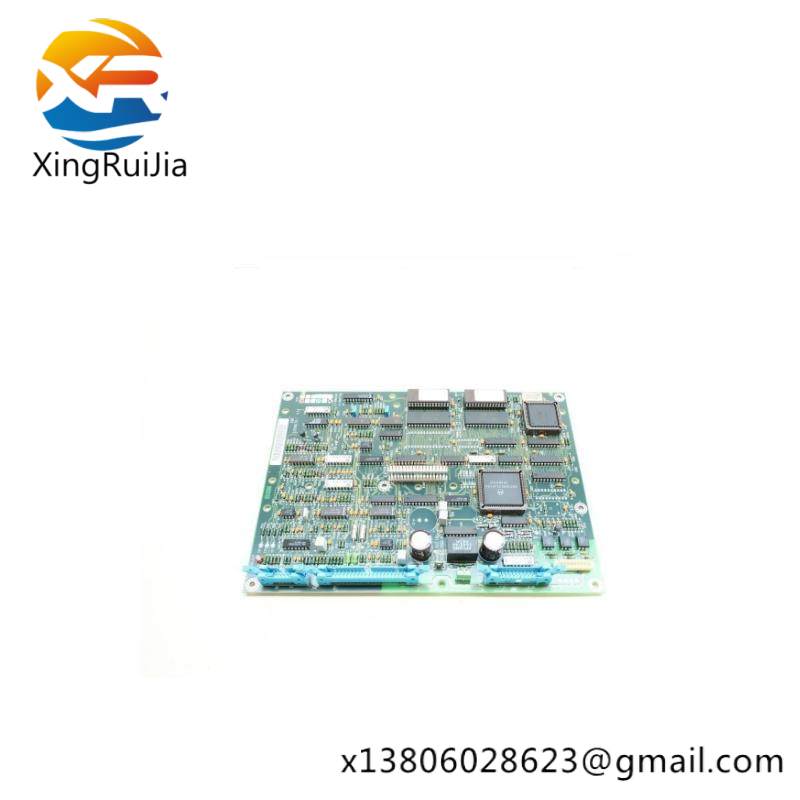

    Engineered for reliability and efficiency, the ABB SNAT7780CNT motor control circuit board is tailored for a wide range of industrial machinery, including conveyor systems, pumps, and compressors. Its precision control capabilities ensure optimized performance and minimal energy waste.

    Featuring a robust design with a temperature range of -20°C to +70°C, this circuit board can withstand harsh industrial environments without compromising on performance. It supports a versatile input voltage range of 100V to 240V AC, accommodating various power sources.

    With an output current capacity of up to 100A, it can handle heavy-duty loads with ease, providing the necessary power to drive large motors effectively. The inclusion of MODBUS RTU communication protocol enables seamless integration with existing automation systems, enhancing operational flexibility.

    Safety is paramount with the ABB SNAT7780CNT. It comes equipped with IP20 protection class, safeguarding against dust and splashes, ensuring reliable operation in industrial settings. Moreover, its compact size (200mm x 150mm x 50mm) and moderate weight (2.5kg) make it easy to install and integrate into various setups.

    Backed by ABB‘s reputation for quality and innovation, the SNAT7780CNT motor control circuit board is a trusted choice for enhancing productivity, reducing maintenance costs, and improving overall efficiency in manufacturing and process industries.
