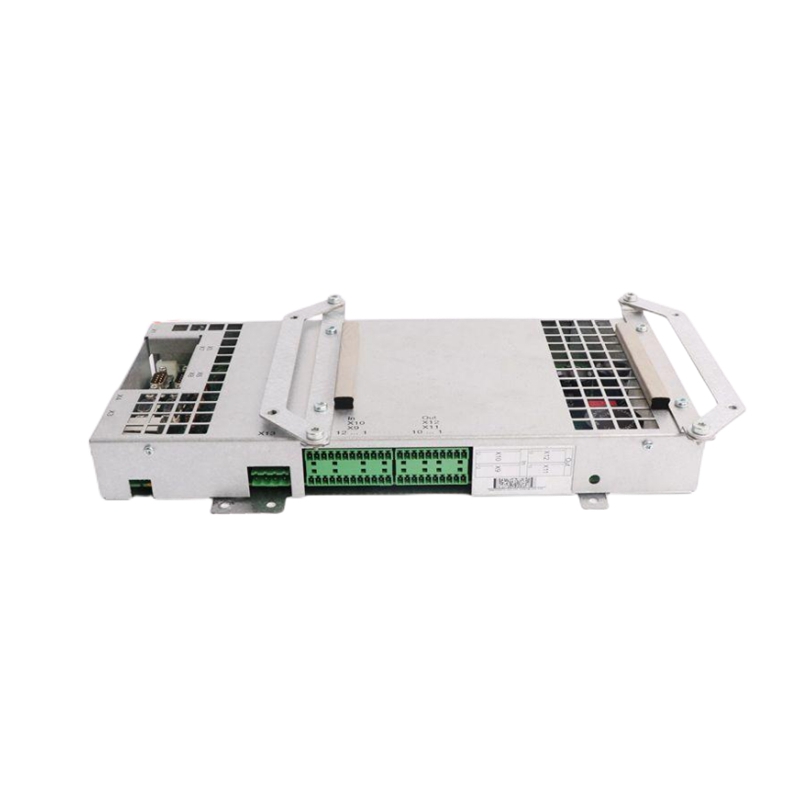

ABB SNAT-2103

1. Overview

2. Parameters

• Rated Voltage: 220V AC
• Output Frequency: 30kHz
• Operating Temperature Range: -20°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Dimensions: 140mm x 100mm x 30mm
• Weight: 0.25kg
• Interface Type: Threaded interface
• Material: Manufactured from high-quality materials to ensure durability in harsh industrial environments.

3. Product Features

• High Reliability: Manufactured with premium materials and processes to ensure long-term stable operation.
• High Safety: Equipped with multiple safety functions to ensure the safety of personnel and equipment.
• Easy Installation and Maintenance: Simple structure for convenient installation and maintenance.
• Multifunctionality: Supports integration with various industrial control systems, suitable for multiple application scenarios.
• High Performance: Provides stable switching performance, suitable for demanding industrial automation applications.

4. Structure and Composition

• Main Control Unit: Responsible for processing and controlling input/output signals.
• Interface Module: Provides multiple digital input/output interfaces, supporting signals of different voltage levels.
• Power Module: Supplies stable power to the entire control board.
• Connectors: Used to connect external devices, such as I/O interface extensions, cables, and adapters.

5. Application Fields

• Factory Automation Control Systems: Used to control and monitor automated equipment in factories.
• Power Supply for Mechanical Equipment: Provides stable power for mechanical equipment.
• Process Control Systems: Used to monitor and control various parameters in the production process.
• Power System Monitoring and Control: Used for monitoring and controlling power systems to ensure stable operation.

6. Installation and Maintenance

• Installation: The control board is typically mounted via a bracket, with a threaded interface for easy fixing and connection.
• Maintenance: Due to its simple structure, maintenance is convenient. Users only need to regularly check the connection and power status. Additionally, the control board has good protection performance, suitable for use in harsh environments.
