Dimension (D x H x W):175.26 x 35.56 x 297.18 mm

Weight:0.6 kg

Operating Temperature Range:-20°C to +70°C

Input Voltage Range:12 to 36 VDC

Output Current Capacity:5 mA per channel

Data Acquisition Speed:10 kHz per channel

Number of Channels:4

Communication Interface:RS-485

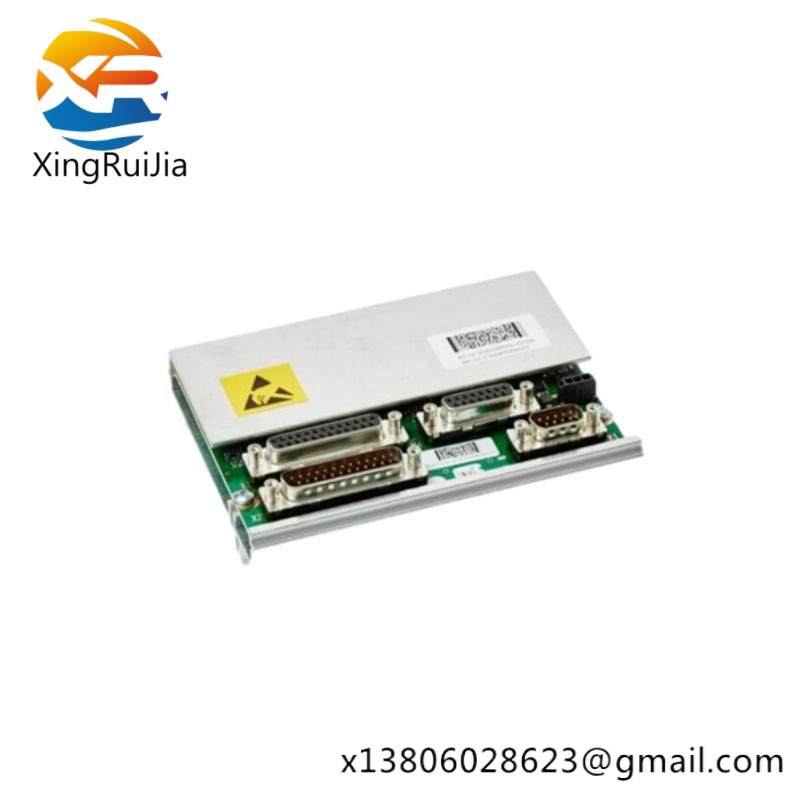

    The ABB SMB3HAC042285-001 Serial Measurement Board is engineered for precision in industrial automation, featuring a wide measurement range suitable for a variety of applications from process control to machine monitoring.

    With an accuracy of +/- 0.02% of reading plus 2 Least Significant Bits (LSBs), this board ensures reliable data acquisition that meets the stringent requirements of modern industrial settings.

    Built to withstand extreme conditions, it operates effectively within temperatures ranging from -20°C to +70°C, ensuring stable performance throughout the year.

    Equipped with a DC 24V input voltage, it supports a broad range of power supplies commonly found in industrial environments, providing flexibility and compatibility.

    Featuring MODBUS RTU communication protocol, the board seamlessly integrates into existing industrial networks, facilitating easy setup and management through standard software tools.

    Compact yet robust, measuring 170mm x 68mm x 30mm, and weighing just 0.3kg, the ABB SMB3HAC042285-001 is designed for efficient installation and maintenance in confined spaces.
