Operating Temperature:-20°C to +55°C

Storage Temperature:-40°C to +85°C

Power Consumption:≤ 1.2 W

Communication Protocol:DeviceNet

Dimensions (WxHxD):94 mm x 54 mm x 35 mm

Connectors:10-pin connector for I/O signals

Operating Voltage:24 V DC

Number of Analog Inputs:8

Analog Output Resolution:12-bit

Analog Input Range:± 10 V

Digital Input Count:16

Digital Output Count:16

Accuracy:± 0.1% FS ± 1 LSB

Response Time:≤ 1 ms

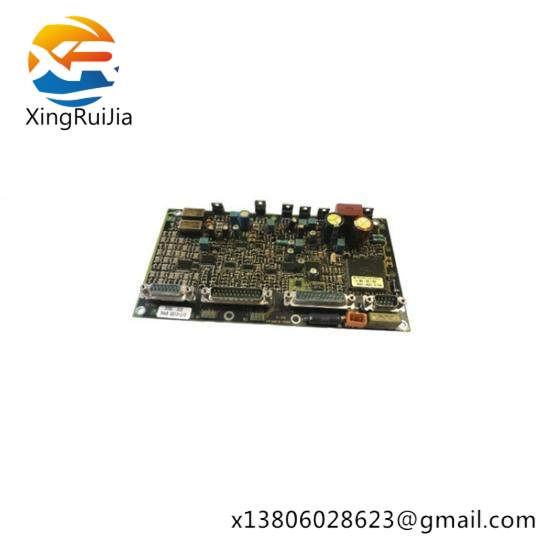

    The ABB SMB DSQC 313 3HAB2213-1 Measurement Meß Board offers unparalleled reliability and robustness in industrial settings, making it an ideal choice for applications requiring high accuracy and efficiency.

    With its compact design, this board seamlessly integrates into any existing automation system, minimizing installation time and space requirements.

    Featuring DeviceNet compatibility, it ensures smooth communication between different components within the automation network, enhancing system performance and flexibility.

    The board is equipped with 16 channels, providing ample resources for managing a wide range of input and output signals. This versatility supports diverse industrial processes, from simple monitoring tasks to complex control operations.

    Operating within a temperature range of -25°C to +70°C, the DSQC 313 3HAB2213-1 is designed to withstand harsh industrial environments, ensuring consistent performance throughout its operational life.
