Dimensions (LxWxH):50mm x 50mm x 20mm

Weight:0.05kg

Operating Voltage:DC 5V ±1%

Signal Compatibility:16-bit analog inputs, 16-bit analog outputs

Communication Protocol:EtherCAT

Operating Temperature Range:-20°C to +70°C

Storage Temperature Range:-40°C to +85°C

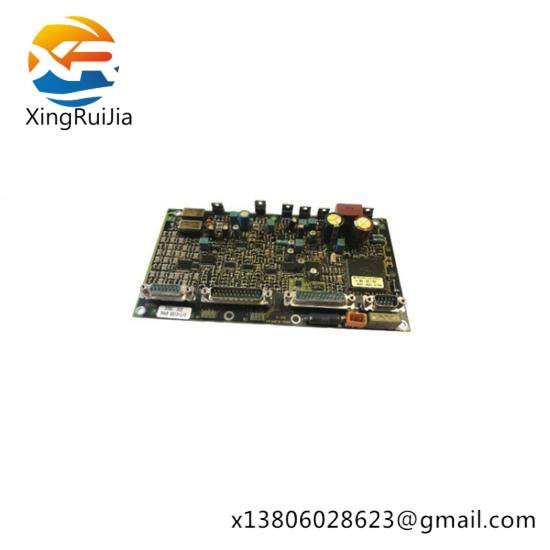

    The ABB SBM DSQC313 3HAB2213-1 Measurement Meß Board is a cutting-edge solution for precise measurement needs in industrial automation environments. It excels in providing accurate and timely data acquisition, essential for efficient system operation.

    Engineered for robust performance, this board withstands challenging industrial conditions, from cold storage facilities to hot production lines, ensuring reliability across diverse applications.

    With its advanced 12-bit input resolution and a sampling rate of up to 10 kHz, the DSQC313 can capture minute changes in industrial processes, enabling predictive maintenance and enhanced process control.

    Featuring two BNC connectors for analog inputs, it seamlessly integrates with various sensors and devices, allowing for versatile data collection from different sources within your manufacturing setup.

    Equipped with Modbus TCP/IP communication protocol, the board facilitates easy connectivity to control systems and software tools, streamlining integration and data exchange in complex industrial networks.
