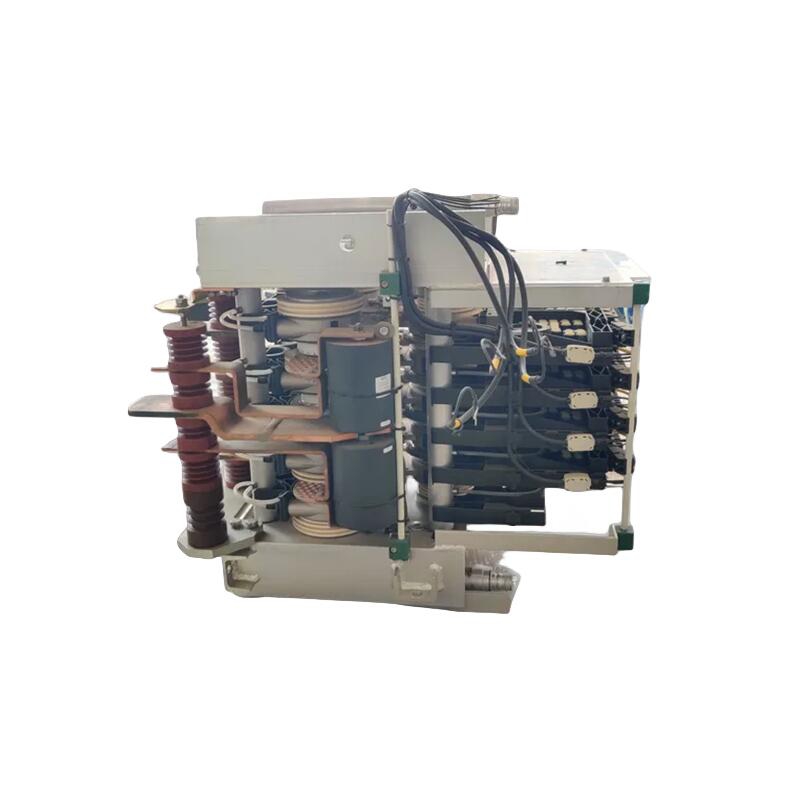

ABB S-073N 3BHB009884R5211 is a phase module specifically designed by ABB for the high-voltage frequency conversion field. Its core function is to ensure the stable and efficient operation of high-voltage frequency converters in industrial automation systems by precisely controlling the phase output of the inverter. Based on IGCT (Integrated Gate-Commutated Thyristor) technology, this module is suitable for medium and high-voltage application scenarios and is widely used in power system protection, control, and measurement. Its modular design facilitates installation and maintenance, while it also features high-precision phase measurement capability (±0.1°) and fast response characteristics, making it suitable for complex industrial environments.

Parameters

• Model and Number: S-073N / 3BHB009884R5211
• Measurement Range: 0-360° (phase angle)
• Accuracy: ±0.1° (typical value)
• Response Time: Refer to the product data sheet
• Input/Output Signals: Specific types and ranges need to be checked in the manual
• Protection Class: IP20 (some models)
• Operating Temperature: -20 ~ +60℃
• Material: Aluminum alloy (ALU model)
• Dimensions and Weight: Specific dimensions and weight need to refer to the actual product specifications

Structure and Composition

• Core Components: Integrated power semiconductor devices (such as IGCT) and drive circuits, supporting high-frequency switching operations.
• Modular Structure: Composed of a phase control unit, signal interface, and heat dissipation system, facilitating quick replacement.
• Connection Method: Connects to high-voltage frequency converters or control systems through standard interfaces, supporting logically independent dual-bus electrical interfaces.

Application Fields

• Industrial Automation: Used for motor speed and torque regulation to improve production efficiency.
• High-Voltage Motor Drives: Suitable for equipment such as wind turbines, elevators, and machine tools.
• Energy and Infrastructure: Including power systems in fields such as buildings, data centers, and smart buildings.
• Special Environments: Explosion-proof design makes it suitable for hazardous environments such as petroleum and chemical industries.
• Renewable Energy: Such as power conditioning systems in solar and wind power generation.

Installation and Maintenance

• Installation Steps:
  • Strictly follow the ABB installation manual to ensure the equipment is powered off and free from strong electromagnetic interference.
  • Check whether the installation location meets the requirements and use appropriate tools (such as screwdrivers and wrenches).
  • Confirm that the module has no external damage and that all accessories are complete.
• Maintenance Recommendations:
  • Regularly monitor phase control data and troubleshoot abnormal alarms.
  • Clean dust on the module surface to prevent heat dissipation obstruction.
  • When upgrading or modifying the system, evaluate the need for parameter adjustment or firmware update.
• After-Sales Service: Provides a 1-year warranty, and the technical support team can assist in solving installation and maintenance problems.
