Product Overview

The ABB REU615 HBUAEAADANB6ANN1XG is a high-performance voltage protection, measurement, and control device designed for public and industrial power distribution systems, including grids with distributed generation. It primarily monitors and controls voltage and frequency to ensure grid stability. The device offers multiple protection functions to meet the demands of various application scenarios.

Specifications

• Model: REU615 HBUAEAADANB6ANN1XG
• Power Range: 110 kW – 160 kW
• Voltage Range: 380 V – 525 V
• Frequency Range: 0.5 Hz – 500 Hz
• Control Method: Vector control
• Protection Functions: Overcurrent, overvoltage, overtemperature, short circuit, etc.
• Dimensions: 480 mm × 220 mm × 180 mm
• Weight: 15 kg

Product Features

• High Performance: Utilizes advanced digital signal processing (DSP) technology, offering high precision, reliability, and fast response.
• Flexible Configuration: Protection, measurement, and communication functions can be customized based on user requirements.
• Multi-Protocol Support: Compatible with IEC 61850, Modbus, DNP3, and IEC 60870-5-103 communication protocols.

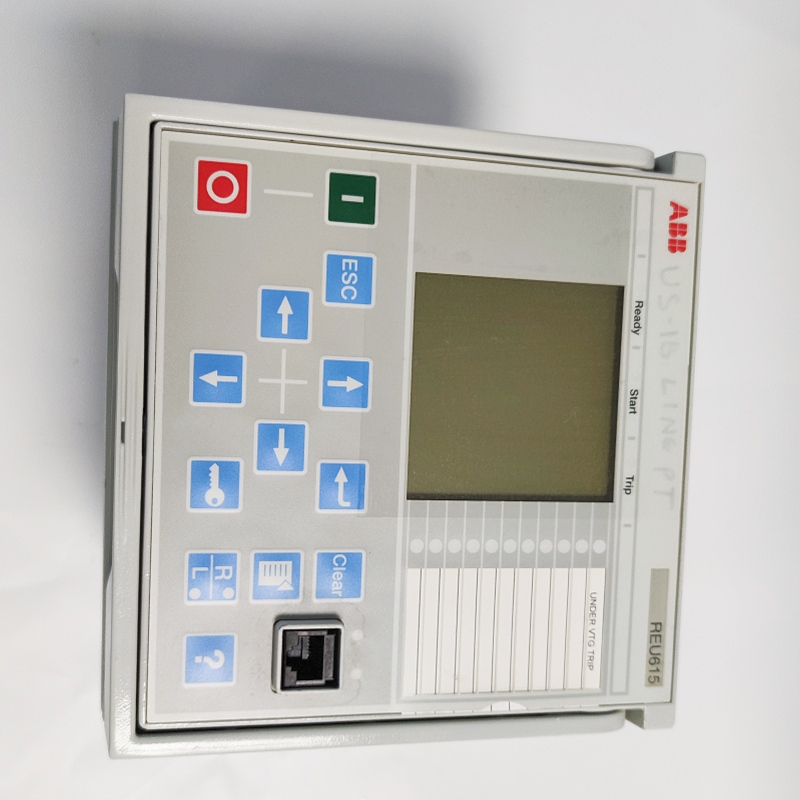

• Human-Machine Interface (HMI): Features a large LCD display supporting local and web-based HMI operations.
• Redundant Communication: Supports HSR and PRP via redundant Ethernet for high availability.
• Time Synchronization: Compliant with IEEE 1588 v2 for high-precision timing in process bus applications.

Structure and Components

• Core Module: Includes the main control unit, measurement unit, and communication unit.
• Protection Module: Provides functions such as overvoltage, undervoltage, overfrequency, and underfrequency protection.
• Communication Interface: Supports multiple protocols for seamless integration with SCADA and control systems.
• Display & Operation Panel: Equipped with a large LCD for single-line diagram editing and remote access.

Applications

• Power Systems: Protection and monitoring of transformers, generators, and busbars.
• Industrial Distribution Systems: Suitable for substations, power plants, and transmission lines.
• Energy Sector: Voltage monitoring and control in energy management systems (EMS).
• Industrial Automation: Ensures stable operation of electrical equipment in production processes.

Installation & Maintenance

• Installation: Refer to the user manual for proper setup and configuration.
• Commissioning: Follow the debugging guide for device initialization and functional testing.
• Maintenance: Regular inspections, cleaning, connection checks, and part replacements ensure optimal performance.
• Lifecycle Services: ABB offers comprehensive support, including training, technical assistance, maintenance, and modernization upgrades.
