Operating Voltage:AC/DC 85V-264V

Current Rating:16A @ 24VDC

Relay Contacts:8 Form C SPST, 8 Form C DPDT

Insulation Resistance:≥ 1000MΩ

Operating Temperature Range:-20°C to +55°C

Enclosure Rating:IP20

Dimensions:140mm x 105mm x 75mm

Weight:0.5kg

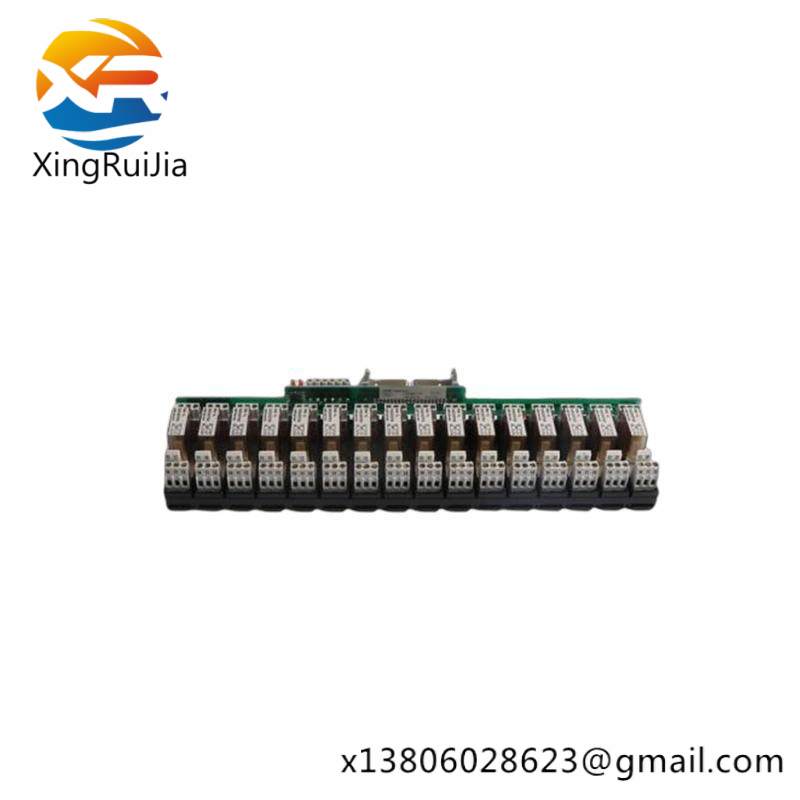

    The ABB RDO86-16L Relay Unit is engineered for seamless integration into complex industrial control systems, ensuring reliable operation across a wide range of applications. Its compact size and lightweight design facilitate easy installation in space-constrained environments without compromising performance.

    Featuring a high number of channels (16 SPDT relays), this unit is versatile enough to manage multiple circuits or functions simultaneously, enhancing system flexibility and reducing the need for additional components.

    With a robust power handling capacity, the RDO86-16L can withstand heavy loads without overheating or failure, making it suitable for demanding industrial environments. Its advanced programming capabilities allow for customization to meet specific safety requirements and operational needs.

    The unit is equipped with a variety of protective measures, including surge protection and overload protection, safeguarding against electrical disturbances and ensuring prolonged equipment life. The IP20 rating provides basic splash resistance, protecting against incidental contact and dust ingress.

    Designed with user convenience in mind, the ABB RDO86-16L Relay Unit offers intuitive setup and maintenance through its clear labeling and standardized interface. Its compatibility with various control protocols ensures seamless communication with other system components, optimizing overall system performance.
