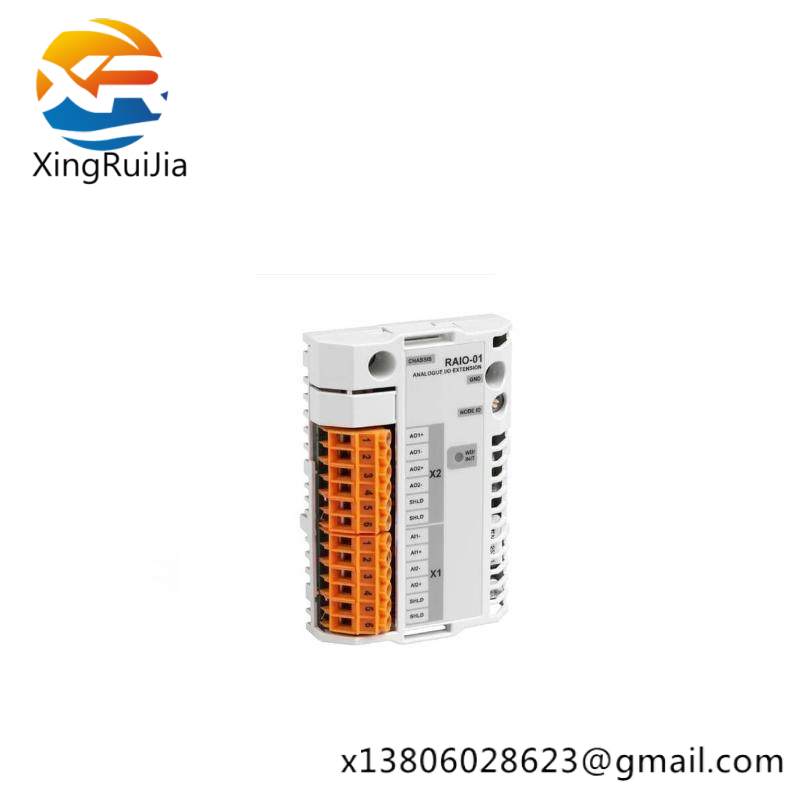

Type:Analog I/O Extension Module

Model:RAIO-01

Manufacturer:ABB

Connector Type:Industry Standard

Operating Voltage:DC 24V

Input Channels:16

Output Channels:16

Signal Range:-10V to +10V

Response Time:Less than 1ms

Communication Interface:MODBUS RTU

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Material:Aluminum Alloy

Weight:0.5kg

    The ABB RAIO-01 module is specifically engineered for demanding industrial environments, ensuring reliability and efficiency in managing complex control systems. This module offers an expanded capability for data acquisition and process control, making it an indispensable tool for automation engineers.

    Featuring high-density connections for up to four analog input and output channels, the RAIO-01 allows for versatile configuration to meet various application requirements. It seamlessly integrates with existing systems via its MODBUS RTU communication interface, simplifying the setup and management process.

    With an operating temperature range of -20°C to +60°C and a humidity tolerance of 5% to 95% non-condensing, this module is built to withstand harsh conditions typically encountered in industrial settings. Its compact size (120mm x 100mm x 30mm) and lightweight design (0.5kg) make it easy to install and maintain.

    The RAIO-01 module supports a power consumption of up to 15W, ensuring efficient energy use without compromising on performance. This makes it suitable for applications where power management is critical, helping to reduce operational costs and environmental impact.

    Designed with user-friendliness in mind, the ABB RAIO-01 comes with comprehensive documentation and technical support, ensuring a smooth integration process. It is compatible with a wide range of ABB and third-party automation systems, providing a versatile solution for diverse industrial automation needs.
