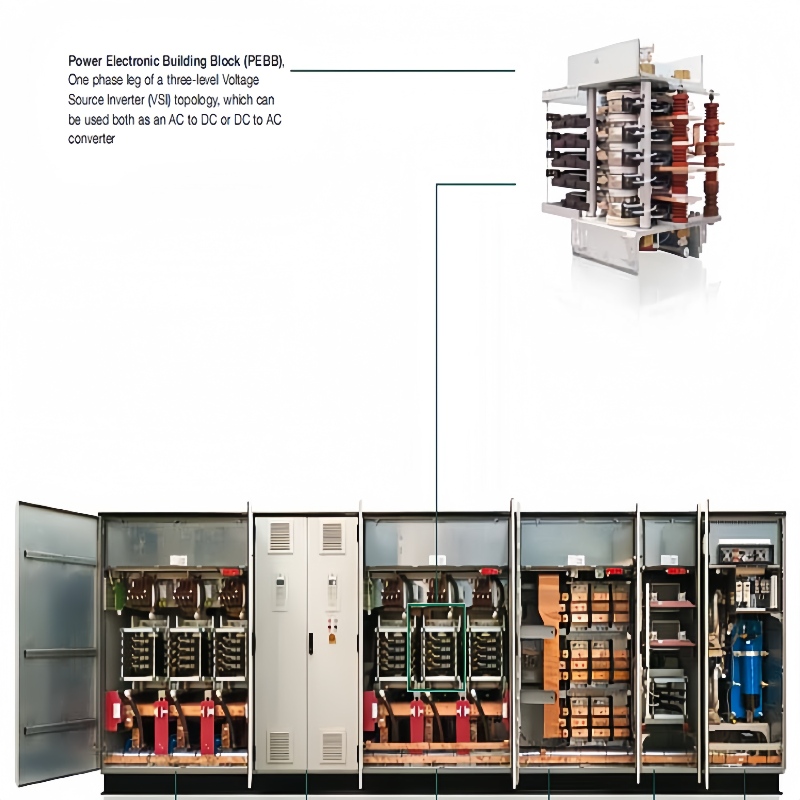

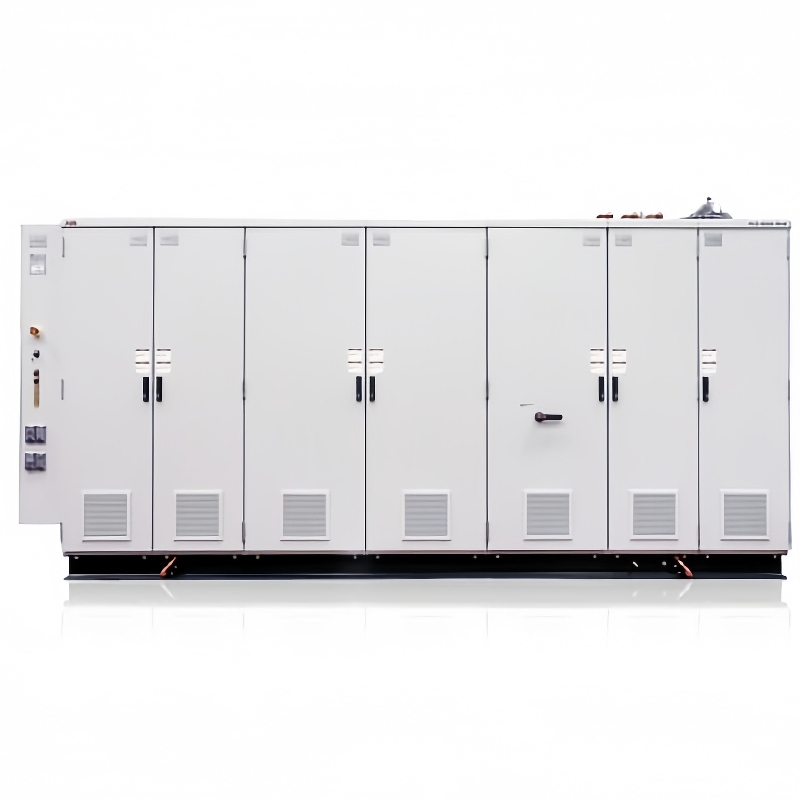

ABB PCS6000 PRODUCE FAMLIY

Parameters

• Voltage levels: 3.3 kV, 4.16 kV, 6.6 kV, 6.9 kV, 10 kV, 11 kV.
• Power range: Typically covers approximately 1 MW to 28 MW and above (depending on voltage and model).
• Output frequency: 0 to 120 Hz (standard), customizable to higher frequencies.
• Efficiency: Usually > 98% (including transformer).
• Input power factor: Close to 1 (no additional power factor compensation device required).
• Overload capacity: Typically 110% continuous operation, 120% for 60 seconds, 150% for 2 seconds.
• Control accuracy: Speed control accuracy is usually better than 0.1% (open-loop), 0.01% (closed-loop).
• Protection class: Cabinets are usually IP21, IP31, IP42 or higher (depending on configuration and application requirements).

Product Features

• Excellent energy efficiency: Four-quadrant operation capability (regenerative energy feedback to the grid) and high system efficiency.
• Perfect grid performance: Extremely low harmonic distortion (THiD < 3-5% @ full load), high input power factor (~1), compliant with strict grid specifications.
• Outstanding motor performance: High-quality sinusoidal output current/voltage, low dv/dt, protection of motor insulation, reduction of bearing current risk, support for standard asynchronous motors and permanent magnet motors.
• High reliability:
  • Modular design (redundancy of key components optional).
  • Robust power semiconductor design.
  • Advanced cooling system (air-cooled or water-cooled).
  • Built-in diagnostic and monitoring functions.
• Flexibility and scalability:
  • Modular architecture facilitates maintenance and upgrades.
  • Multiple cabinet sizes and configurations available.
  • Easy integration into automation systems (supporting multiple communication protocols).
• User-friendliness:Low maintenance requirements: Long-life design with predictive maintenance support.
  • Graphical control panel/human-machine interface (HMI).
  • Intuitive debugging and parameter setting tools.
  • Comprehensive diagnostic and event recording functions.

Application Fields

• Mining: Large fans, water pumps, mills, belt conveyors, hoists.
• Metallurgy: Main drives of rolling mills, fans, water pumps, compressors, roller tables.
• Oil and gas: Pipeline compressors, water injection pumps, main fans/compressors on offshore platforms.
• Water and wastewater treatment: Large water intake pumps, water supply pumps, sewage lift pumps, aeration fans.
• Power industry: Boiler feed pumps, induced draft fans, forced draft fans, circulating water pumps, condensate pumps.
• Chemical and petrochemical industry: Large compressors, pumps, mixers, extruders.
• Cement industry: Raw material mills, cement mills, fans, crushers.
• Pulp and paper industry: Pulpers, paper machines, fans, compressors.
• Marine industry: Main propellers, thrusters, large pumps/fans (requiring classification society certification).
• Test benches: High-power motor/engine test platforms.

Installation and Maintenance

Installation

• Environmental requirements: Clean, dry, well-ventilated, free of corrosive gases, ambient temperature/humidity in line with specifications, and sufficient space (operation and maintenance channels).
• Foundation: Solid and level concrete foundation.
• Electrical connections: Strictly follow the drawings for high-voltage input, motor output, auxiliary power, and grounding (extremely important) connections. Professional high-voltage electricians are required for operation.
• Cooling system connections: Ensure unobstructed air ducts or correct water circuit connections (for water-cooled models), with flow/pressure/water quality up to standard.
• Control system integration: Connect I/O signal lines and communication buses.

Commissioning

• Pre-power-on inspection (insulation, wiring, mechanics).
• Auxiliary power-on test.
• Control software parameter configuration (motor data, application macros, protection settings, etc.).
• No-load test (output voltage, waveform, phase sequence).
• No-load test with motor (rotation direction, basic control).
• Load test and optimization (speed loop, current loop tuning).
