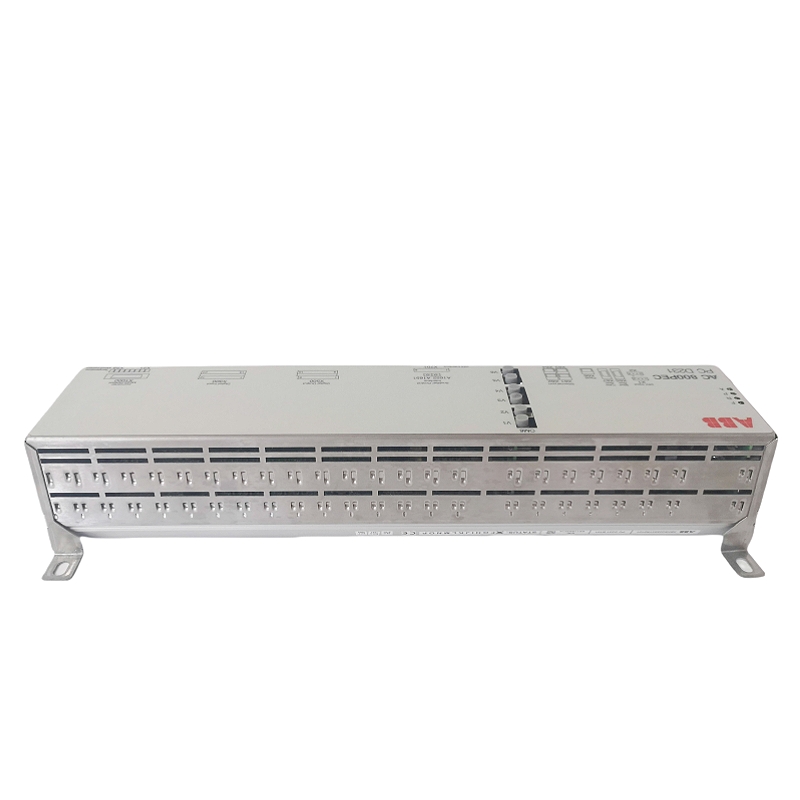

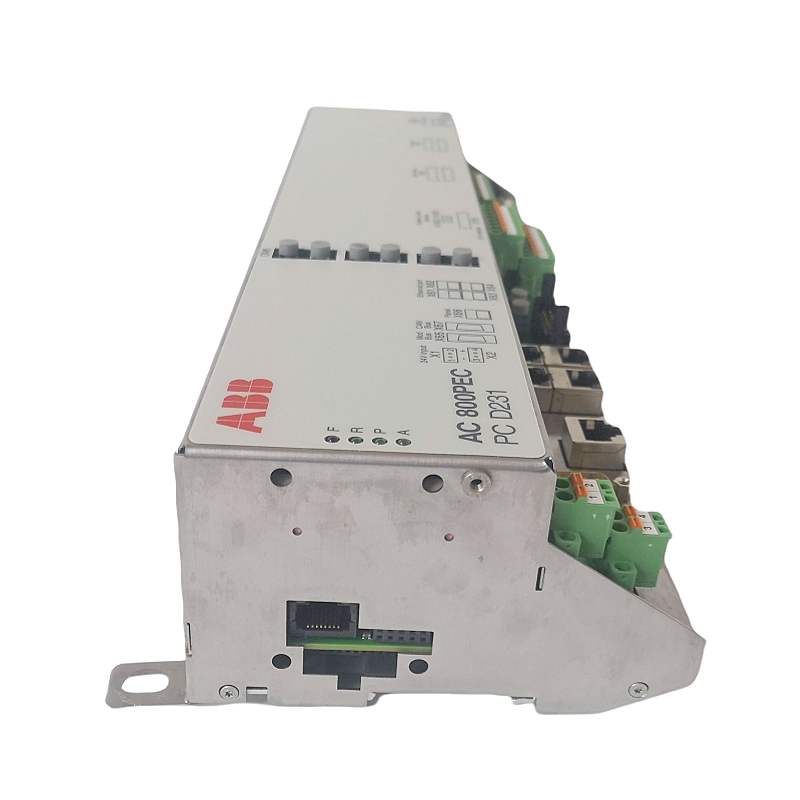

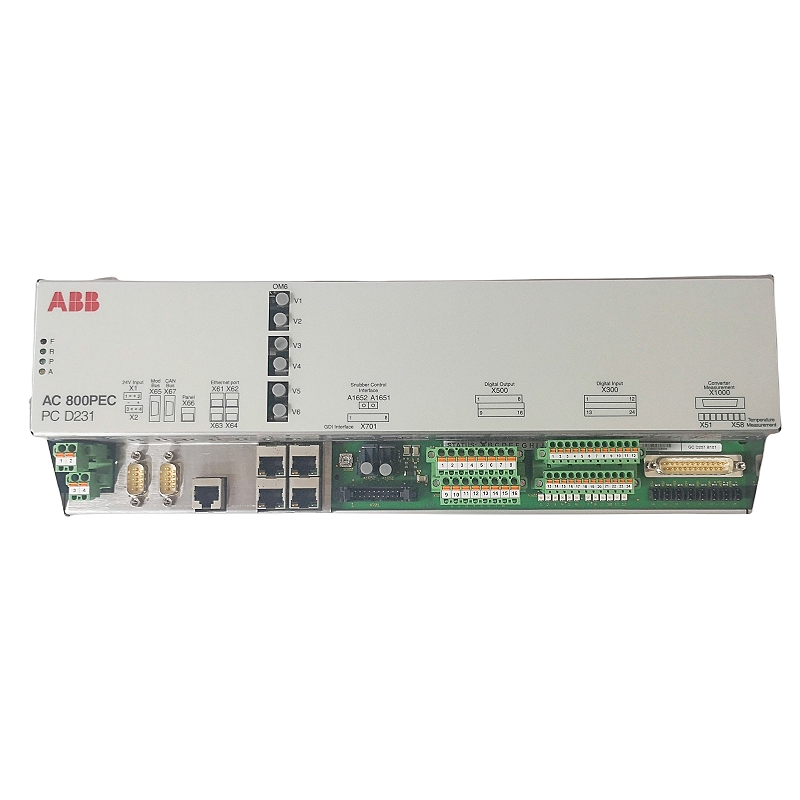

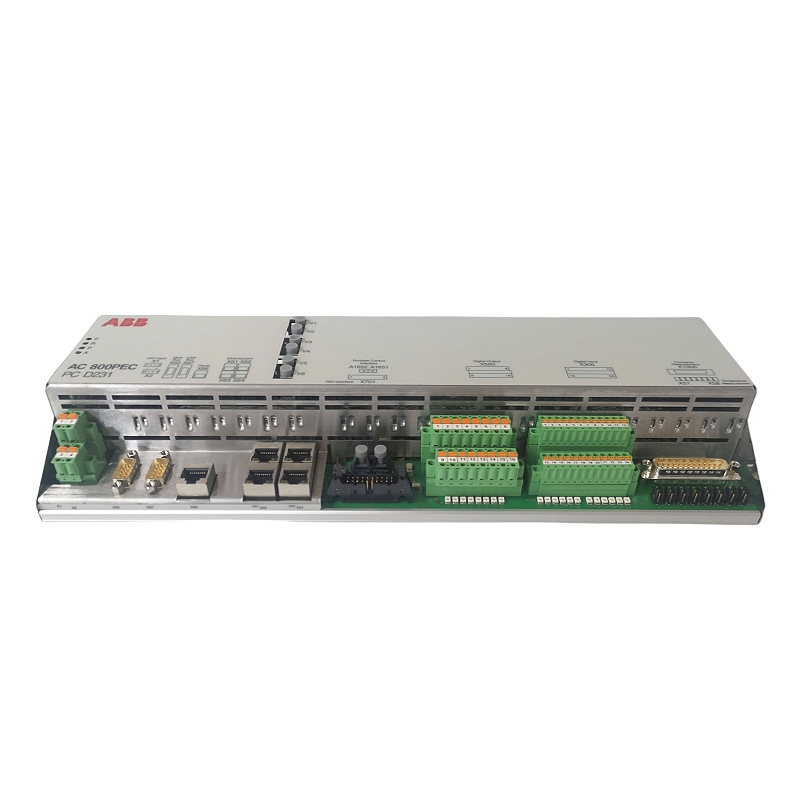

ABB PCD231B101 3BHE025541R0101

Overview

Main Parameters

• Input voltage: 24V DC
• Rated voltage: 380V AC to 690V AC
• Rated power: 231 kW
• Frequency range: 0.5 Hz to 120 Hz
• Control method: Pulse Width Modulation (PWM)
• Communication interface: Supports protocols such as Modbus RTU/ASCII, ABB RP570, etc.
• Dimensions: 142 mm × 73.5 mm × 373 mm
• Weight: 1.43 kg
• Operating temperature: -25℃ to 70℃
• Storage temperature: -40℃ to 85℃
• Relative humidity: 5% to 95%
• Power supply mode: 24V DC

Product Features

• High-precision control: Adopts advanced control algorithms to achieve high-precision excitation control.
• Fast response: Has a fast response speed, capable of quickly adjusting generator voltage to adapt to grid changes.
• High reliability: Uses industrial-grade components, with overload and short-circuit protection functions to ensure stable operation of the system.
• Flexible communication interface: Supports multiple communication protocols, facilitating integration with upper computer systems.
• Modular design: Easy for maintenance and expansion.
• Easy installation and maintenance: Compact design, convenient for installation and maintenance.
• High efficiency: Features high efficiency, which can save energy.
• Safety: Has safety performance, which can protect industrial processes and machines from external interference and attacks.

Structure and Composition

• CPU: Responsible for processing control signals and executing logical control.
• I/O interface: Used to connect external devices, enabling data transmission and the transfer of control signals.
• Power module: Provides stable power supply to ensure the normal operation of the module.
• Communication interface: Supports multiple communication protocols such as Modbus, CANopen, etc., facilitating integration with upper computer systems.
• Protection circuit: Includes overload protection, short-circuit protection, etc., to ensure stable operation of the system.

Application Fields

• Power systems: Used for controlling the excitation systems of generators and motors to ensure that current and voltage are within stable ranges.
• Industrial automation: Suitable for industrial automation control systems, realizing data collection, processing, and logical control.
• Energy management: Plays an important role in the field of energy management and automation technology.
• Transportation infrastructure: Applied to the automated control of transportation infrastructure.
• Other applications: Including building automation, heating, ventilation, and air conditioning control, etc.

Installation and Maintenance

Installation:

• Environmental requirements: Ensure that the installation environment meets the requirements for operating temperature, humidity, etc.
• Connection: Make connections according to the connection diagram in the product manual to ensure all connections are secure.
• Debugging: After installation, conduct initial debugging to ensure the module operates normally.

Maintenance:

• Regular inspection: Regularly check the connections and operating status of the module to ensure there is no loosening or damage.
• Cleaning: Keep the module clean to prevent dust and dirt from affecting performance.
• Fault diagnosis: Use remote diagnostic tools for fault diagnosis to detect and solve problems in a timely manner.
• Replacement of spare parts: If the module is found to be damaged, replace the spare parts in a timely manner to ensure the normal operation of the system.

————————————————————————————————-
