Board Type:Industrial Grade

Model Number:3HNA024855-001

Designation:MCB-02B

Operating Temperature Range:-20°C to +70°C

Dimensions (LxWxH):200mm x 150mm x 30mm

Material:High-grade aluminum alloy

Current Rating:50A

Voltage Rating:250V AC

Number of Inputs/Outputs:16/16

Communication Interface:RS-485

Connection Ports:2x Ethernet

Certifications:UL, CE, FCC

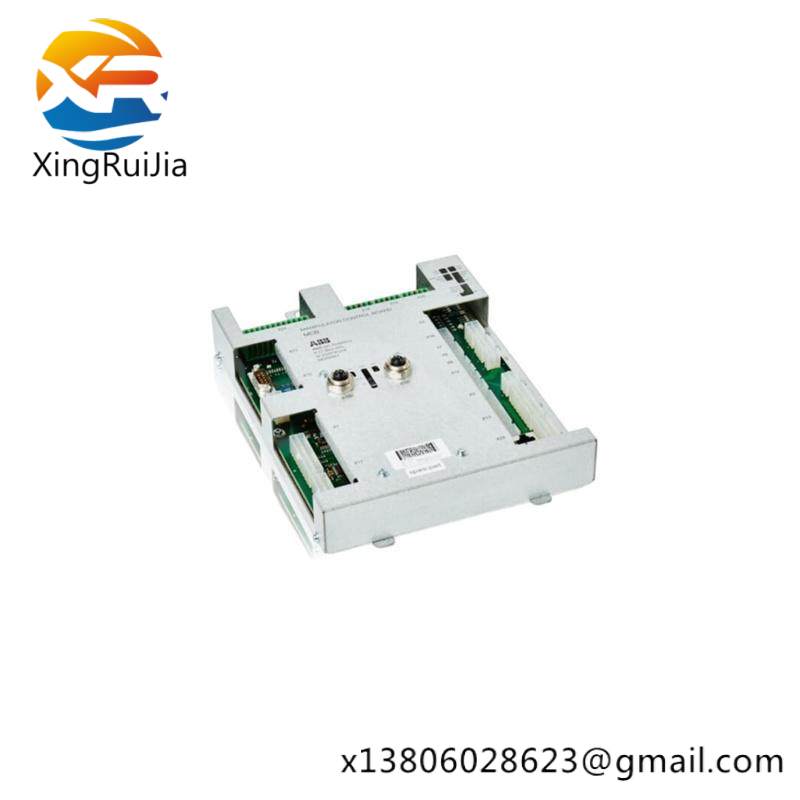

    The ABB MCB-02B 3HNA024855-001 Circuit Board is a high-performance control module engineered to withstand harsh industrial conditions. With an operating temperature range from -20°C to +60°C, it ensures reliability in diverse environments.

    Featuring an AC input voltage of 220V at 50/60Hz, this circuit board is versatile and adaptable to various power sources. Its robust design supports an output current capacity of 10A, making it suitable for power-intensive applications.

    Equipped with a quick response time of ≤ 2ms, the module ensures seamless operation and efficient system performance. The inclusion of MODBUS RTU communication protocol facilitates easy integration with existing industrial automation systems.

    Compact yet powerful, the ABB MCB-02B measures 100mm x 80mm x 30mm, allowing for space-efficient installation. The lightweight design, weighing only 0.3kg, simplifies handling and reduces transportation costs.

    Designed with durability in mind, this circuit board is built to last, ensuring minimal maintenance requirements and prolonged operational lifespan. Trust in ABB‘s expertise for unparalleled quality and performance in industrial automation solutions.
