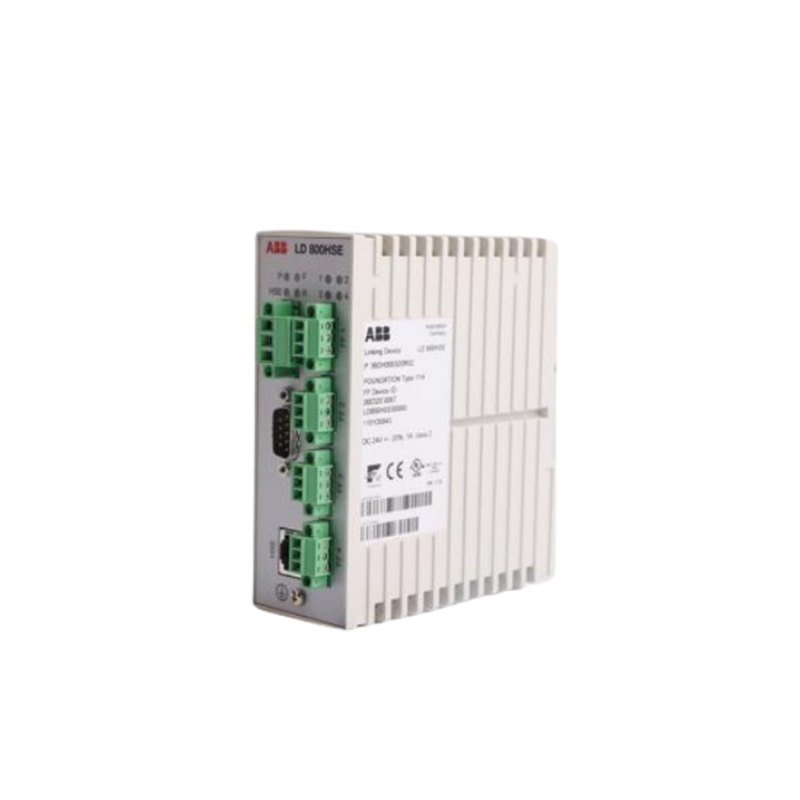

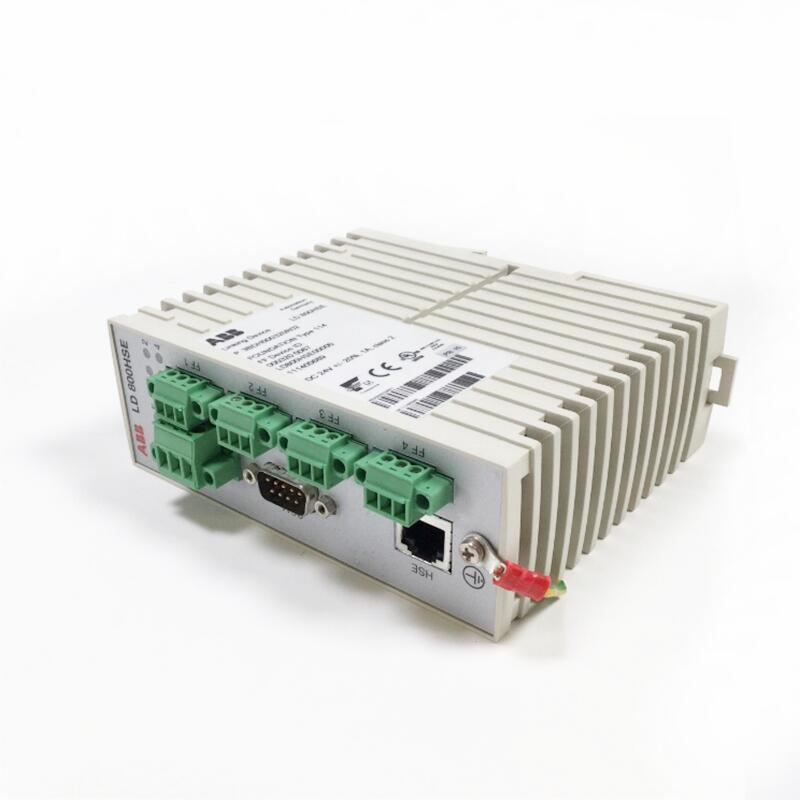

ABB LD800HSE
I. Overview
The ABB LD800HSE is a FOUNDATION Fieldbus (FOUNDATION Fieldbus)-based High-Speed Ethernet (HSE) to H1 linking device, designed to connect FF networks and HSE networks. It serves as a gateway between the FF High-Speed Ethernet (HSE) subnetwork and H1 devices, enabling seamless connection and data exchange between devices. In addition, the LD800HSE is also an 8-channel analog output module for the ABB Ability System 800xA control system. It can convert digital signals from the control system into analog signals and output them to external devices such as actuators and indicators. This module belongs to ABB’s Advant 800xA series, which is part of its automation system, and boasts advantages like high reliability, high performance, flexibility, and modular design.
II. Parameters
- Model: LD800HSE 3BDH000320R0101 or 3BDH000320R02
- Power supply: 24V DC
- Communication methods: Ethernet, RS485, H1 bus interface
- Input: 8 digital inputs, 4 analog inputs
- Output: 6 digital outputs, 2 analog outputs
- Dimensions: 150mm x 131mm x 111mm (some data sources indicate 47 x 131 x 111 mm)
- Operating temperature range: -20°C to +70°C (some data sources indicate -40°C to +85°C)
- Protection class: IP20
- Communication protocols: Supports Modbus TCP/IP, Ethernet/IP, PROFIBUS DP, and DeviceNet
- Storage space: 256MB
III. Product Features
- High precision and reliability: Adopts advanced sensor technology and digital processing, featuring high precision, high stability, and high reliability.
- Versatility: Supports multiple communication protocols including Ethernet, RS485, H1 bus, etc., facilitating integration with different control systems.
- Redundant configuration: Supports redundant mode, with two LD800HSE connected via a serial redundant link to ensure high system availability.
- Flexible configuration options: Supports various configuration options, making it easy to integrate into existing networks.
- Modular design: Facilitates expansion and maintenance, suitable for various industrial automation control systems.
- Built-in diagnostic function: Provides built-in diagnostic functions, allowing for easy troubleshooting and system integrity checks.
IV. Structure and Composition
The ABB LD800HSE consists of multiple modules, including:
- Input/output module: Used to connect various field devices and sensors, supporting digital input/output and analog input/output.
- Communication module: Supports multiple communication protocols such as Ethernet, RS485, H1 bus, etc., ensuring data exchange between different control systems.
- Power module: Provides a stable 24V DC power supply to ensure the normal operation of the device.
- Control module: Equipped with a high-performance processor to support fast data processing and response.
- Display module: Features a 7-inch TFT display for operators to view system status.
V. Application Fields
The ABB LD800HSE is widely used in the following fields:
- Industrial process control and automation systems: Used for liquid and gas pressure monitoring and control, as well as monitoring and protection of pump stations and pressure vessels.
- Energy industry: Used in oil and gas extraction, petrochemical production, and power stations, etc.
- Environmental monitoring and governance systems: Used in water treatment, sewage treatment, etc.
- Power industry: Applied in power control systems, power monitoring systems, and other fields.
- Petrochemical industry: Used in chemical process control, chemical equipment monitoring, and other fields.
- Manufacturing industry: Applied in production automation control, equipment monitoring, etc.
- Building automation: Used in smart buildings, etc.
VI. Installation and Maintenance
- Installation method: Usually provides rack mounting or panel mounting configurations, facilitating installation on DIN rails.
- Installation steps:
- Hardware installation: Mount the device on the DIN rail and ensure it is firmly fixed.
- Communication settings: Configure communication protocols and IP addresses to ensure communication with the host computer.
- System integration: Integrate the device into the existing control system to ensure real-time data transmission.
- Maintenance:
- Regular inspection: Regularly check the operation status of the device to ensure its normal operation.
- Fault diagnosis: Use the built-in diagnostic function to quickly locate and resolve faults.
- Software update: Regularly update the device’s firmware to improve system stability and security.
- Environmental requirements: Ensure the device operates within the appropriate temperature and humidity range to avoid faults caused by environmental factors.
————————————————————————————————-
