ABB KUC755AE117
I. Overview

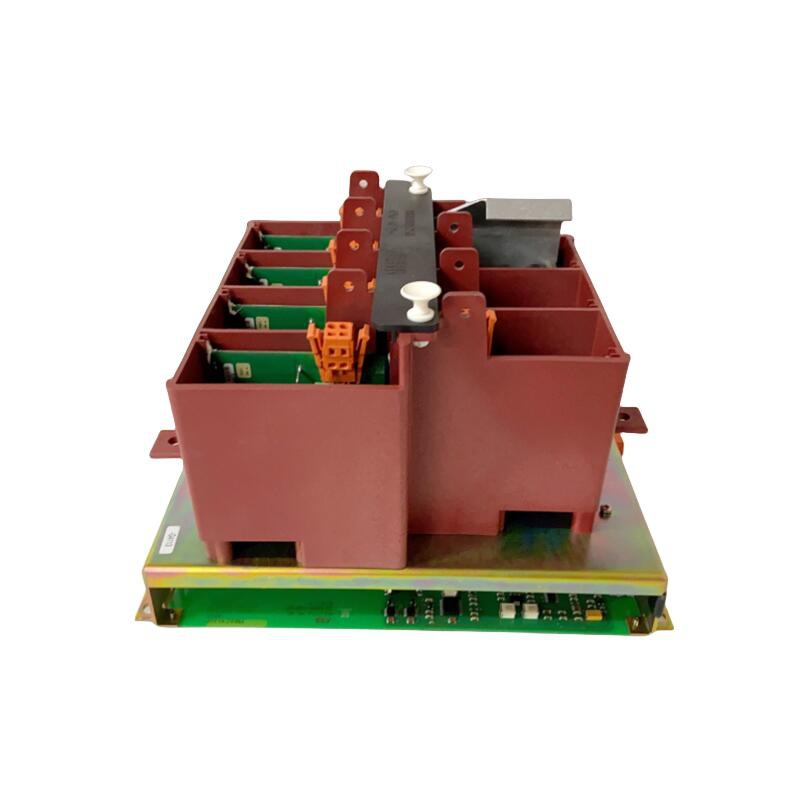

ABB KUC755AE117 is a high-performance drive controller module launched by ABB, belonging to the ABB AC6000 series. It is specifically designed for industrial automation systems. This module is mainly used to control the power output of drives, ensuring that motors operate smoothly according to instructions. It is widely applied in fields such as wind power, mining, metallurgy, water treatment, industrial automation, power system generation, and process industry. As an industrial-grade controller with a modular design, it features high reliability, high precision, and support for multiple communication protocols.
II. Parameters
The main parameters of ABB KUC755AE117 are as follows:
- Model: KUC755AE117
- Function: Pilot drive controller
- Input voltage: 24V DC (220V AC or 24V DC mentioned in some documents)
- Output voltage: 0~10V DC
- Rated current: 5A (75A or 20A mentioned in some documents)
- Operating temperature range: -25°C to +70°C (-40°C to +85°C mentioned in some documents)
- Operating humidity: 5% to 95% relative humidity (non-condensing)
- Dimensions: 75mm x 55mm x 117mm (10cm x 5cm x 2cm or 115 x 70 x 40 mm mentioned in some documents)
- Weight: 0.5 kg (100g or 75g mentioned in some documents)
- Communication interfaces: Supports PROFIBUS, MODBUS, and Ethernet
- Protection class: IP20 or IP65 (IP67 mentioned in some documents)
III. Product Features
ABB KUC755AE117 has the following product features:
- High performance: Adopts advanced control algorithms to provide high-precision motor control, suitable for complex industrial environments.
- Modular design: Supports flexible expansion and is easy to integrate into existing systems.
- Support for multiple communication protocols: Compatible with various communication protocols such as PROFIBUS, MODBUS, and Ethernet, facilitating integration with the main system.
- High reliability: Uses industrial-grade materials and design to ensure stable operation in harsh environments.
- Easy installation and maintenance: Compact structure, convenient installation, and simple maintenance.
- Multiple protection functions: Equipped with overcurrent, overvoltage, undervoltage, short-circuit, and other protection functions to ensure safe operation of the system.
- User-friendly interface: Provides intuitive configuration tools for easy setup and use by users.
IV. Structure and Composition
ABB KUC755AE117 adopts a modular design, mainly consisting of the following parts:
- Control unit: Responsible for processing control signals and executing control logic.
- Input/output interfaces: Provide digital and analog input/output interfaces for connecting external devices.
- Communication interfaces: Support multiple communication protocols such as PROFIBUS, MODBUS, and Ethernet.
- Power module: Provides stable power supply to ensure the normal operation of the module.
- Heat dissipation system: Adopts air cooling or natural cooling to ensure stable operation of the module under high load.
V. Application Fields
ABB KUC755AE117 is widely used in the following fields:
- Industrial automation: Used to control motors, conveyors, robots, and other equipment.
- Wind power: Applied in the excitation and control of wind turbine generators.
- Mining: Used for the drive and control of mining equipment.
- Metallurgy: Employed for precise control of metallurgical equipment.
- Water treatment: Used for automatic control of water treatment equipment.
- Power systems: Applied in the excitation and control of generator sets.
- Process industry: Used for automatic control in chemical, pharmaceutical, and other industries.
- Building automation: Employed for controlling HVAC systems.
- Mechanical processing: Used to control CNC machine tools, robots, and other equipment.
VI. Installation and Maintenance
The installation and maintenance of ABB KUC755AE117 are as follows:
- Installation methods: Supports rail mounting, wall-mounted installation, or rack mounting.
- Installation steps:
- Preparation: Ensure the installation environment meets technical specifications such as temperature, humidity, and power supply.
- Install the module: Fix the module on the rail or rack to ensure a secure installation.
- Connect cables: Connect power, input/output signals, and communication interfaces according to the wiring diagram.
- Configure parameters: Set the module’s parameters such as control mode and communication protocol through software or configuration tools.
- Test operation: Start the system and test the operation status and functions of the module.
- Maintenance recommendations:
- Regularly check the connections and operation status of the module.
- Clean the surface of the module to prevent dust accumulation.
- Check the tightness of power and communication interface connections.
- Regularly update software and firmware to ensure the latest functions and security of the module.
- Record the operating data of the module to facilitate troubleshooting and performance optimization.
————————————————————————————————-
