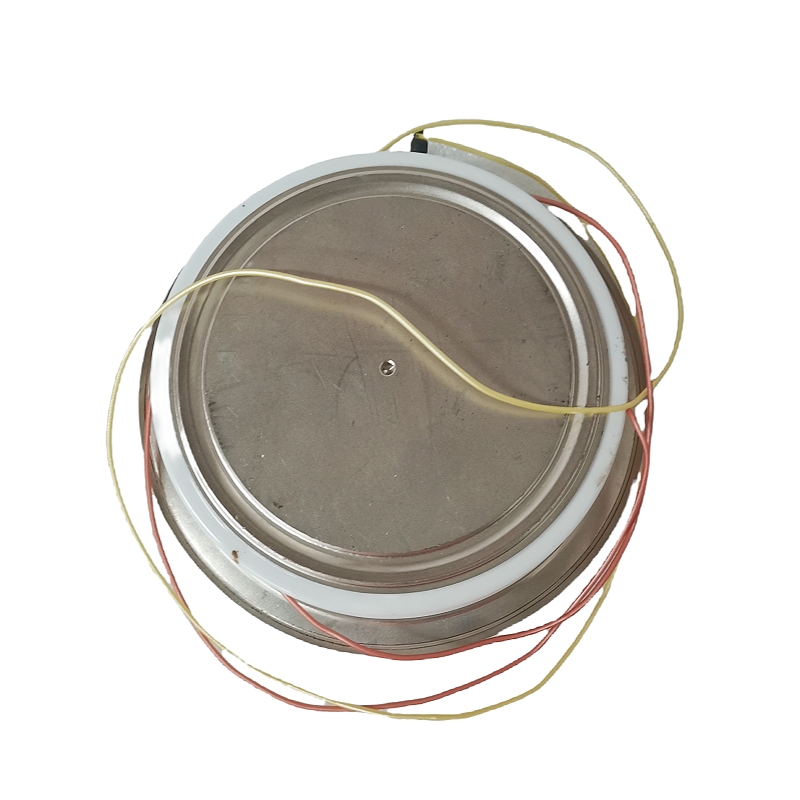

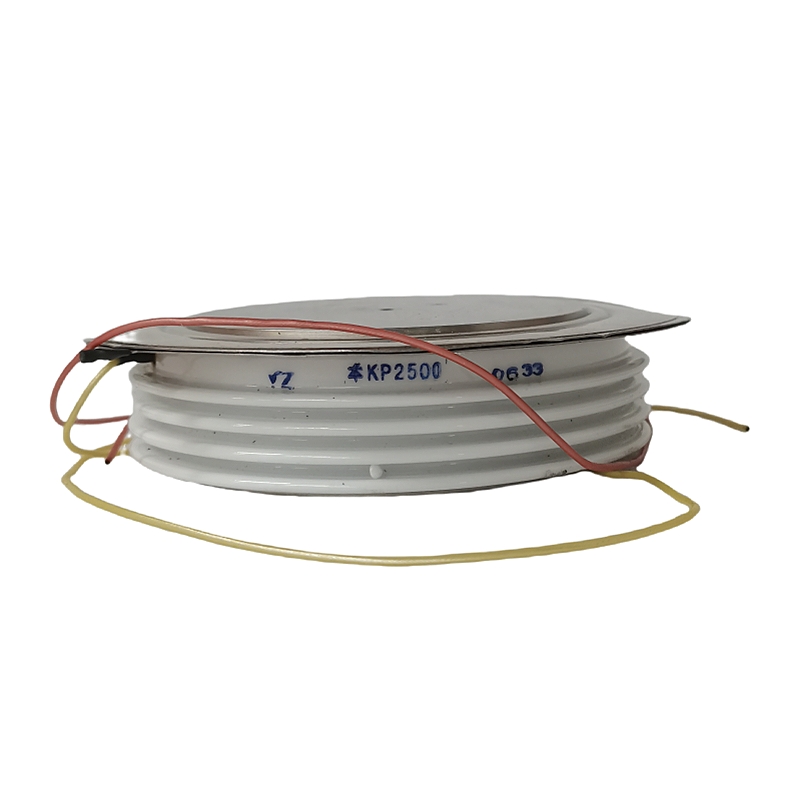

ABB KP2500
I. Overview
ABB KP2500 is a high-performance power electronic device, generally classified as a thyristor module. It is widely used in power systems for precise control of AC circuits. This product features high reliability, high precision, and controllability, capable of withstanding high voltage and high current, making it suitable for various environments and working conditions.
II. Parameters
The main parameters of ABB KP2500 include:
The main parameters of ABB KP2500 include:
- Rated Current: 2500A
- Rated Voltage: 400V
- Pole Number: 3
- Short-circuit Withstand Capacity: 70kA
- Dimensions: 2000mm x 1200mm x 600mm
- Weight: 500kg
- IP Rating: IP54
- Operating Temperature: -5°C to 40°C
III. Product Features
The main features of ABB KP2500 are as follows:
The main features of ABB KP2500 are as follows:
- High Reliability: Adopts advanced power electronics technology and materials, with excellent performance and reliability.
- High Power: Capable of withstanding high voltage and high current, suitable for high-power applications.
- Fast Response: Fast response speed, able to quickly adapt to load changes.
- Easy to Control: Precise control of output power can be achieved through control trigger signals.
- Modular Design: Facilitates users to expand and upgrade according to actual needs.
- Rich Communication Interfaces: Supports multiple communication interfaces such as Ethernet and RS232/RS485, facilitating data exchange with other devices and systems.
IV. Structure and Composition
The structure of ABB KP2500 usually includes the following parts:
The structure of ABB KP2500 usually includes the following parts:
- Silicon Chips: The core components of the thyristor, responsible for conduction and shutdown.
- Metal Substrates: Used for heat dissipation and mechanical support.
- Lead Wires: Connect to external circuits.
V. Application Fields
ABB KP2500 is widely used in the following fields:
ABB KP2500 is widely used in the following fields:
- Power Systems: For reactive power compensation, electric drive, static var compensation, etc.
- Industrial Automation: For variable frequency speed control systems, arc furnaces, heating furnaces, etc.
- New Energy: For power conversion in systems such as photovoltaic power generation and wind power generation.
- Industrial Facilities: For controlling and protecting various industrial equipment such as transformers, motors, generators, etc.
- Commercial Buildings: For power distribution systems to ensure stable power supply.
- Data Centers: For power distribution and protection in data centers.
- Manufacturing Industry: For controlling robots, machine tools, and other manufacturing equipment.
VI. Installation and Maintenance
The following points should be noted for the installation and maintenance of ABB KP2500:
The following points should be noted for the installation and maintenance of ABB KP2500:
- Installation: Ensure the installation environment meets the product’s operating temperature and humidity requirements; avoid use in humid or high-temperature environments.
- Maintenance: Regularly check the device’s connections and operating status to ensure normal operation. Clean the device surface to prevent dust and dirt from affecting its performance.
- Fault Handling: If the device malfunctions, contact professional technicians promptly for inspection and maintenance to ensure the device operates normally.
————————————————————————————————-
