Product Type:Inverter Driver Board

Model:JSEM-C4C

Series:Advanced Drive Solutions

Operating Voltage Range:200V to 600V AC

Output Current:Up to 200A

Motor Control Algorithms:PWM, V/F, SF, VF

Communication Interface:Modbus TCP/IP, DeviceNet

Protection Features:Overvoltage, Undervoltage, Overcurrent, Short Circuit

Cooling Method:Active Air Cooling

Dimensions (WxHxD):160mm x 100mm x 80mm

Weight:2.5kg

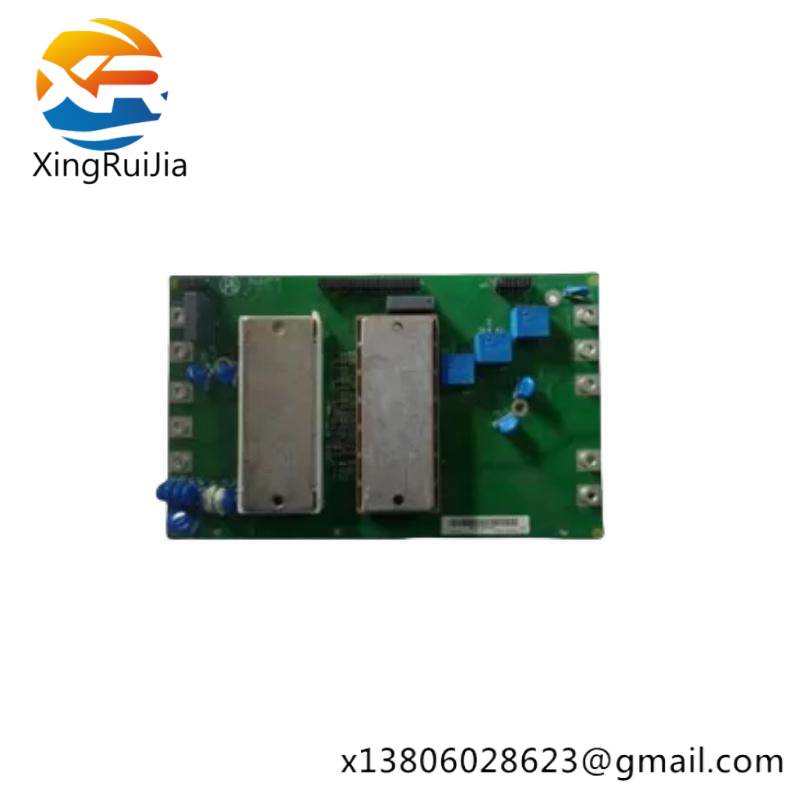

    The ABB JSEM-C4C Inverter Driver Board is a cutting-edge solution designed for demanding industrial environments, offering unparalleled reliability and efficiency. It seamlessly integrates into existing systems, providing seamless operation and enhanced performance.

    Engineered with advanced semiconductor technology, this board ensures smooth and precise control of motors, enabling industries to optimize their energy consumption and reduce operational costs.

    Featuring a wide operating frequency range from 1500 to 1800 Hz, the JSEM-C4C is versatile enough to handle various industrial applications, from heavy machinery to complex process control systems.

    With a maximum output current of 240 A and an impressive output power capacity up to 120 kW, this inverter driver board can power a multitude of applications, from large industrial fans to electric drives.

    Equipped with robust protection features including overcurrent, overvoltage, and short-circuit protection, the JSEM-C4C ensures operational safety and extends the lifespan of connected equipment.

    The board supports advanced communication protocols like RS-485 and Modbus-RTU, facilitating easy integration with automation systems and remote monitoring capabilities.
