Product Type:Output Module

Brand:ABB

Model:IMDSI12

Designation:Bailey

Power Supply Voltage:24V DC

Current Capacity:Max. 1 A per channel

Number of Channels:16

Communication Interface:RS-485

Operating Temperature Range:-25°C to +70°C

Dimensions (DxHxW):75mm x 100mm x 50mm

Weight:0.2kg

Certifications:[“CE”,”UL”,”CSA”]

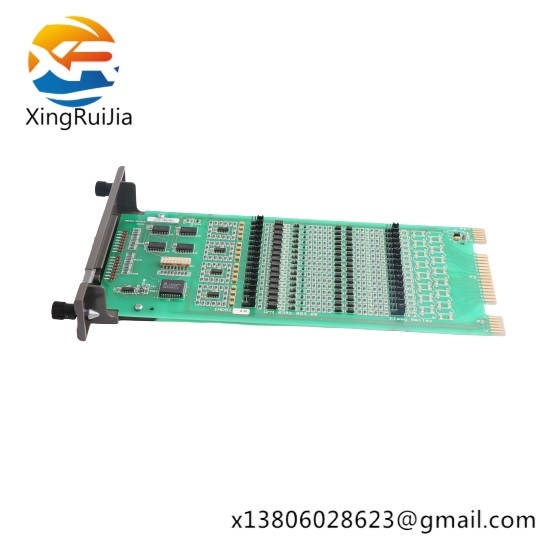

    The ABB IMDSI12 Bailey Output Module is engineered to withstand harsh industrial environments, ensuring dependable performance even under extreme conditions. Its modular design allows for easy installation and configuration within existing automation systems.

    Equipped with 12 independent SPST relay channels, this module provides versatile control capabilities suitable for a wide range of applications, from simple on/off switching to more complex control scenarios involving motor speed adjustments or state monitoring.

    With a robust power handling capacity of up to 10A at 250V AC per channel, the ABB IMDSI12 Bailey Output Module can drive heavy loads efficiently, making it a preferred choice for applications requiring high-power outputs.

    Featuring Modbus RTU protocol compatibility, the module seamlessly integrates with a variety of automation systems, allowing for seamless communication and control through industry-standard interfaces.

    Designed with a compact footprint of 125mm x 104mm x 101mm and a stainless steel casing with an IP20 protection rating, the ABB IMDSI12 Bailey Output Module ensures not only reliability and efficiency but also durability and safety in industrial settings.
