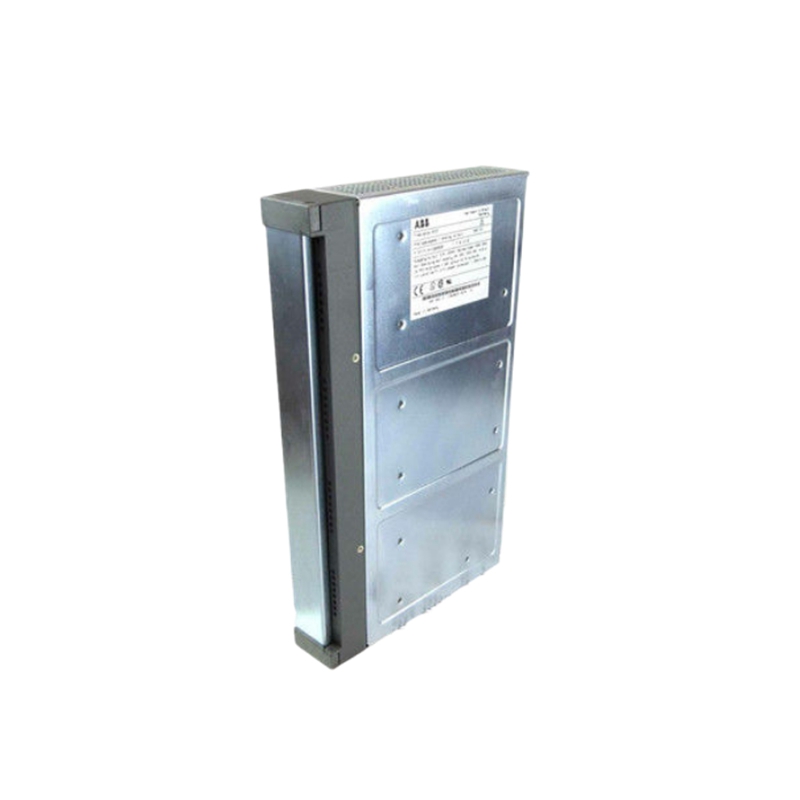

ABB IMASM01

I. Overview

II. Parameters

• Dimension: 160x85x125mm
• Weight: 1.2kg
• Mounting Method: 35mm DIN rail mounting
• Protection Level: IP20
• Input Voltage: Typically 110-240V AC
• Output Voltage: 24V DC
• Output Current: 1A
• Operating Temperature: -40℃~+70℃
• Compatibility: Compatible with a wide range of industrial systems and equipment
• Scalability: Can be expanded to adapt to small to large-scale operations
• Connectivity: Provides seamless integration with existing infrastructure and communication protocols
• Communication Protocols: Ethernet, Modbus, OPC, etc.
• Software Compatibility: Supports mainstream operating systems and industrial automation software

III. Product Features

• High Reliability: The module adopts advanced power management technology to deliver efficient and stable power output, meeting system requirements.
• Wide Voltage Input Range: IMASM01 supports a wide range of voltage inputs, adapting to different power environments and ensuring stable system operation.
• Compact Design: With a compact structure, it is easy to install and use.
• Strong Anti-Interference Ability: Maintains good performance in various harsh industrial environments.
• Easy Integration: Compatible with a wide range of industrial systems and equipment, and can be expanded to meet different operational needs.

IV. Structure and Composition

• Power Module: Responsible for converting input voltage into stable output voltage.
• Control Circuit: Used to regulate and control power output, ensuring its stability and reliability.
• Protection Circuit: Includes overvoltage, undervoltage, overcurrent, and other protection functions to ensure the module operates safely under abnormal conditions.
• Housing: Adopts IP20 protection level, providing certain dust and moisture resistance.

V. Application Fields

• Robotics: Provides stable power support for robot systems.
• Automated Production Lines: Used in control systems of automated production lines to ensure the continuity and stability of the production process.
• Conveyor Belt Systems: Provides reliable power supply for conveyor belt systems to ensure their normal operation.
• Other Industrial Equipment: Such as elevators, parking systems, automotive manufacturing, food processing, glass industry, construction machinery, etc.

VI. Installation and Maintenance

Installation Method

Installation Steps

1. Prepare the installation location: Ensure the installation location has sufficient space and ventilation conditions.
2. Install the module: Mount the module on the rail and fix it firmly.
3. Connect the power supply: Connect the input power to the module’s input port.
4. Test operation: Start the system and check whether the module’s output voltage and current meet expectations.

Maintenance Suggestions

• Regular Inspection: Regularly check the module’s connections and operating status to ensure normal operation.
• Cleaning and Maintenance: Keep the module clean to prevent dust and dirt from affecting its performance.
• Software Update: Regularly update the module’s firmware and software as recommended by ABB to ensure optimal performance.
