ABB IEPAF02
I. Overview

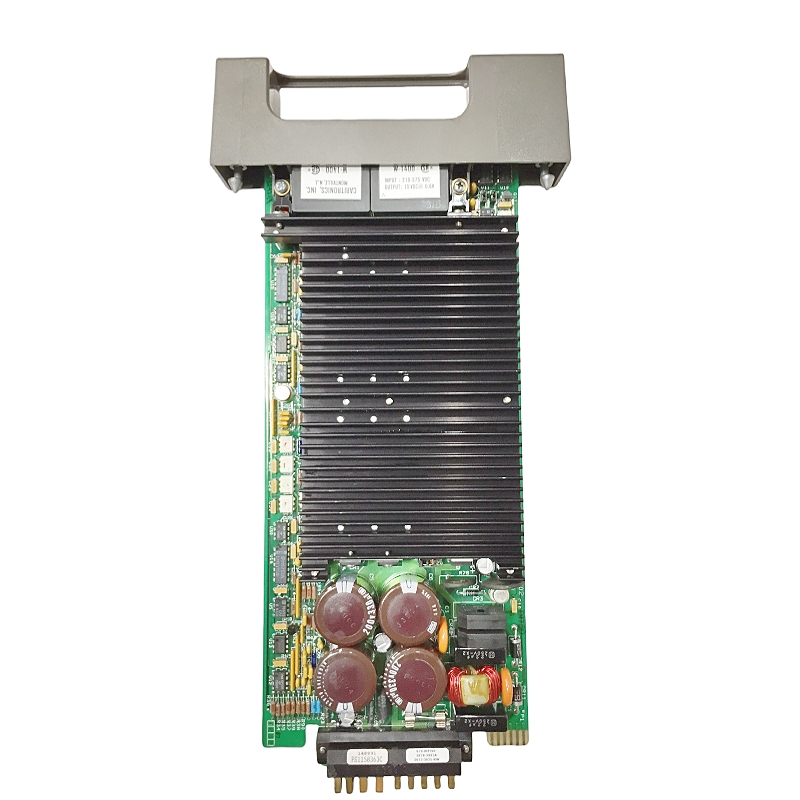

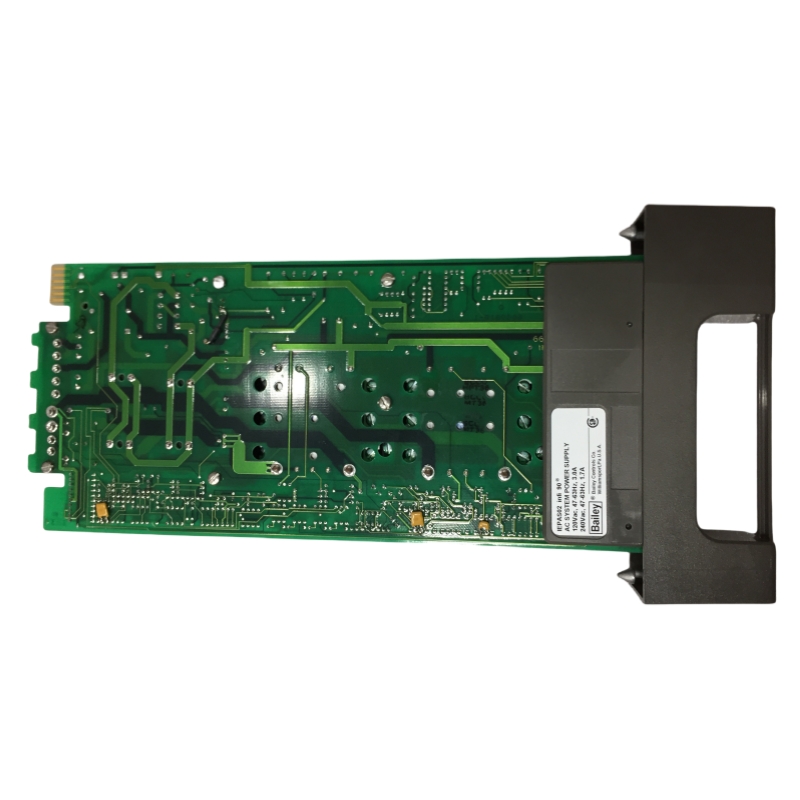

The ABB IEPAF02 is an AC power module in the Bailey Infi 90 system, providing power support for components within the system. It replaces the old models IEPAS01 and IEPAF01 as a compatible alternative. This module supplies +24 VDC voltage, meeting the power supply requirements of field devices. Like the IEPAS02, the IEPAF02 features enhanced design and performance, making it suitable for various industrial automation scenarios.
II. Parameters
- Input voltage range: The input voltage range of the IEPAF02 is 210V to 375V AC, adapting to different power supply conditions.
- Output voltage: The IEPAF02 provides +24 VDC voltage, suitable for powering field devices.
- Operating temperature range: -20°C to +60°C.
- Dimensions: Not explicitly mentioned, but based on the dimensions of related modules, it is to be similar to the IEPAS02.
- Installation method: The IEPAF02 is usually installed in the IEPMU02 power mounting unit, supporting front or rear mounting.
III. Product Features
- High reliability: Adopts advanced design and high-quality electronic components to ensure stable operation in harsh industrial environments.
- Easy integration: Equipped with standard interfaces and communication protocols, facilitating integration with other devices and systems.
- Scalability: Supports multiple configurations and expansion options to meet the needs of different industrial automation systems.
- Versatility: Comes with multiple communication interfaces and supports various communication protocols, promoting data communication with other devices and systems.
- Compatibility: The IEPAF02 is compatible with the IEPAS02 and can replace old model modules, reducing the cost and complexity of system upgrades.
IV. Structure and Composition
The ABB IEPAF02 adopts a modular design for easy installation and maintenance. Its structure includes:
- Power module: Provides +24 VDC output, suitable for powering field devices.
- Power mounting unit: Such as the IEPMU02, which is used to fix and connect the power module, providing power connection and protection.
- System power bus: Used to distribute power to other module mounting units, ensuring the stable operation of the entire system.
V. Application Fields
The ABB IEPAF02 is widely used in the following fields:
- Industrial automation control systems: Provides stable power support for devices such as PLCs, sensors, and actuators.
- Power system monitoring and control: Used for monitoring and control of power systems in power plants, substations, etc.
- Environmental monitoring and control: Used for power supply and control of environmental monitoring equipment.
- Data center equipment control: Provides reliable power support for servers, network equipment, etc. in data centers.
VI. Installation and Maintenance
Installation
- Installation method: The IEPAF02 is usually installed in the IEPMU02 power mounting unit, supporting front or rear mounting.
- Installation steps: Install according to the user manual or installation guide to ensure correct connection and fixation of the power module.
- Installation environment: The installation environment should meet the device’s operating temperature range (-20°C to +60°C) and ensure good ventilation.
Maintenance
- Regular inspection: Regularly check the connection and working status of the power module to ensure its normal operation.
- Troubleshooting: If the power module fails, refer to the user manual or contact ABB customer support for troubleshooting.
- Maintenance cycle: Formulate a reasonable maintenance cycle according to the equipment’s usage and environmental conditions to ensure long-term stable operation of the equipment.
————————————————————————————————-
