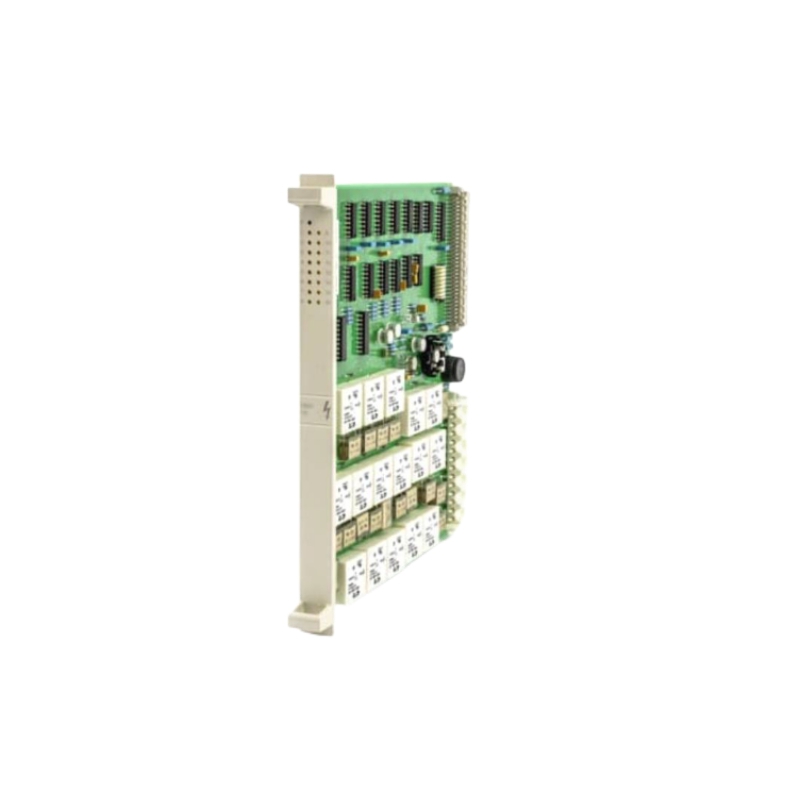

ABB ICDG32L1

1. Overview

The ABB ICDG32L1  is an input/output (I/O) module from the ABB Procontic CS31 series, primarily designed for signal acquisition and output control in industrial automation systems. This module supports multiple industrial standard protocols, making it suitable for applications requiring high reliability and flexibility in harsh industrial environments.

2. Specifications

• Model: ICDG32L1
• Version: GJR5251400R0101
• Type: Input/Output (I/O) module
• Interface: Supports industrial communication protocols such as Modbus, Profinet, and HART
• Power Supply: Typically 24V DC
• Operating Temperature: -20°C to +70°C (depending on environmental conditions)
• Protection Rating: IP20 (standard protection level)
• Dimensions: Not explicitly stated, but follows ABB’s compact design for similar modules
• Installation: Slot-mounted, compatible with the ABB Procontic CS31 control system

3. Key Features

• High Reliability: Designed for demanding industrial environments, ensuring stable performance.
• Flexible Configuration: Supports multiple I/O configurations (digital/analog input/output) for customized solutions.
• Strong Compatibility: Integrates seamlessly with other modules and controllers in the ABB Procontic CS31 series.
• Easy Maintenance: Modular design simplifies installation and replacement, minimizing downtime.
• Multi-Protocol Support: Includes Modbus, Profinet, and HART, enabling communication with diverse industrial devices.

4. Structure and Components

• Housing: Metal casing for enhanced electromagnetic interference (EMI) resistance.
• Circuit Board: Equipped with multiple I/O interface circuits for digital signal processing.
• Terminals: Multiple connection points for sensors, actuators, and other field devices.
• Interface Modules: Supports RS232, RS485, and Ethernet for communication with host systems or networks.
• Power Module: Typically paired with ABB power modules for stable operation.

5. Applications

• Industrial Automation: Signal acquisition and control in ABB Procontic CS31 systems.
• Process Industries: Oil & gas, power generation, and metallurgy for process monitoring.
• Machinery Manufacturing: Automation of production lines (e.g., CNC machines, conveyors).
• Building Automation: Control of HVAC, lighting, and other building systems.
• Energy Management: Monitoring and control in substations and power plants.

6. Installation and Maintenance

Installation:

• The ICDG32L1 is slot-mounted into the ABB Procontic CS31 controller.
• Ensure power and communication interfaces are pre-configured before installation.
• Follow anti-static precautions to prevent module damage.

Maintenance:

• Regularly inspect terminals and interfaces for stable signal transmission.
• Clean the housing to prevent dust accumulation and overheating.
• Replace faulty modules with the same model (ICDG32L1). Refer to ABB’s user manual or contact ABB Technical Support for assistance.
