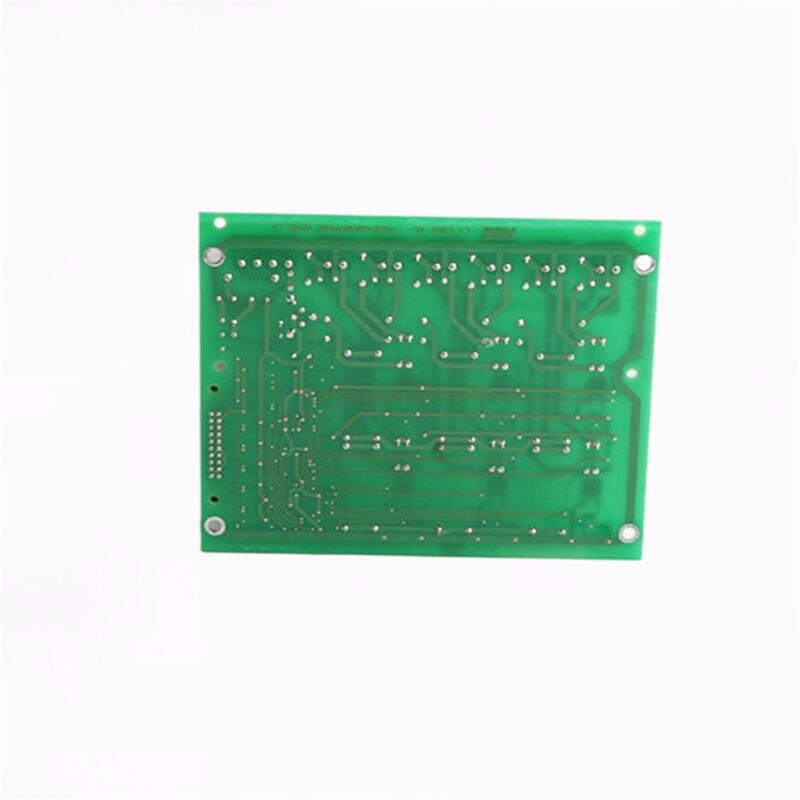

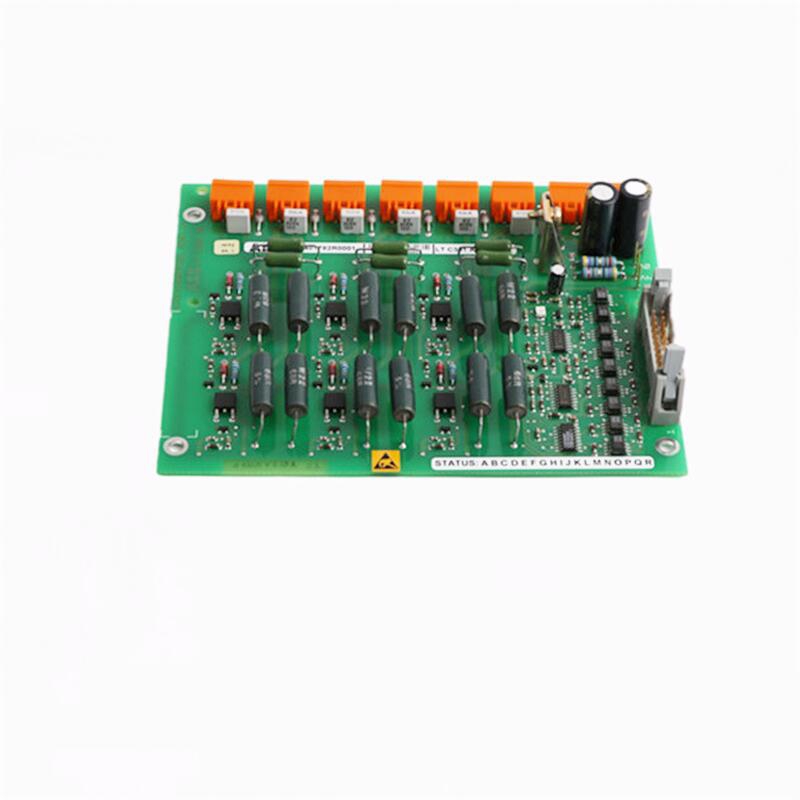

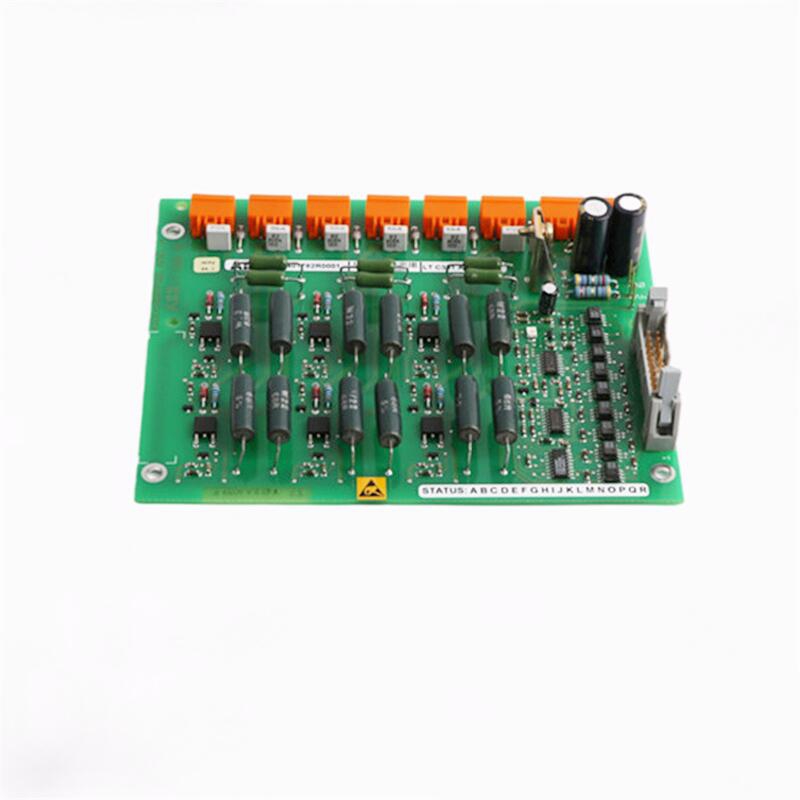

ABB HIEE401782R0001 LTC391AE01

I. Overview

II. Parameters

• Input voltage range: 24V DC (some evidence shows it supports a wider range, such as 12V to 24V or 0V to 1kV).
• Output current: up to 4A maximum.
• Operating temperature range: -40°C to +85°C.
• Protection class: IP65.
• Dimensions: 72 x 72 x 40 mm.
• Weight: 0.5 kg.
• Communication interfaces: built-in four Ethernet interfaces (two of which are programmable), supporting protocols such as Modbus, CANopen.
• Rated power: 96W.
• Efficiency: up to 95%.

III. Product Features

• High reliability: Uses high-quality materials and advanced manufacturing processes to ensure long-term stable operation.
• High-precision measurement: Capable of high-precision voltage and current measurement.
• Fast response time: The response time of analog input/output is less than 2ms, and the response time of digital input/output is less than 1ms.
• Integration of multiple functions: Supports automatic configuration and device discovery, simplifying the system integration process.
• Rugged and durable: Designed for harsh factory environments to ensure data integrity.
• High compatibility: Supports multiple communication protocols and can communicate with PLCs and other control cabinet components of different brands.
• Easy to install and use: Features a compact structure and user-friendly interfaces, facilitating installation and operation for users.

IV. Structure and Composition

• Core chip: LTC391AE01, provided by Linear Technology.
• Communication interfaces: built-in four Ethernet interfaces, two of which are programmable.
• Power management module: Provides stable power supply and supports a variety of input voltage ranges.
• Signal processing module: Supports the input and output of analog and digital signals.
• Protection functions: Including overvoltage, overcurrent, and temperature protection.

V. Application Fields

• Industrial automation: Used to control and monitor industrial equipment, improving production efficiency.
• Control systems: Serves as an interface module to realize communication and control between devices.
• Robotics: Used for signal processing and communication in robot control systems.
• Power generation: Used for control and monitoring in power generation systems.
• HVDC circuit breaker control: Used for circuit breaker control in high-voltage direct current (HVDC) transmission systems.
• Reactive power compensation controllers: Used for reactive power compensation in low-voltage control systems.
• Motor frequency converters: Used to control the variable frequency speed regulation of motors.
• Digital intelligent temperature transmitters: Used for temperature measurement and control.

VI. Installation and Maintenance

1. Install the product in a suitable location.
2. Connect the product to the power supply.
3. Connect the product to the equipment to be controlled.
4. Turn on the power supply.
5. Use the product to control the equipment.

• Regularly check the operating status and perform maintenance.
• Pay attention to the operating environment to improve performance.
• If any product problems are encountered, contact the manufacturer for assistance.

• Verify compatibility with the current system before installation.
• Regularly check the operating status and perform maintenance.
• Pay attention to the operating environment to improve performance.
