ABB HENF209544R0005

Processor Speed:200 MHz

Memory Size:64 MB RAM, 32 MB Flash

Operating System:IEC 61131-3 compliant

Communication Ports:RS-485, RS-232, Ethernet

Input/Output Channels:100 Input, 64 Output

Power Supply:12-48 VDC

Operating Temperature:-20°C to +70°C

Dimensions (WxHxD):145mm x 105mm x 35mm

Product Details

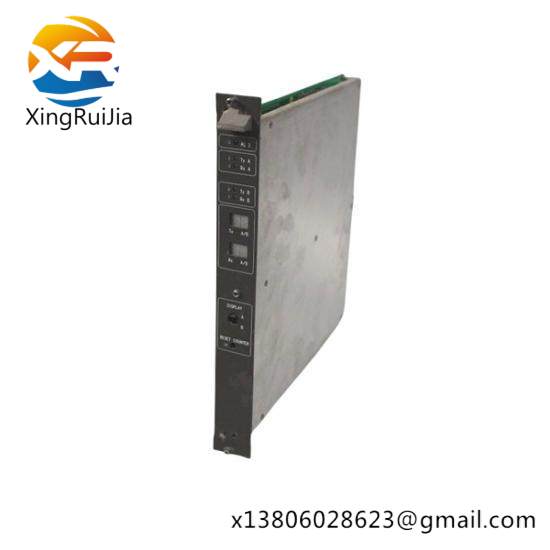

Engineered with precision for demanding industrial environments, the ABB HENF209544R0005 G4AC Control Board is the cornerstone of any sophisticated control system. It boasts an advanced microcontroller that ensures robust performance under a wide range of conditions.

Featuring a versatile operating voltage range from 24V to 60V DC, this control board is adaptable to various industrial power sources. Its operating temperature range from -20°C to +60°C makes it suitable for extreme environments, ensuring reliable operation year-round.

With integrated RS485 and Ethernet communication interfaces, the ABB HENF209544R0005 G4AC Control Board facilitates seamless data exchange with other components in the network. This enhances system efficiency and simplifies setup processes.

Optimized for energy efficiency, the control board consumes a maximum of 10W, reducing operational costs without compromising on performance. Its compact design measures 105mm x 105mm x 30mm, allowing for easy integration into space-constrained systems.

Manufactured using high-quality materials, the ABB HENF209544R0005 G4AC Control Board is built to withstand harsh industrial conditions. Its durability and reliability make it an indispensable part of any automation project.

Main Brand:

ABB    Allen-Bradley    Alstom    Bently    GE    MOOG    Schneider    Woodward    HIMA    Honeywell    Emerson    Foxboro

Annual hot selling advantage products：

ABB PM856AK01            ABB PM866                      ABB UAC317AE

ABB UAC318AE                ABB KUC720AE01          ABB 3BHB003431R0101

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons
