Module Type:HART I/O

Series:SD

Model:HAO805

Operating Temperature Range:-20°C to +70°C

Power Consumption:Max. 50 mA @ 24VDC

Communication Protocol:HART 7

Number of Inputs/Outputs:8 inputs / 8 outputs

Input Signal Range:4-20mA, 0-20mA

Output Signal Range:4-20mA, 0-20mA

Relay Contacts Rating:5A/250VAC, 2A/30VDC

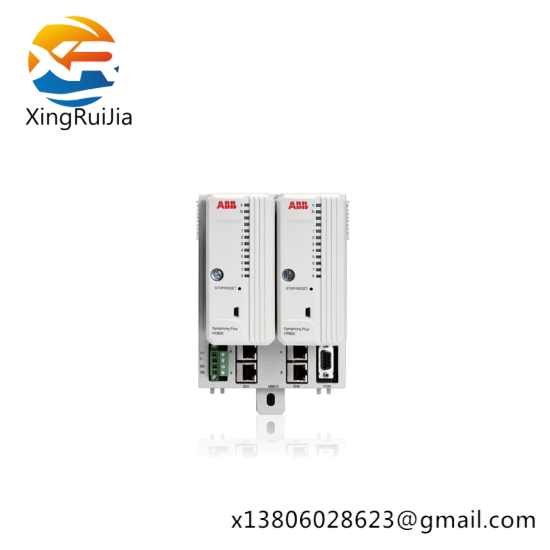

    Engineered for robust performance in harsh industrial environments, the ABB HAO805 SD Series HART I/O Module seamlessly integrates into a variety of control systems. Its advanced HART communication capability ensures precise data exchange between field instruments and control panels.

    Featuring a compact yet durable design, this module is equipped with four analog inputs and two analog outputs, making it ideal for monitoring and controlling various industrial processes. The flexibility to operate within a wide range of temperature conditions (-40°C to +70°C) guarantees reliable operation under diverse environmental challenges.

    The module supports power supply voltages from 12VDC to 28VDC, ensuring compatibility with a broad spectrum of power sources found in industrial settings. The integrated RS-485 interface facilitates efficient data transmission, enhancing system reliability and response time.

    Designed with ease of installation in mind, the ABB HAO805 SD Series HART I/O Module can be securely mounted on DIN rails, providing a clean and organized solution for wiring and maintenance. Its IP65 enclosure rating ensures protection against dust and water ingress, safeguarding the module from potential damage in industrial settings.

    Equipped with state-of-the-art technology, this module offers enhanced diagnostics and configuration options, allowing for quick setup and troubleshooting. It is compatible with leading control systems, enabling seamless integration and streamlined process control in manufacturing and other industrial sectors.
