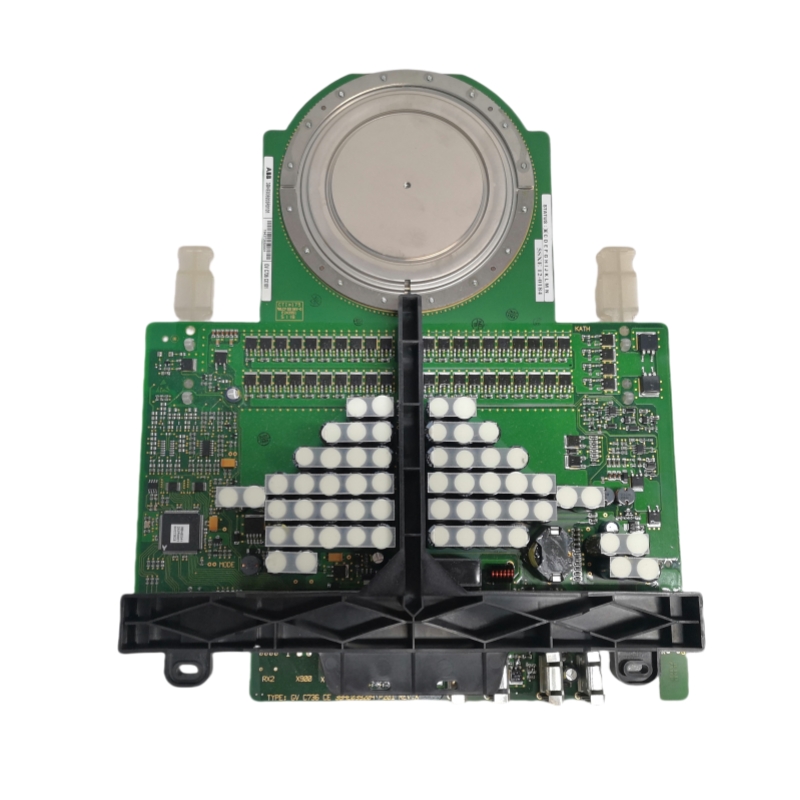

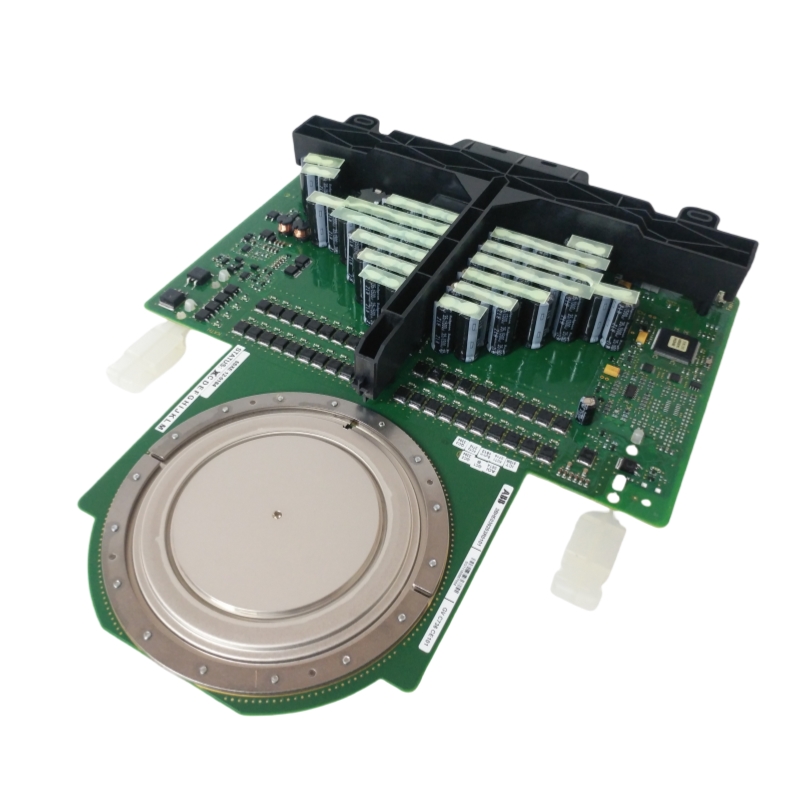

ABB GVC736CE101

I. Overview

II. Parameters

• Input voltage: 120~240V AC or 24V DC (varies according to specific models and configurations)
• Output voltage: 24V DC or 5V DC (varies according to specific models and configurations)
• Output current: up to 10A or 47A (varies according to specific models and configurations)
• Operating frequency: 50/60 Hz
• Operating temperature: -40~+70℃ or -20~+60℃ (varies according to specific models and configurations)
• Dimensions: 200×150×75 mm or 170×105×32 mm (varies according to specific models and configurations)
• Weight: 2.5 kg or approximately 120 g (varies according to specific models and configurations)
• Enclosure rating: IP20 or IP54 (varies according to specific models and configurations)

III. Product Features

• High power density: Capable of handling large currents and high power, suitable for high-power applications.
• Fast switching: Fast switching speed enables efficient power conversion.
• High reliability: Designed for industrial environments, with high reliability and durability.
• Low loss: Low conduction voltage drop and small conduction loss improve system efficiency.
• Modular design: Facilitates installation and maintenance.
• Easy to use and install: User-friendly with simple operation.
• Support for multiple communication protocols: Such as Modbus, Profibus, Ethernet, RS485, etc.

IV. Structure and Composition

• Control circuit: Responsible for processing input signals and generating control outputs.
• Power circuit: Includes IGCT modules for handling high power and high current.
• Communication interface: Supports multiple communication protocols, facilitating integration with other devices and systems.
• Protection circuit: Provides overload protection, short-circuit protection, undervoltage protection, etc., to ensure safe operation of the system.
• Enclosure: Made of metal or plastic materials with good protective performance, meeting IP20 or IP54 protection ratings.

V. Application Fields

• Industrial automation: Used to control motors, heating equipment, lighting equipment, etc., to achieve automated production.
• Robotics: Used for motion control and power management of robots.
• Manufacturing: Used for control and monitoring of production lines.
• Material handling: Used for controlling conveyors, pumps, and other equipment.
• Packaging: Used for controlling packaging machinery.
• Power systems: Used for power conversion, reactive power compensation, etc., in power systems.
• New energy: Used in new energy fields such as wind power generation and photovoltaic power generation.

VI. Installation and Maintenance

• Installation method: Usually adopts rail mounting or panel mounting, facilitating integration into industrial control systems.
• Installation steps: Install according to the user manual, ensuring that the installation environment meets the requirements for operating temperature and humidity.
• Commissioning: After installation, commissioning is required to ensure the module operates normally.
• Maintenance: Regularly check the operating status of the module to ensure it works properly. If abnormalities are found, troubleshooting should be performed in a timely manner.
• Maintenance cycle: It is recommended to conduct a comprehensive inspection every six months to ensure the long-term stable operation of the module.
