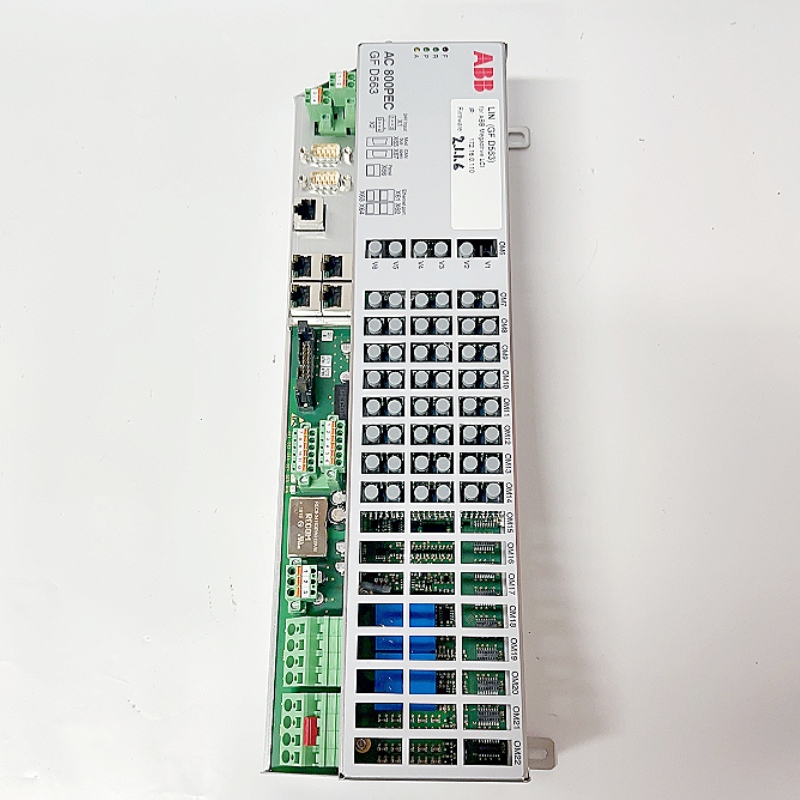

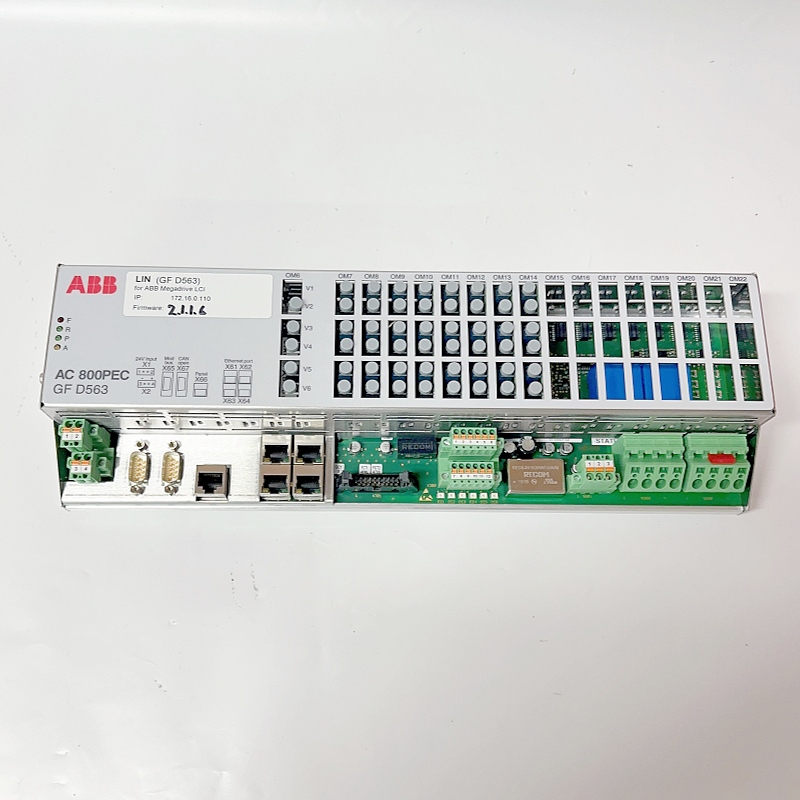

ABB GFD563A102 3BHE046836R0102

1. Overview

The ABB GFD563A102 3BHE046836R0102 is a core controller module of the ABB AC 800PEC control system, primarily used in industrial automation systems to manage various industrial processes and equipment. This module integrates high-speed and low-speed process control functions, making it suitable for diverse applications, including industrial automation, power electronics, and process control. Additionally, it can function as an Excitation Logic Controller (LCI), regulating the excitation system of synchronous generators to ensure stable operation.

2. Technical Specifications

Key parameters of the ABB GFD563A102 3BHE046836R0102 include:

• Input Voltage: Typically 24V DC, with some models supporting 85V AC to 264V AC.
• Output Voltage: 0–380V AC or 0–400V AC.
• Output Current: Maximum 10A.
• Operating Temperature Range: -20°C to +60°C.
• Protection Rating: IP20 or IP65.
• Power Supply Voltage: 24V DC.
• Communication Protocols: Supports multiple industrial communication standards, such as Modbus and CANopen.
• Mounting Method: DIN rail mounting or panel mounting.

3. Key Features

The ABB GFD563A102 3BHE046836R0102 offers the following advantages:

• High Performance: Combines high-speed control and low-speed process control for versatile applications.
• Flexible Configuration: Adaptable to different industrial automation needs.
• High Reliability: Ensures stable operation, consistent with ABB’s quality standards.
• Easy Programming: Compatible with ABB’s Control Builder M (IEC 61131-3 compliant) and supports MATLAB/Simulink and Simulink Coder.
• Modular Design: Simplifies installation, maintenance, and system expansion.
• Protection Functions: Includes overload, short-circuit, and overtemperature protection for enhanced safety.
• Smart Control: Integrates with ABB control systems for remote monitoring and intelligent automation, improving efficiency and product quality.

4. Structure & Components

The ABB GFD563A102 3BHE046836R0102 consists of:

• I/O Modules: Provides 16 digital inputs and 16 digital outputs.
• Control Unit: Supports motion control, logic control, and data acquisition.
• Communication Interfaces: Compatible with Modbus, CANopen, and other industrial protocols.
• Power Module: 24V DC input for stable operation.
• Enclosure: Aluminum alloy housing for effective heat dissipation and EMI resistance.

5. Applications

The ABB GFD563A102 3BHE046836R0102 is widely used in:

• Industrial Automation: Controls manufacturing processes and machinery.
• Power Electronics: Manages inverters, converters, and other power systems.
• Process Control: Ensures precision in chemical, oil & gas, and pharmaceutical industries.
• HVAC Systems: Optimizes fans, pumps, and compressors for energy efficiency.
• Conveyor Systems: Regulates belt conveyors, lifts, and screw feeders in logistics.
• Excitation Systems: Serves as an LCI for synchronous generator excitation control.

6. Installation & Maintenance

Installation:

• Mounts on DIN rails or panels for easy deployment in industrial environments.

Maintenance:
To ensure longevity and reliability:

• Verify power connections and grounding.
• Clean the module to prevent dust accumulation.
• Inspect communication cables and signal integrity.
• Monitor operational status to detect and resolve issues proactively.
