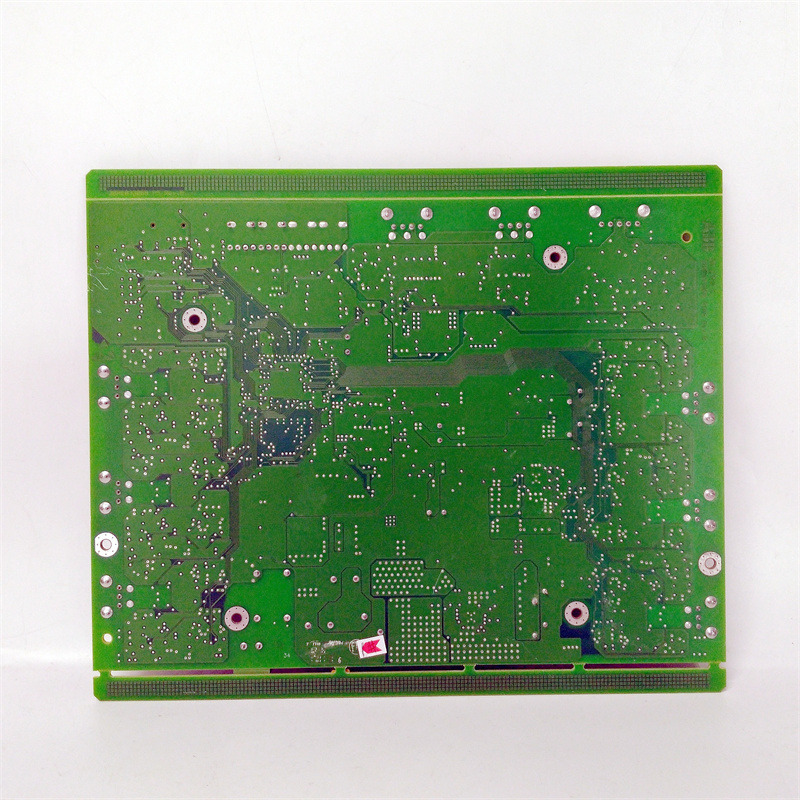

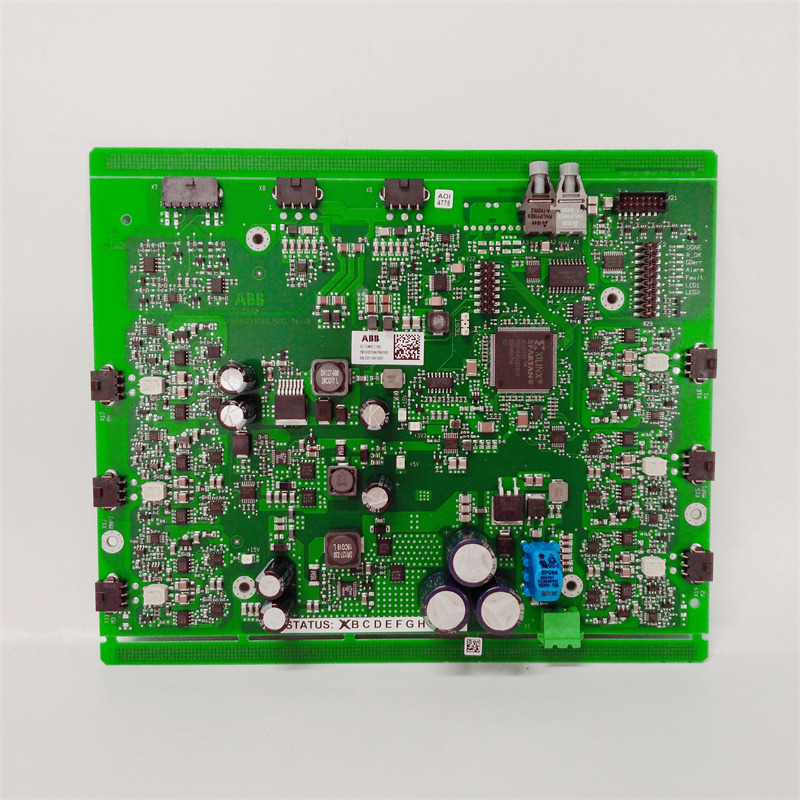

ABB GCC960C102

1. Overview

The ABB GCC960C102 is a high-performance control module developed by ABB to meet industrial automation requirements. Utilizing advanced manufacturing processes and strict quality control standards, this module ensures stable operation in various harsh working environments. Its compact design facilitates easy installation and maintenance, while its modular structure allows flexible configuration. Additionally, the product complies with multiple international certifications, guaranteeing safety and compatibility for a wide range of industrial applications.

2. Technical Specifications

Key parameters of the ABB GCC960C102 include:

• Dimensions: 150 x 150 x 80 mm (may vary slightly between versions)
• Weight: 1.5 kg (may vary slightly between versions)
• Operating Temperature: -10°C to +55°C (some versions support wider ranges)
• Power Supply: 24 V DC (some versions support 220 V AC)
• Input Ports: 20 digital inputs, 4 analog inputs, 2 PT100 inputs
• Output Ports: 16 digital outputs, 2 analog outputs
• Communication Interfaces: RS-485, Modbus RTU, Ethernet
• Processing Speed: 230 μs (may vary slightly between versions)
• Environmental Adaptability: Suitable for harsh industrial environments, including high temperature, humidity, and dust.

3. Key Features

The ABB GCC960C102 offers the following advantages:

• High Performance: Advanced control algorithms and hardware design ensure fast and precise response.
• Reliability: Rigorous quality control guarantees stable operation in complex conditions.
• Modular Design: Easy installation, maintenance, and expansion with support for multiple control modes.
• Flexibility: Compatible with CANopen, PROFIBUS, Modbus TCP, and other protocols for seamless device integration.
• Compatibility: Works efficiently with other ABB products for simplified automation system integration.
• Ease of Maintenance: Self-diagnostic and fault-indication functions simplify troubleshooting.

4. Structure and Components

The ABB GCC960C102 consists of:

• Main Control Unit: Executes control logic and processes data.
• I/O Interfaces: Includes digital/analog inputs/outputs for connecting sensors and actuators.
• Communication Module: Supports RS-485, Modbus RTU, Ethernet, etc., for device communication.
• Power Module: Provides stable power input for reliable operation.
• Thermal Design: Efficient heat dissipation ensures stability under high loads.

5. Applications

The ABB GCC960C102 is widely used in:

• Manufacturing: Automated production line control to improve efficiency and quality.
• Energy Sector: Power system regulation (e.g., precise control of pumps/fans).
• Process Control: Manages parameters (temperature/pressure/flow) in chemical/oil industries.
• Power Systems: Controls generators, transformers, and transmission lines.
• Building Automation: Integrates with lighting, HVAC, and security systems.

6. Installation & Maintenance

Installation:

• Mounts on DIN rails for easy deployment in industrial environments.
• Ensure stable power supply to prevent short circuits/overloads.

Configuration:

• Programmable via ABB software with multi-protocol support.

Maintenance:

• Self-monitoring detects issues in real-time.
• Regularly inspect wiring/connections for signal stability.

Troubleshooting:

• Use LED indicators/alerts for diagnostics; contact support if needed.

————————————————————————————————-
