Model Number:FS500R17OE4D/BGAD-21C

Brand:ABB

Manufacturer:Infineon

Power Rating:500A at 1700V

Operating Temperature Range:-40°C to +175°C

Package Size:L x W x H: 150mm x 100mm x 30mm

Weight:0.5kg

Cooling Method:Natural convection cooling

Protection Level:IP20

Input Voltage Range:DC 300V to DC 1500V

Output Current:Continuous 500A

Insulation Resistance:≥10MΩ

Switching Frequency:Up to 25kHz

Di/dt Limit:≤50kA/s

dv/dt Limit:≤12kV/μs

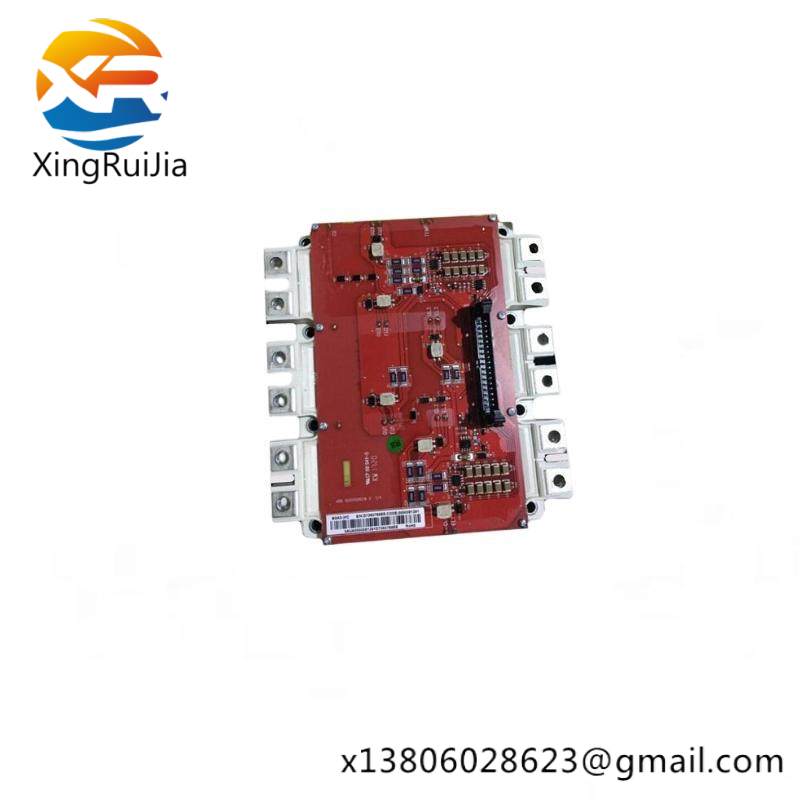

    This IGBT module from ABB is specifically engineered for use in heavy-duty industrial machinery, offering unparalleled reliability and efficiency in power conversion tasks.

    Featuring state-of-the-art technology from Infineon, it ensures superior switching performance and reduced energy loss, making it an optimal choice for demanding applications.

    The robust design incorporates advanced cooling solutions to maintain optimal operating temperatures, even under the most strenuous conditions, ensuring prolonged service life.

    Ease of integration is further enhanced with standardized interfaces and compatibility with a wide range of control systems, simplifying installation and reducing downtime.

    Designed for a broad temperature range, this module can withstand extreme environmental conditions without compromising performance, making it ideal for outdoor or industrial environments where reliability is paramount.
