Module Type:IGBT

Rated Current (A):400A

Switching Frequency (kHz):12

Package Size:KE3

Operating Temperature Range (-°C to +°C):-40°C to +175°C

Cooling Method:Thermal Pad and Screwed Heat Sink

Insulation Resistance (MΩ):≥500 at 500V DC

Electrical Life (Switching Operations):Over 100 million

Mechanical Life (Switching Operations):Over 500,000

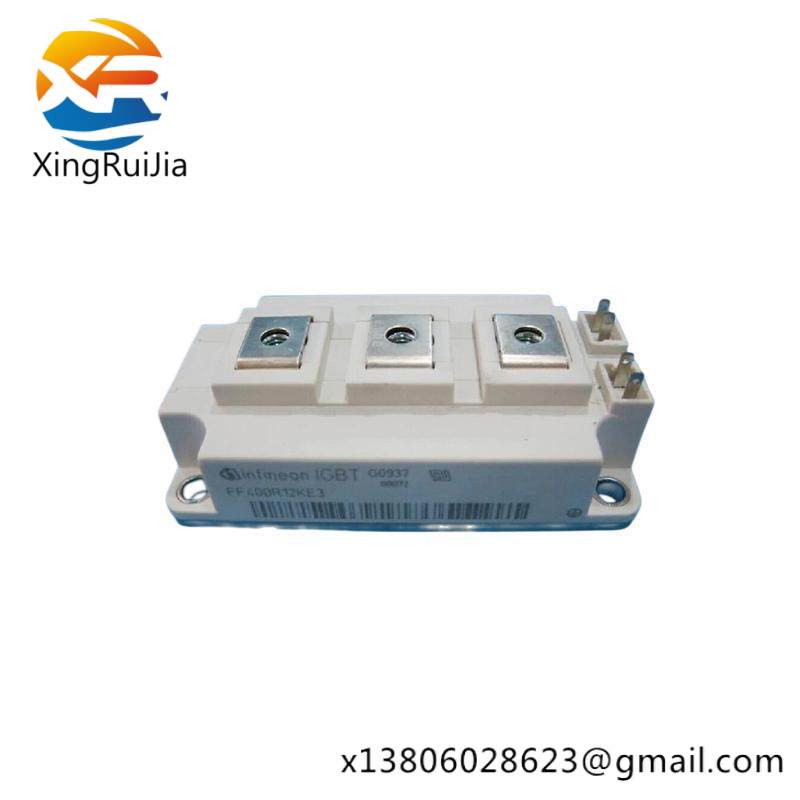

    Integrating advanced semiconductor technology, the ABB FF400R12KE3 IGBT module delivers unparalleled performance in challenging industrial environments. Its robust design ensures long-lasting reliability, making it an ideal choice for high-power motor control systems.

    Featuring a wide operating temperature range from -40°C to +170°C, this module can withstand extreme conditions without compromising on performance. It supports up to 20 kHz switching frequency, enabling faster response times and improved system efficiency.

    The FF400R12KE3 is equipped with an insulation class of F, ensuring high levels of electrical isolation and preventing voltage breakdowns under harsh conditions. The cooling system consists of a thermal pad and an external cooling mechanism, facilitating efficient heat dissipation for optimal operation.

    Withstanding humidity levels from 5% to 95% RH, this module is suitable for use in various industrial settings. It comes with IP20 enclosure protection, safeguarding against dust and splashes of water, enhancing its durability and safety in diverse applications.

    The lightweight design and compact size make installation and integration straightforward, minimizing the footprint and complexity of motor control systems. The ABB FF400R12KE3 IGBT module is engineered to optimize energy consumption and reduce maintenance costs, delivering exceptional value to manufacturers seeking high-performance solutions.
