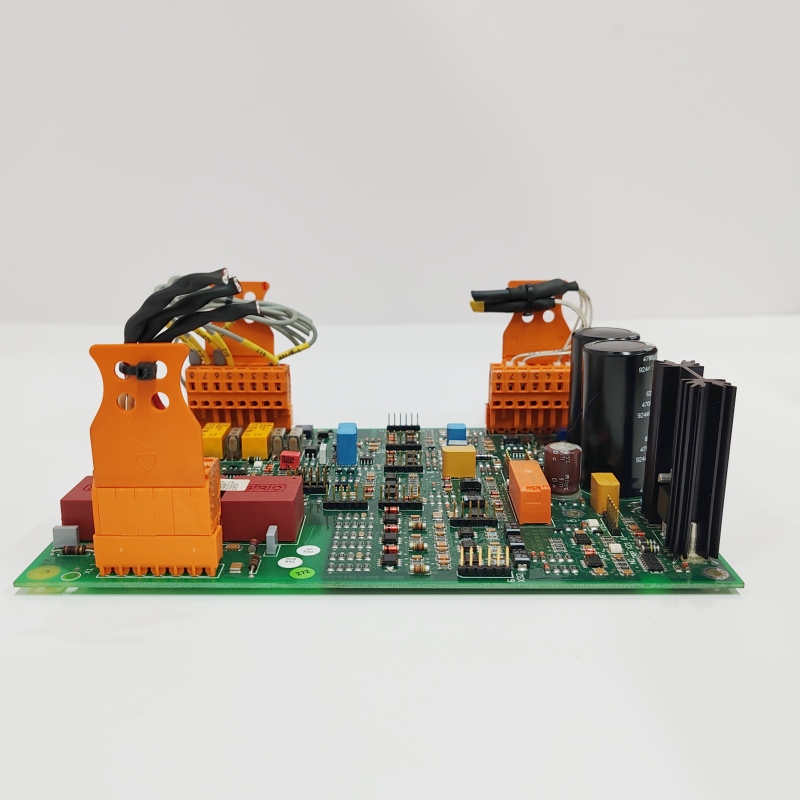

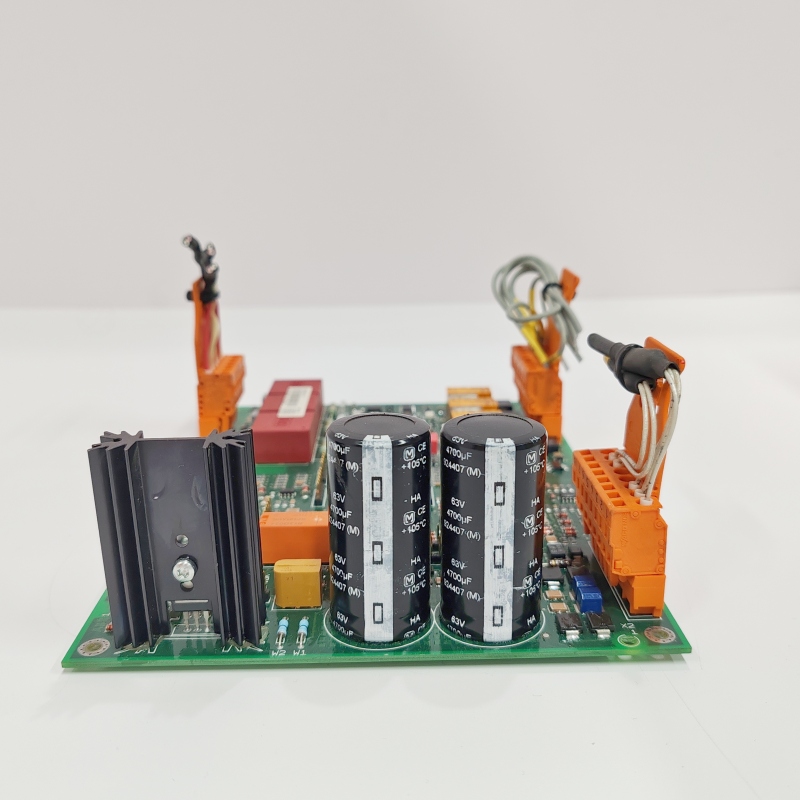

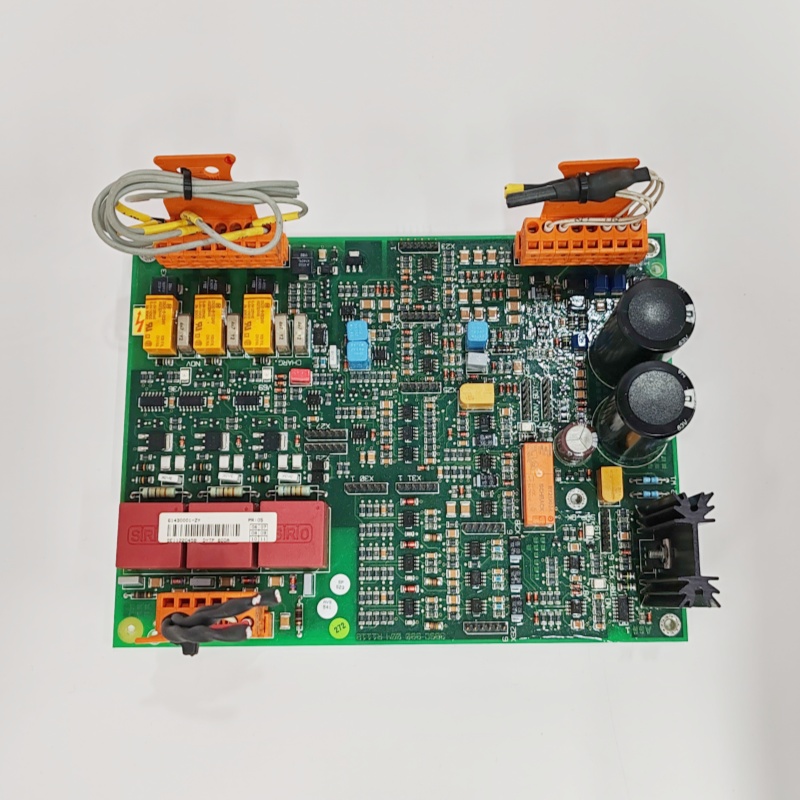

ABB DYTP600A 61430001-ZY

1. Overview

2. Parameters

• Model: DYTP600A 61430001-ZY
• Brand: ABB
• Type: Digital signal processor module
• Input Voltage: 24V DC
• Communication Interface: Power Line Carrier (PLC)
• Operating Temperature: -10°C to 60°C
• Installation Method: DIN rail mounting
• Communication Protocol: Power Line Carrier (PLC)
• Input/Output Signals: Digital
• Enclosure Material: Industrial-grade plastic
• Protection Class: IP20
• Dimensions: 100mm x 120mm x 75mm (width x height x depth)
• Weight: 0.5 kg

3. Product Features

• Advanced Programmable SureStep Drives: Equipped with two new drives, providing higher current capability and more functions. The software resolution is up to 51,200 steps per revolution, ensuring smooth and accurate movement. Each phase can deliver up to 10A of power, suitable for handling high loads.
• Multi-Input Signal Compatibility: Supports step and direction, CW/CCW pulse input, A/B quadrature input, and 12-bit analog input, enabling seamless integration with various control systems.
• High-Performance Computing: Possesses strong computing and storage capabilities, suitable for high-performance computing applications.
• Multiple Interface Support: Offers a variety of interfaces (such as UART, SPI, I2C, and Ethernet interfaces) for easy connection with various external devices.
• Real-Time Control: Applicable to scenarios requiring real-time data processing and control, such as real-time factory automation, simulation, instrumentation, as well as process control and monitoring.
• High Reliability: Adopts advanced protection mechanisms to ensure safe operation.

4. Structure and Composition

• Modular Design: The module adopts a modular design, facilitating installation and maintenance.
• Integrated Interfaces: Built-in multiple interfaces to support data exchange with different devices and systems.
• Safety Functions: Has the ability to quickly stop or switch to a safe state in emergency situations, protecting the safety of operators and equipment.

5. Application Fields

• Industrial Automation: Widely used in industrial automation control systems to improve the automation level and production efficiency of production lines.
• Real-Time Control: Suitable for scenarios requiring real-time data processing and control, such as real-time factory automation, simulation, instrumentation, as well as process control and monitoring.
• High-Performance Computing: With strong computing and storage capabilities, it can support high-performance computing applications.
• Communication Field: Applicable to high-performance digital signal processing in wireless communication and industrial automation fields.
• Power Distribution: Used for power line carrier interfaces in power distribution and control systems to achieve reliable and efficient communication.
• Robotics and Precision Machining: Suitable for high-performance stepping motors in industrial automation, robotics, precision machining, medical equipment, and aerospace fields.

6. Installation and Maintenance

• Installation Method: Adopts DIN rail mounting, facilitating installation and disassembly.
• Maintenance: The module is compact in design, making it easy to install and maintain.
• Technical Support: Comprehensive technical support and after-sales service are provided to ensure the long-term stable operation of the system.
