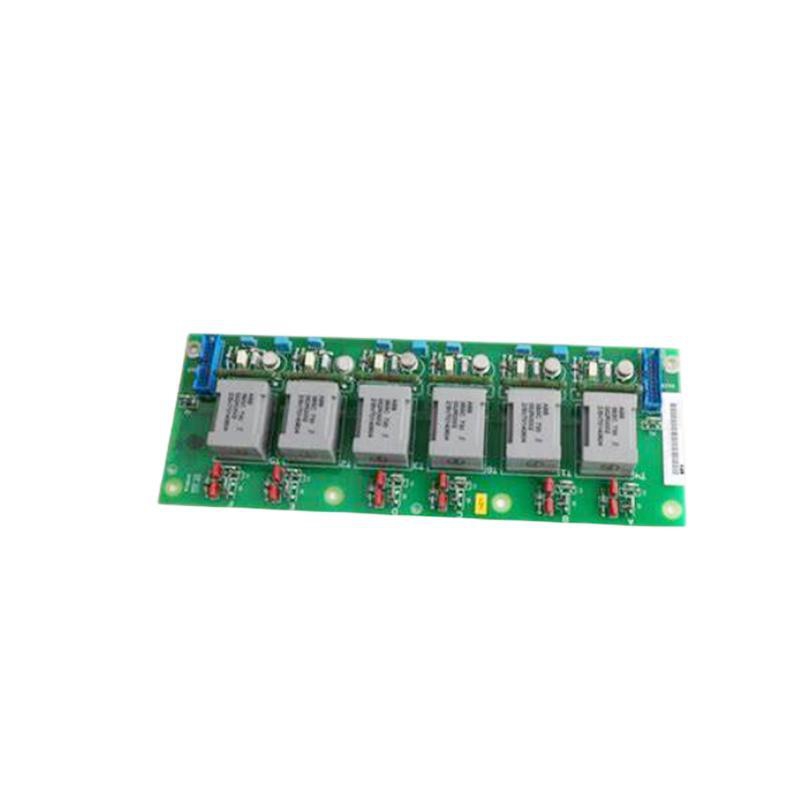

ABB DSTDW150

1. Overview

The ABB DSTDW150 is a high-performance module developed by ABB for industrial automation, primarily designed for signal processing and control functions in industrial control systems. Known for its high reliability, precision, and fast response speed, this module is suitable for a wide range of industrial applications.

2. Specifications

• Input Voltage: 24V DC ± 20%
• Input Current: Max. 5 mA or 0.5 A
• Output Voltage: 24V DC
• Output Current: 16 relay channels
• Operating Temperature: -40°C to +85°C
• Protection Rating: IP67
• Dimensions: 140 mm × 75 mm × 40 mm
• Weight: Approx. 300 g
• Installation Standards: Complies with IEC 60947-1, UL 508A, and CSA C22.2 No.14.

3. Key Features

• High Reliability: Utilizes advanced MOSFET technology for extended lifespan and dependable performance.
• High Precision: Supports multiple communication interfaces, including Ethernet and serial communication, ensuring stable and accurate data transmission.
• Strong Anti-Interference Capability: Features plug-and-play digital connectors with shielded signal cables to maintain stable digital signal transmission.
• Easy Integration: Compatible with various signal types and communication protocols, facilitating seamless integration into existing industrial control systems.
• Multiple Protection Functions: Includes overload, short-circuit, and overheating protection for safe operation under abnormal conditions.

4. Structure and Components

• Digital Connector: Composed of digital connectors and signal cables, with customizable specifications, lengths, and interface types.
• Relay Channels: 16 relay channels for controlling external devices.
• Power Module: Supports 24V DC power input, suitable for diverse industrial environments.

5. Applications

• Industrial Automation: Widely used in industrial control systems for signal processing and control.
• Robotics: Ideal for signal acquisition and processing in robot control systems.
• Power System Control: Applied in power system monitoring and control.
• Environmental Monitoring: Used for signal acquisition in environmental monitoring systems.
• Smart Building Control: Integrated into building automation systems for efficient control.

6. Installation & Maintenance

• Installation: Complies with IEC 60947-1, UL 508A, and CSA C22.2 No.14 standards; suitable for DIN rail mounting.
• Wiring: Supports screw terminals or quick-connect terminals.
• Maintenance: Equipped with system diagnostics for optimal performance. Regular inspection and maintenance help extend the module’s service life.
