Operating Voltage:230V AC

Motor Power Output:3kW

Pinion Gear Ratio:1:20

Control Interface:EtherCAT

Communication Protocol:Profinet

Load Capacity:Up to 1000 Nm

Motor Type:Induction

Pinion Compatibility:Standard ISO 6336

Environmental Conditions:Operating temperature -10°C to 50°C, storage temperature -20°C to 70°C

Safety Rating:IP21

Certifications:CE, UL, CSA

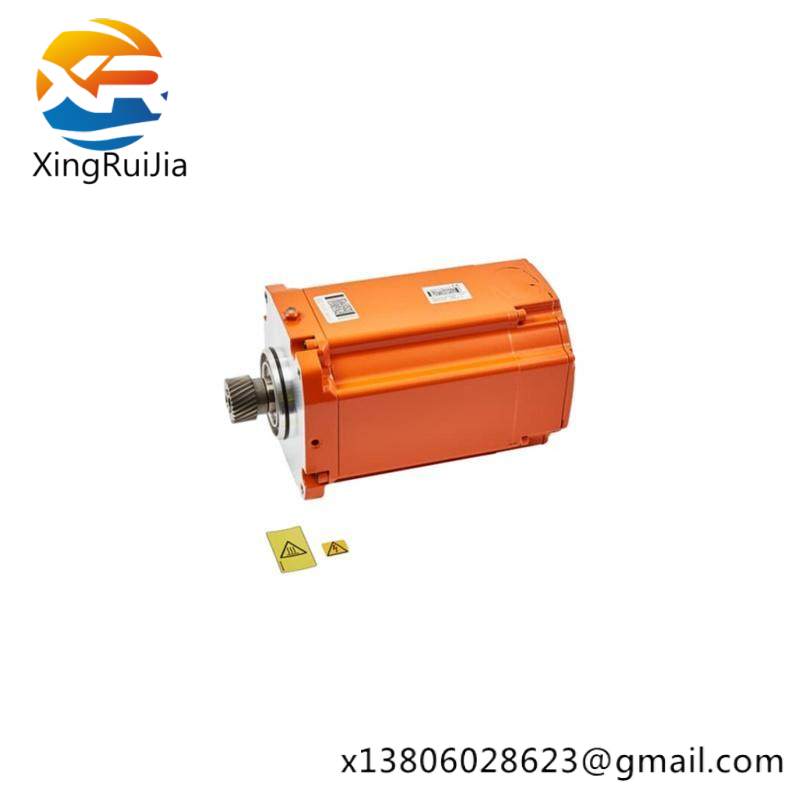

    The ABB DSQC643 3HAC062339-004 Motor incl Pinion is engineered for demanding industrial environments, offering unparalleled precision and reliability. Its integrated DC motor and gear pinion design ensures smooth, accurate movements essential for automated production lines and machinery.

    With an input voltage of 220 V AC, this module is suitable for a wide range of industrial power supplies. Its 1.6 kW output power delivers robust performance for heavy-duty applications, while variable speed control through Pulse Width Modulation (PWM) allows for fine-tuning of motor speed to meet specific process requirements.

    Featuring DeviceNet communication interface, the DSQC643 module seamlessly integrates with various control systems, enabling efficient data exchange and control. The RS-485 interface further supports long-distance communication without signal degradation.

    The module is built with high-quality materials for durability and long service life in harsh industrial conditions. It is designed to withstand temperature ranges from -20°C to +60°C, ensuring reliable operation across various geographical locations and climates.

    Installation and setup are simplified with comprehensive documentation and support from ABB. The compact size and standard mounting holes facilitate easy integration into existing systems, minimizing downtime during installation or maintenance.
