Operating Voltage:DC 24V

Frequency Range:0.00 Hz to 1000 Hz

Sampling Rate:1000 samples/sec

Accuracy:+/- 0.02%

Resolution:16 bits

Communication Protocol:Modbus ASCII, Modbus RTU

Connection Type:RS-485

Power Consumption:Max. 20mA at 24V DC

Dimensions:96mm x 48mm x 28mm

Weight:40g

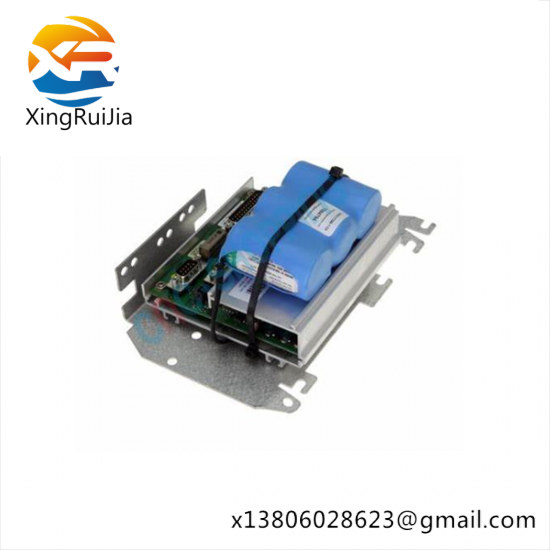

    The ABB DSQC562 3HAC17396-1 serial measurement unit is a high-performance module designed for seamless integration into complex industrial automation systems. It offers a wide range of input/output capabilities, enabling accurate signal conversion and transmission, making it an indispensable tool for monitoring and controlling various industrial processes.

    With its robust design, the DSQC562 is engineered to withstand harsh industrial conditions, ensuring reliable operation in extreme temperatures and humidities. Its efficient power consumption and compact size facilitate easy installation and maintenance, reducing downtime and enhancing operational efficiency.

    Featuring advanced communication interfaces such as RS-232 and RS-485, the DSQC562 allows for versatile connectivity with other devices and systems, supporting the MODBUS RTU protocol for seamless data exchange in a wide array of applications.

    This serial measurement unit supports up to 16 inputs and 16 outputs, providing ample flexibility for configuring various control scenarios. Whether you’re dealing with temperature, pressure, or flow measurements, the DSQC562 can accommodate diverse sensor signals, delivering precise and real-time data to your automation system.

    The ABB DSQC562 3HAC17396-1 serial measurement unit is a testament to ABB‘s commitment to innovation and reliability in industrial automation. It is designed to enhance productivity, improve safety, and optimize performance in manufacturing and process industries worldwide.
