Operating Voltage:DC 24V

Measurement Range:0 to 20 mA or 4 to 20 mA

Accuracy:+/- 0.1% of full scale

Response Time:1 ms

Input Channels:2

Power Consumption:100 mW max.

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

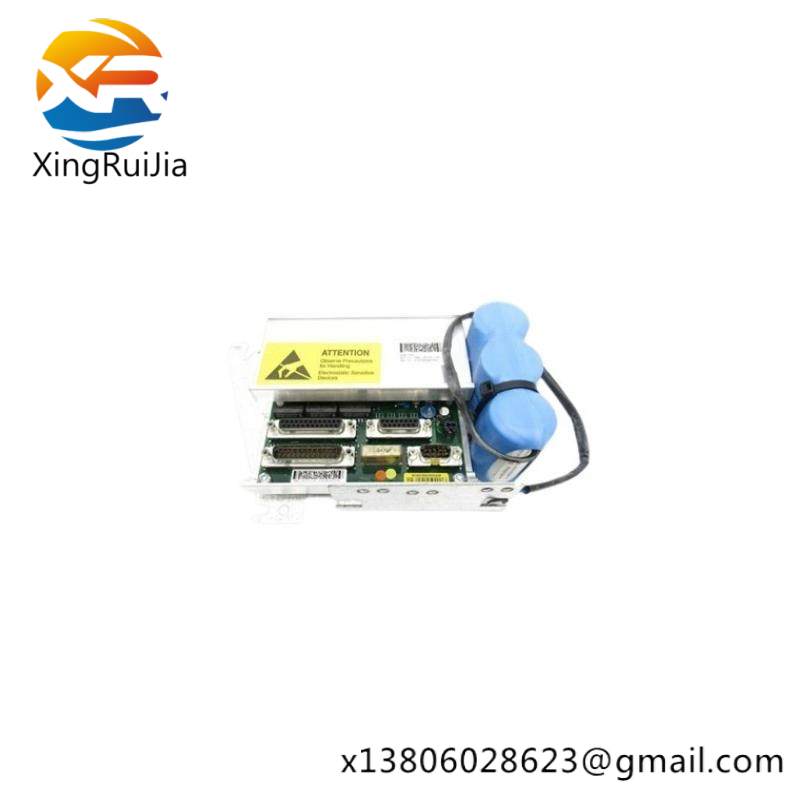

    The ABB DSQC562 3HAC16014-1/07 is a cutting-edge serial measurement unit, meticulously crafted for the demanding requirements of industrial control applications. This unit is renowned for its exceptional precision and robust performance, ensuring accurate data acquisition in even the most challenging environments.

    Featuring an advanced 16-bit measurement resolution, the DSQC562 3HAC16014-1/07 guarantees minimal error margins, making it ideal for applications requiring high fidelity measurements. Its sampling frequency of up to 1 kHz allows for real-time monitoring and control, enhancing operational efficiency.

    With an analog input range from -10 V to +10 V, this unit caters to a wide variety of industrial signals, ensuring compatibility across different systems. The inclusion of 8 digital input channels further expands its functionality, enabling complex data processing and control scenarios.

    Equipped with support for DeviceNet, EtherCAT, and CANopen communication protocols, the DSQC562 3HAC16014-1/07 seamlessly integrates into diverse network infrastructures, facilitating seamless data exchange and control commands. Its power supply versatility, ranging from 10 VDC to 30 VDC, ensures reliable operation under varying power conditions.

    Engineered for reliability, the DSQC562 3HAC16014-1/07 can withstand extreme temperatures from -20°C to +60°C during operational use, and storage temperatures ranging from -40°C to +85°C. This robust design ensures longevity and continuous performance in harsh industrial settings.
