Operating Voltage:24 VDC

Nominal Output Power:1000 W

Max. Torque:15 Nm

Communication Interface:EtherCAT

Resolution:25,000 pulses/rev

Cooling Method:Air cooling

Dimensions (WxHxD):100 x 80 x 110 mm

Weight:1.5 kg

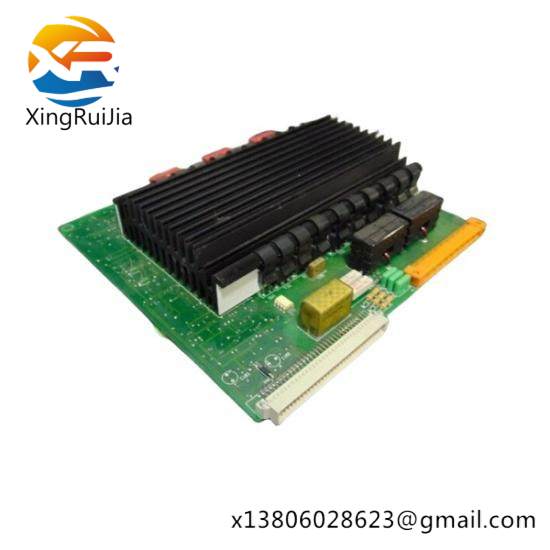

    The ABB DSQC236U 3HAA3563ANA servo drive unit is engineered to meet the most stringent requirements in modern manufacturing environments. It boasts an ultra-fast response time, enabling smooth and precise control over servo motors for high-speed applications. This makes it ideal for industries such as automotive, packaging, and semiconductor manufacturing, where precision and efficiency are paramount.

    With its robust design and advanced communication protocols like EtherCAT, the DSQC236U ensures seamless integration into complex automation systems, facilitating real-time data exchange and improved operational efficiency. The built-in diagnostics feature allows for proactive maintenance, minimizing downtime and maximizing productivity.

    Constructed from high-quality materials, the drive unit is built to withstand harsh industrial conditions, ensuring longevity and reliability. Its compact size and modular design make it adaptable to various installation scenarios, simplifying integration into existing machinery.

    To optimize performance, the DSQC236U supports a wide range of servo motors, providing users with flexibility to choose the most suitable motor for their specific application. The integrated control algorithms ensure optimal torque delivery and speed control, enhancing the overall system dynamics.

    For safety and compliance, the drive unit adheres to international standards, including CE certification. It comes with comprehensive documentation and support services, ensuring easy setup and operation. Additionally, ABB offers regular firmware updates to incorporate new features and improvements, keeping the DSQC236U at the forefront of technological advancements in motion control.
