Product Type:Drive Unit

Brand:ABB

Model:DSQC236T

Module ID:DSQC236

Technology:EtherCAT

Power Consumption:12V DC

Current Rating:2A

Input Voltage Range:24V DC

Output Current per Channel:2A

Number of Channels:4

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Weight:0.3kg

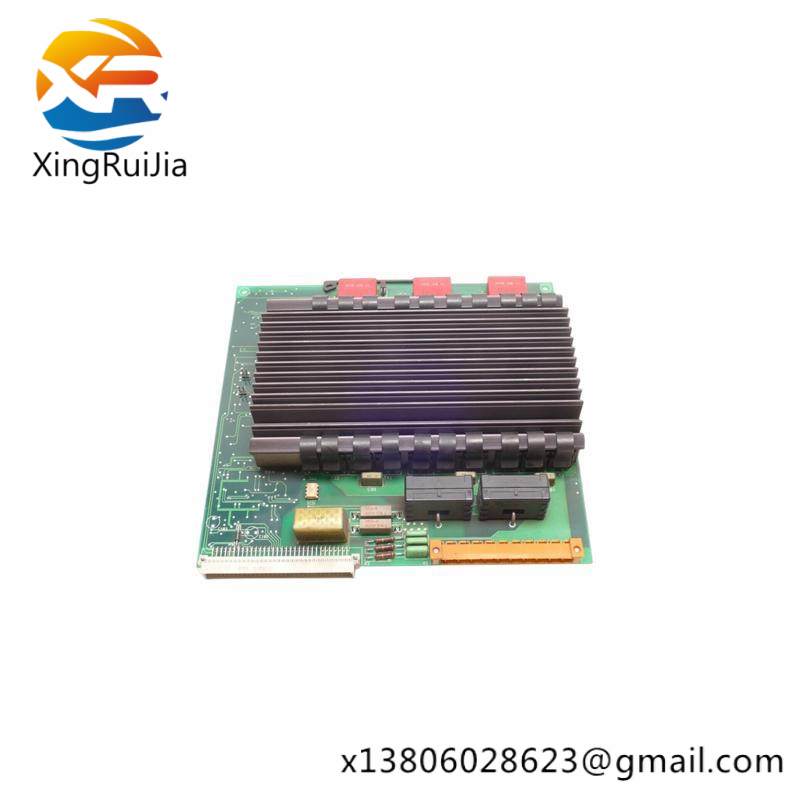

    The ABB DSQC236T Drive Unit stands at the forefront of industrial automation technology, delivering exceptional precision and efficiency for motor control applications. This compact and robust drive unit is engineered with state-of-the-art components to ensure reliable operation under demanding conditions.

    Featuring EtherCAT communication, the DSQC236T seamlessly integrates into complex control networks, providing high-speed data transfer for enhanced system responsiveness. Its compatibility with MODBUS TCP/IP protocols further broadens its integration capabilities, making it suitable for a wide range of automation environments.

    With a power rating of up to 1kW and an operating voltage range of 12V to 24V DC, this drive unit is versatile enough to handle various motor loads while maintaining optimal performance. The unit’s compact size (150mm x 90mm x 35mm) and lightweight design (0.3kg) facilitate easy installation and integration into existing machinery.

    Operating within a temperature range of -20°C to +60°C, the DSQC236T is designed for use in a variety of industrial settings, from cold storage facilities to hot manufacturing plants. Its IP20 rating ensures protection against dust and splashes of water, enhancing durability and longevity in harsh environments.

    The ABB DSQC236T Drive Unit is equipped with advanced safety features, including overcurrent protection and short-circuit detection, ensuring operational safety and minimizing downtime. Coupled with ABB‘s comprehensive support and extensive industry experience, users can expect unparalleled service and expertise throughout the lifecycle of their investment.
