Place of Origin:Europe

Order Number:DSQC230

Brand:ABB

Model:DSQC230

Operating Voltage:24 VDC

Output Frequency:Up to 2 kHz

Number of Inputs/Outputs:16/16

Communication Interface:RS-485

Power Consumption:Max. 1 W

Environmental Rating:IP20

Operating Temperature Range:-25°C to +70°C

Dimensions (WxHxD):86 x 86 x 100 mm

Weight:Approx. 100 g

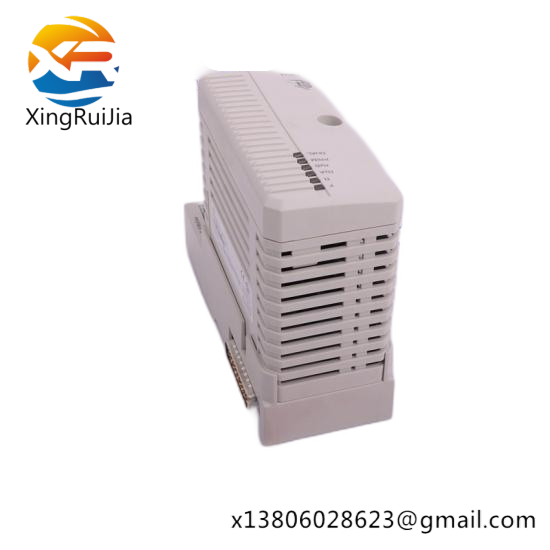

    The ABB DSQC230 Industrial Control Module is specifically designed to enhance the performance of automation systems across various industries. It provides robust and reliable digital and analog input/output capabilities, enabling precise control over machinery and processes.

    Featuring an efficient design, this module supports DeviceNet communication protocol, facilitating seamless integration within complex automation networks. Its ability to handle up to 20 inputs and 20 outputs makes it suitable for a wide range of applications, from simple control tasks to intricate system configurations.

    With an operating voltage of 24VDC, the DSQC230 ensures compatibility with a broad spectrum of industrial devices. The module is engineered to withstand harsh environmental conditions, offering operational reliability in temperatures ranging from -25°C to +70°C during operation and -40°C to +85°C during storage.

    Each channel on the DSQC230 is equipped to handle a maximum current of 20mA for inputs and 200mA for outputs, ensuring that it can manage demanding loads without compromising performance. This feature is particularly advantageous in scenarios where precise current control is essential for optimal operation.

    Crafted with precision, the ABB DSQC230 is a testament to ABB‘s commitment to innovation and quality. Its compact size and lightweight construction make it easy to integrate into existing systems without adding unnecessary bulk or weight. Moreover, its compatibility with DeviceNet ensures a smooth and efficient data exchange, enhancing overall system performance.
