Number of Analog Inputs:16

Number of Analog Outputs:8

Number of Digital Inputs:32

Number of Digital Outputs:16

Communication Interface:RS-485

Power Consumption:5W

Operating Temperature Range:-20°C to +60°C

Relative Humidity Range:5% to 95% non-condensing

Dimensions:100mm x 90mm x 35mm

Weight:0.3kg

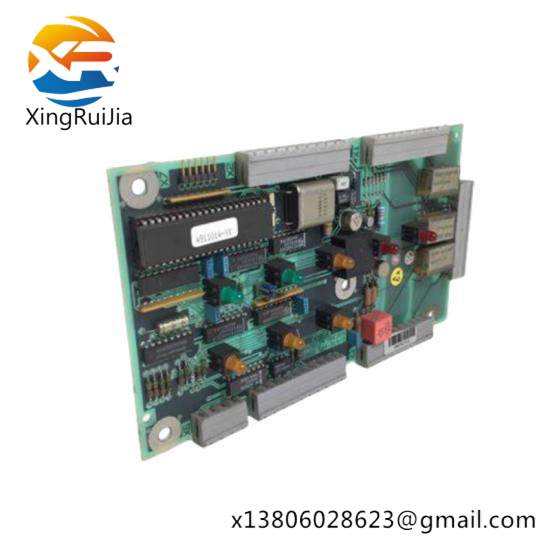

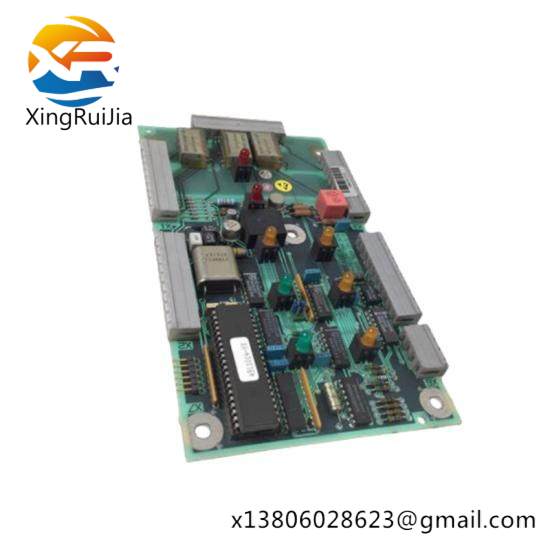

    The ABB DSQC200 is engineered with a focus on reliability and efficiency, making it an ideal choice for industries requiring high-performance control solutions. This module boasts a compact design that facilitates easy installation and integration into existing systems.

    Equipped with a wide operating temperature range from -20°C to +70°C, the DSQC200 ensures continuous operation in harsh industrial environments. It supports storage temperatures from -40°C to +85°C, allowing for versatile deployment in diverse conditions.

    Featuring a robust power supply range of 12 VDC to 24 VDC, the DSQC200 ensures stable operation under varying power conditions. The maximum load current per channel of 25 mA allows for precise control of connected devices without compromising system performance.

    With 8 digital inputs and 8 digital outputs, the module provides ample connectivity for managing a variety of industrial tasks. This feature set enables users to easily configure and expand their automation systems as needed.

    Integrated with a Profinet communication interface, the DSQC200 seamlessly connects to ABB‘s comprehensive suite of automation products and systems, enhancing the interoperability and scalability of industrial networks. This integration capability ensures smooth data exchange and control across multiple devices, streamlining operations and improving overall productivity.
