Input Voltage Range:230V AC to 400V AC

Output Voltage:24V DC

Output Current:10A

Efficiency:95%

Power Rating:240W

Operating Temperature:-20°C to +60°C

Dimensions (WxHxD):100mm x 90mm x 35mm

Weight:0.3kg

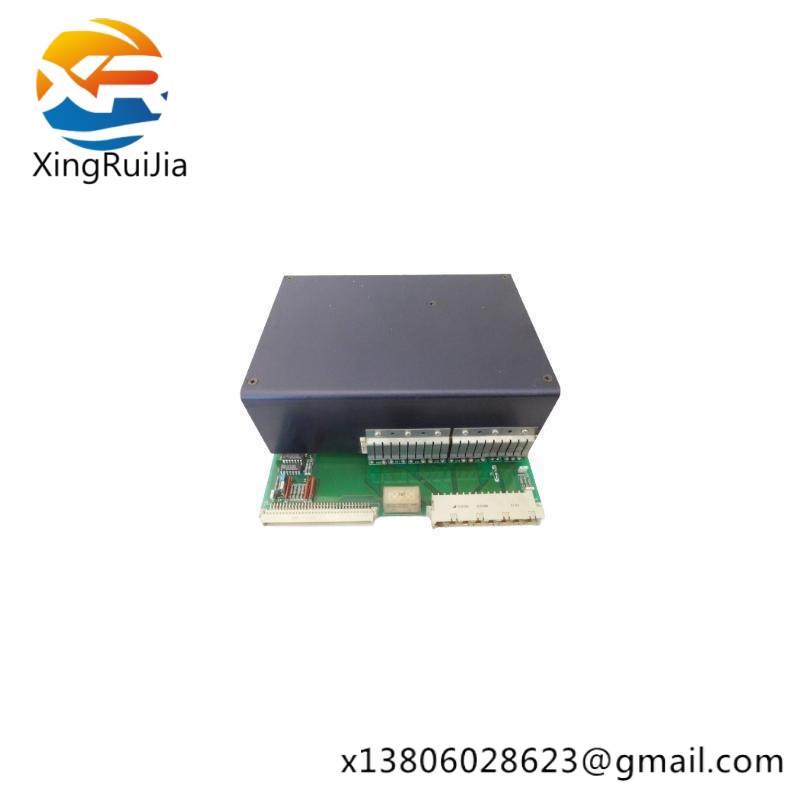

    The ABB DSQC 314B Rectifier is engineered for seamless integration into complex industrial control systems, delivering exceptional rectification performance for a wide array of applications. This advanced module is equipped with a robust communication interface, supporting both EtherCAT and CANopen protocols, ensuring reliable data exchange with other system components.

    Featuring a compact design, the DSQC 314B Rectifier offers space-saving installation options without compromising on functionality. It supports a broad range of input current signals, making it versatile for various control scenarios. With its precision output voltages and currents, it ensures accurate process control and monitoring.

    Designed for operation within a wide temperature range from -20°C to +70°C, the DSQC 314B Rectifier maintains consistent performance under challenging industrial conditions. Its durable construction ensures reliability and longevity, minimizing maintenance requirements and downtime.

    This module is equipped with 16 digital inputs and 16 digital outputs, providing ample connectivity for system expansion and customization. It facilitates the setup of intricate control strategies, enabling efficient automation processes in manufacturing and other industries.

    With its compact size and lightweight design, the ABB DSQC 314B Rectifier is ideal for modern, space-constrained industrial environments. It complements ABB’s comprehensive line of control solutions, enhancing productivity and efficiency across various sectors.
