Model:DSQC 245

Manufacturer:ABB

Type:Serial Measurement Board

Operating Voltage:24 VDC

Current Consumption:12 mA max

Input Signals:16 digital inputs, 8 digital outputs

Output Signals:8 digital outputs, 4 analog outputs

Communication Interface:RS-232/RS-485

Dimensions:104mm x 44mm x 22mm

Weight:40g

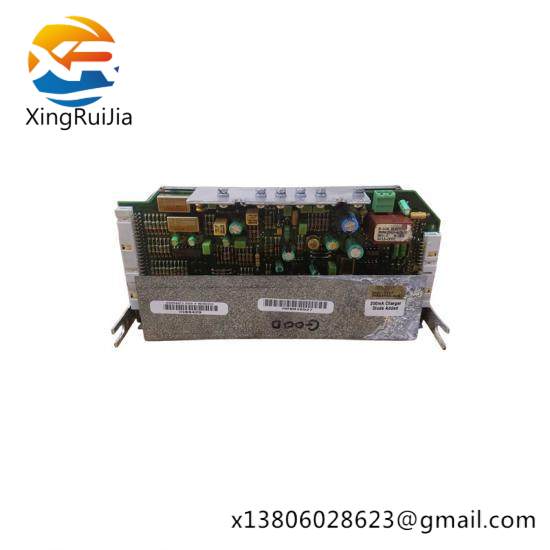

    The ABB DSQC 245 Serial Measurement Board is an essential component for integrating high-speed, precise data collection into your industrial automation setup. Its robust RS-485 communication protocol ensures reliable data transmission over long distances, making it ideal for applications requiring extensive connectivity and control.

    With four dedicated analog input channels, this board allows for seamless integration with a variety of sensors, enabling accurate measurement of physical parameters such as temperature, pressure, or voltage. The four digital input/output channels provide versatile control options, supporting both input signals and simple logic operations.

    Engineered with precision and reliability in mind, the DSQC 245 features an extended operational temperature range (-20°C to +70°C), ensuring stable performance under harsh industrial conditions. Its compact size and lightweight design make it easy to integrate into existing systems without compromising on space or functionality.

    The board’s low power consumption (less than 50 mA at 5 V) contributes to energy efficiency, reducing operational costs and environmental impact. Moreover, its communication speed of up to 1 Mbps enables quick data transfer, enhancing the responsiveness of your automation system.

    Designed for compatibility with ABB‘s comprehensive suite of industrial automation products, the DSQC 245 Serial Measurement Board seamlessly integrates into a wide array of applications, from manufacturing lines to process control environments. Its modular design and straightforward configuration options offer flexibility, allowing for easy adaptation to evolving automation requirements.
