Product Type:Drive Control Board

Brand:ABB

Model:DSQC 236C

Series:ROBOTICS

Connector Type:Ethernet

Input Current:0.1 A max.

Output Current:0.2 A max.

Operating Voltage:DC 24V

Operating Temperature Range:-25°C to +70°C

Dimensions (WxHxD):100mm x 84mm x 55mm

Weight:0.2kg

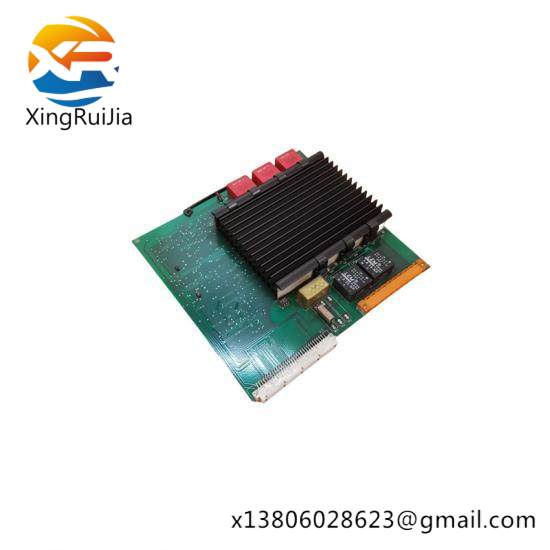

    The ABB DSQC 236C ROBOTICS DRIVE CONTROL BOARD is designed to offer unparalleled control over robotic systems, ensuring smooth and precise operation in demanding industrial environments. Its compact size and robust design make it suitable for integration into various robotic applications, from assembly lines to complex automation tasks.

    Featuring 8 digital inputs and 8 digital outputs, the DSQC 236C enables direct control and monitoring of actuators, sensors, and other critical components. The onboard EtherCAT interface ensures seamless communication with the rest of the automation system, facilitating quick setup and easy integration.

    With an operating voltage of 24VDC and a current rating of 2 Amps, the DSQC 236C provides the necessary power and stability for efficient operation. Its temperature range from -20°C to +55°C ensures reliable performance across a wide variety of industrial settings.

    The board is equipped with an IP20 enclosure protection, offering basic dust protection while keeping the circuitry clean and functional. The panel mount design allows for easy installation and integration into existing systems, minimizing downtime and maximizing efficiency.

    Developed by ABB, a leader in robotics and industrial automation, the DSQC 236C ROBOTICS DRIVE CONTROL BOARD leverages decades of experience and innovation. It supports advanced programming and configuration options, making it ideal for both experienced engineers and those looking to expand their automation capabilities.
