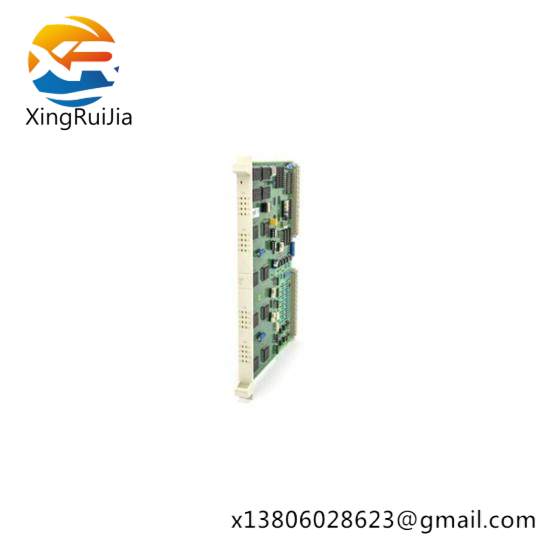

Product Type:Pulse Counting Board

Brand:ABB

Model:DSDP170

Submodel:57160001ADF

Maximum Pulse Frequency:2.5 MHz

Weight:0.38 kg

Measuring Range:Position and Speed

Primary Application:Positioning/Length and Speed/Frequency Measuring

    The ABB DSDP170 Pulse Counting Board is a precision measurement tool specifically engineered for demanding industrial environments. This board offers unparalleled accuracy and reliability in position and speed measurements, essential for applications requiring precise control over length and velocity.

    Crafted with ABB‘s advanced technology, the DSDP170 board features an integrated system capable of processing up to 2.5 MHz of pulses, ensuring real-time, high-frequency measurement capabilities. Its robust design withstands extreme conditions, from cold to hot climates, making it suitable for various industrial settings.

    With its wide input voltage range from 10V to 28V DC, the board can easily adapt to different power sources without compromising performance. The adjustable 0 to 10V DC output voltage allows seamless integration into existing control systems, enhancing operational efficiency.

    Notably, the DSDP170 includes advanced features such as positive and speed measurement capabilities, providing comprehensive monitoring solutions for machinery and processes. Its ±0.1% measurement accuracy ensures minimal error margins, critical for maintaining high-quality standards in manufacturing.

    The board’s compact size and lightweight design facilitate easy installation and maintenance, reducing downtime and costs. Additionally, the IP20 environmental resistance rating ensures protection against dust and minor water splashes, maintaining operational integrity in diverse industrial environments.
