Number of Channels:8

Output Type:Analog

Signal Range:+/- 20mA

Operating Voltage:12-bit resolution

Isolation:Individually galvanically isolated channels

Max Load Resistance:500 Ohms

Dimension (D x H x W):255 x 15 x 363 mm

Weight:0.54 kg

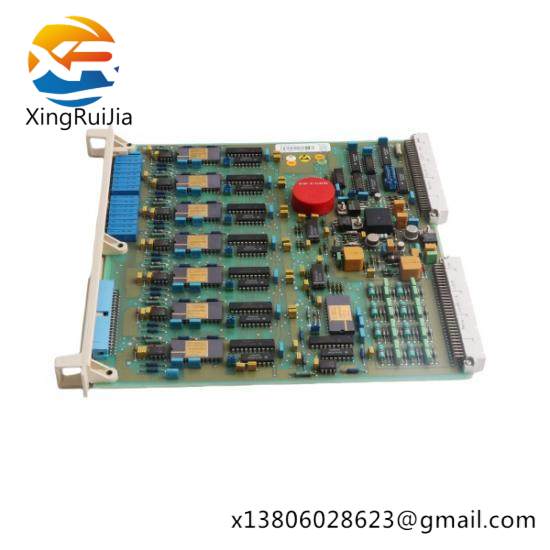

    The ABB DSAO 120 Analog Output Module is a cornerstone of modern industrial automation systems, engineered for delivering precise and reliable control signals across multiple channels. Its robust design ensures seamless integration into various control systems, supporting a wide range of industrial processes.

    Each channel is individually galvanically isolated, providing enhanced protection against electrical noise and ensuring system stability even under challenging conditions. The 12-bit resolution ensures high accuracy, making it suitable for applications requiring high precision and repeatability.

    With a signal range of +/- 20mA, the ABB DSAO 120 can handle a broad spectrum of control requirements, from fine adjustments to larger output changes. The module’s ability to operate within an extended temperature range (-25°C to +70°C) makes it ideal for use in diverse industrial environments, from cold storage facilities to hot manufacturing floors.

    In terms of power consumption, the ABB DSAO 120 is efficient, consuming a maximum of 2W per channel, which contributes to overall system efficiency and cost-effectiveness. Its compact size (102 x 19 x 45 mm) and lightweight design (0.3kg) make it easy to integrate into existing setups without requiring significant space or additional support.

    For users seeking a reliable and high-performance analog output solution, the ABB DSAO 120 is an excellent choice. Its combination of features, including high-resolution outputs, individual isolation, and robust construction, makes it a valuable asset in any industrial automation setup, enhancing operational efficiency and reliability.
