Type:Digital Output Module

Model:DO815

Voltage:24V DC

Channels:8

Response Time:≤1ms

Operating Temperature:-20°C to +60°C

Relative Humidity:5% to 95% non-condensing

Enclosure Protection:IP20

Communication Interface:RS-485 Modbus RTU

Power Consumption:≤1.5W per channel

Mounting:Panel Mount

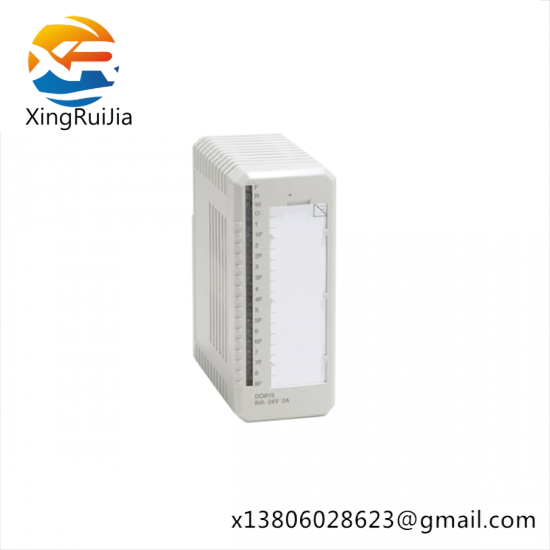

    The ABB DO815 Digital Output Module is a robust solution for industrial automation systems, providing exceptional reliability and precision in controlling up to 8 digital outputs at 24V DC. Its compact design ensures minimal space consumption while its high current capacity supports a wide range of applications including but not limited to motor control, lighting management, and safety systems.

    Each channel is equipped with high-quality relay contacts rated for continuous and momentary operation, ensuring long-lasting service and minimal maintenance needs. The module is compatible with various industrial communication protocols, including Modbus RTU, which facilitates easy integration with existing control systems.

    Engineered to withstand harsh industrial environments, the ABB DO815 operates within a temperature range of -25°C to +70°C, making it suitable for diverse manufacturing settings. Its lightweight construction and modular design enhance its flexibility, allowing for efficient installation and maintenance.

    With its high switching speed and low power consumption, this module optimizes energy efficiency, reducing operational costs and enhancing system performance. Furthermore, its compatibility with different control strategies and its ability to handle complex switching tasks make it an indispensable component in modern industrial automation.

    ABB‘s commitment to quality and innovation is reflected in the DO815’s design, featuring advanced circuit protection mechanisms that safeguard against overvoltage and short-circuit conditions, ensuring uninterrupted operation and system integrity.
