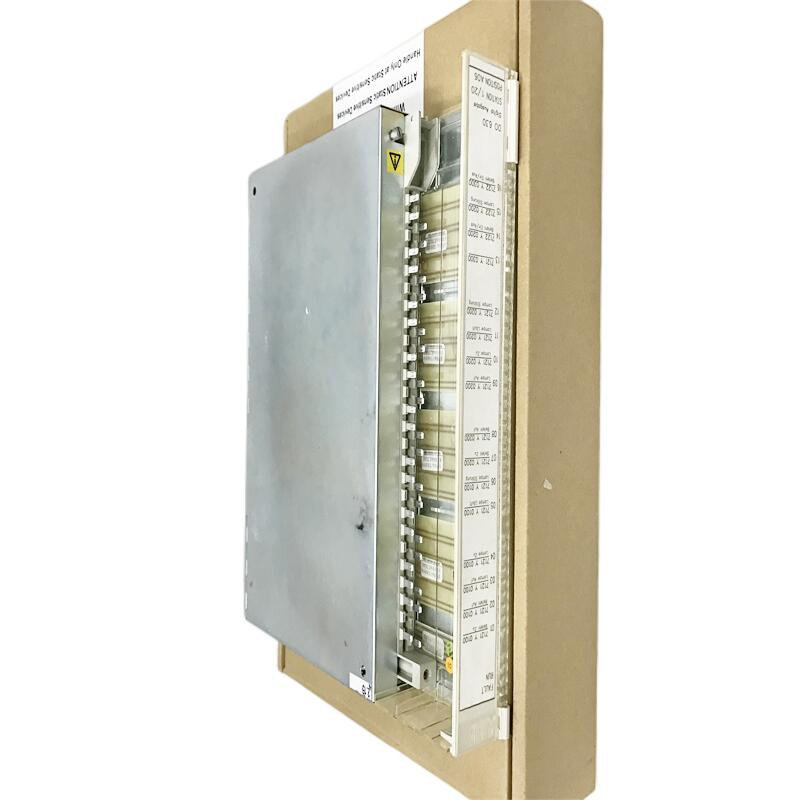

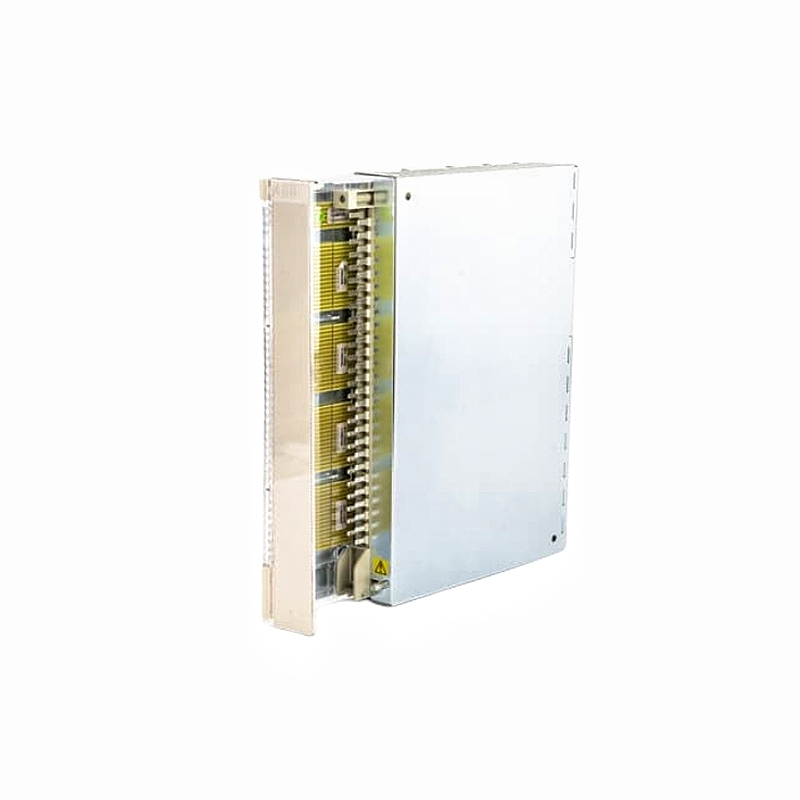

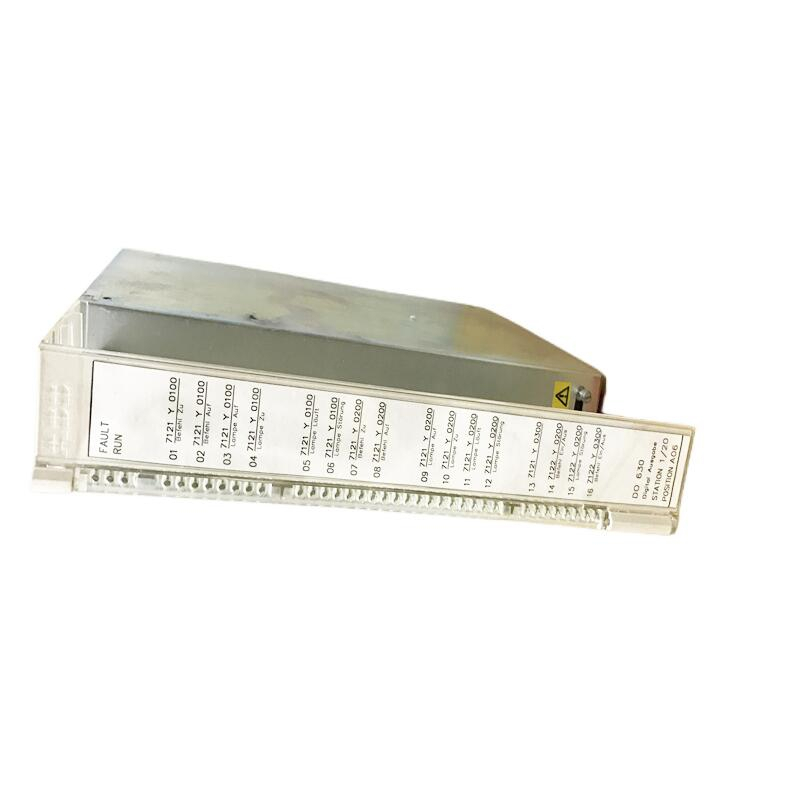

ABB DO630

I. Overview

II. Parameters

• Number of channels: 16 digital output channels.
• Output current: Each channel can output up to 2A, meeting various load requirements.
• Operating temperature: -20°C to 60°C.
• Protection class: IP67.
• Supply voltage: 24V DC or lithium battery (3-5 years).
• Output voltage: 3.3V DC (+3%, 5A) and 5.0V DC (+3%, 5A).
• Overload protection: 150% of maximum value.
• Horizontal installation error: ±0.05% maximum.
• Long-term stability: 0.1% annual drift.

III. Product Features

• High reliability: Adopting a rugged design and strict production processes to ensure stable operation of the module.
• Ease of use: Providing easy-to-understand programming software and documentation for user convenience.
• Cost-effectiveness: Having good performance-price ratio, which can reduce the operating cost of equipment.
• High current output: Each channel can output up to 2A, meeting various load requirements.
• Short-circuit protection: Each output point is equipped with short-circuit protection function to prevent module damage.
• Isolation function: There is isolation between input and output to prevent interference.
• Redundant input power supply: Providing two-way redundant input power supply with input range of 24V DC+25% and EMC filtering function.
• Diagnostic function: Diagnostic interface with EMC filtering, and diagnostic data is stored in EEPROM.

IV. Structure and Composition

• Module type: 16-channel 250 VAC digital output module.
• Installation method: DIN rail mounting.
• Terminal block: Detachable terminal block.
• Working mode: The front panel LED indicates the working status of AC 800F, and the switch on the front panel controls the working mode of AC 800F.
• Communication interface: Supporting multiple communication protocols such as MODBUS.

V. Application Fields

• Industrial automation: Used to control various industrial equipment such as motors, valves, relays, etc.
• Building control: Used to control building equipment such as air conditioners, lighting, access control, etc.
• Process control: Used to control various industrial processes such as chemical industry, metallurgy, food processing, etc.
• Power generation: Used in the DCS monitoring system of power plants.
• Oil and gas: Used in the automation control of the oil and gas industry.
• Transportation: Used in the automation control of transportation systems.
• Water treatment: Used for precise control of process parameters in water treatment plants.
• Data center: Used for equipment control in data centers.
• Renewable energy: Used in the automation control of renewable energy systems.
• Mechanical automation: Used in the control of mechanical automation systems.
• Material handling: Used in the control of material handling systems.
• Shipbuilding: Used in the automation control of shipbuilding.

VI. Installation and Maintenance

• Installation method: DIN rail mounting.
• Installation steps: Install according to the DIN rail installation guide.
• Maintenance: Regularly check the operation status of the module to ensure its normal work.
• Fault diagnosis: Perform fault diagnosis through the diagnostic function of the module.
• Safety measures: Ensure personal safety during installation and maintenance.
