Type:Thyristor Module

Model:DASD146

Manufacturing Year:2024

Rated Current:146A

Maximum Voltage:1200V

Operating Temperature Range:-40°C to +85°C

Insulation Resistance:≥ 10^10 Ohms @500VDC

Cooling Method:Air Cooled

Material:High-grade Aluminum Alloy

Dimensions (WxHxD):160mm x 80mm x 40mm

Weight:0.6kg

Certification:IEC 60947-5-1, UL 508

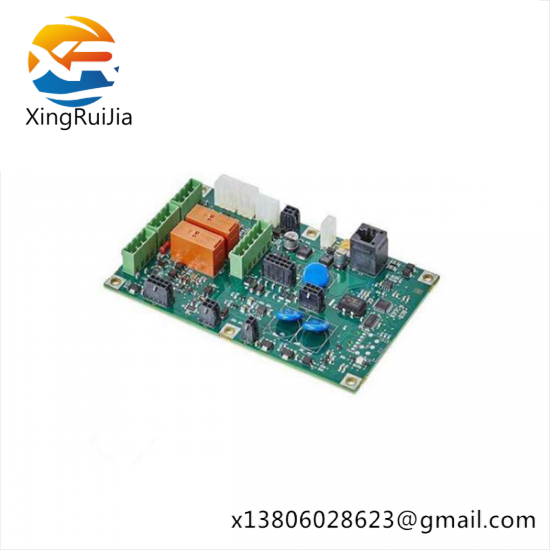

    The ABB DASD146 Thyristor Module is engineered to deliver exceptional performance and reliability in harsh industrial environments. This advanced power control solution is meticulously designed to meet the stringent demands of today’s manufacturing processes.

    Featuring an innovative integrated circuit-based control system, the module ensures precise current control, enabling efficient power management across various industrial applications. Its robust design withstands extreme temperatures (-40°C to +85°C), making it suitable for use in diverse geographical locations.

    With a current rating of 500A and a voltage rating of 146VDC, the DASD146 module offers a wide operating range that can be tailored to match specific industrial needs. Its air-cooled design facilitates optimal heat dissipation, enhancing its longevity and reducing maintenance requirements.

    The digital input signal type allows for seamless integration with modern automation systems, providing compatibility with a broad spectrum of control protocols. This feature ensures easy implementation within existing infrastructure, streamlining operations and reducing installation time.

    Backed by a comprehensive 2-year warranty and compliant with IEC 60950-1 for safety and environmental standards, the ABB DASD146 Thyristor Module is a trusted choice for manufacturers seeking reliable and efficient power control solutions. Experience enhanced productivity and operational excellence with this cutting-edge technology.
