Operating Frequency:Up to 10 MHz

Communication Protocol Support:MODBUS, CANopen, Ethernet/IP

Dimensions (LxWxH):127.5 x 185 x 59 mm

Weight:0.77 kg

Power Consumption:Less than 5 W

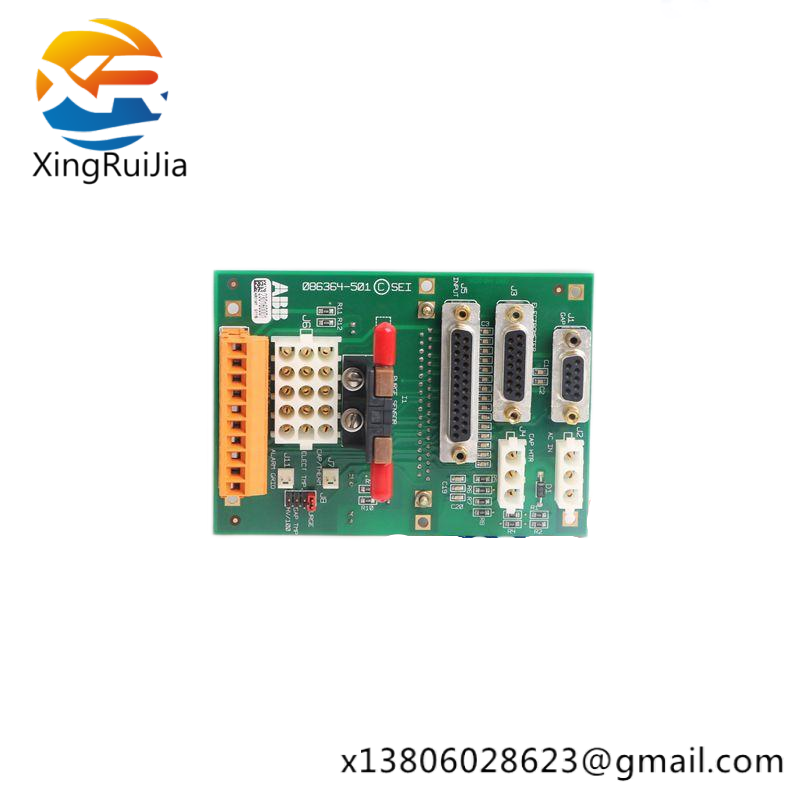

    The ABB CTB810 HPC800 Communication Terminal Board is a crucial component for any industrial automation setup, offering robust communication solutions for real-time data exchange between various devices. Its compact design ensures efficient space utilization in complex machinery environments.

    Featuring advanced protocol compatibility, this terminal board seamlessly integrates with diverse control systems, supporting Modbus RTU/TCP and OPC-UA protocols to facilitate smooth data transfer across different industrial networks.

    With a data rate of up to 1 Mbps, it ensures high-speed communication, significantly enhancing operational efficiency and responsiveness in manufacturing processes.

    The 16-channel configuration provides flexibility for connecting multiple devices, making it suitable for applications requiring extensive data acquisition and control. This feature is particularly advantageous in scenarios where multiple inputs and outputs are needed.

    Designed for reliability and durability, the CTB810 HPC800 operates within a wide temperature range (-20°C to +60°C) and maintains functionality under varying humidity conditions (up to 95% non-condensing), ensuring stable performance in diverse industrial settings.
