Model Number:3BSE000435R1

Module Type:Communications

Manufacturer:ABB

Series:MasterBus 300E

Operating Voltage:12 VDC

Communication Protocol:Profinet, DeviceNet, EtherCAT

Data Transfer Rate:Up to 10 Mbps

Number of Channels:4

Weight:0.25 kg

Dimensions (WxHxD):89mm x 89mm x 28mm

Temperature Range:-20°C to +60°C

Humidity Range:0% to 95% RH non-condensing

Connectivity Options:RS-485, Ethernet

Certifications:CE, UL, CSA

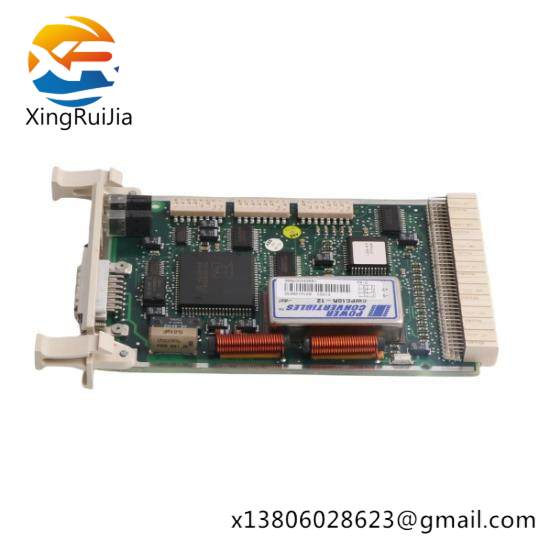

    The ABB CS513 3BSE000435R1 Communication Module is a robust addition to any industrial automation system, boasting a sleek design and high reliability. This module supports the MasterBus 300E protocol, enabling it to communicate efficiently with other devices in the network, thereby optimizing operational efficiency.

    Equipped with an advanced DB-9 male connector, the module ensures a secure connection with minimal signal loss. Its aluminum alloy construction provides durability against harsh industrial conditions, ensuring long-term performance without degradation.

    With an operating temperature range from -20°C to +70°C, this module is designed to withstand extreme environments, making it suitable for use in a wide variety of industrial settings. The module’s power consumption is exceptionally low, contributing to energy savings and cost-effectiveness.

    Featuring up to 500 kbps data rate and a communication distance of up to 1 km, the CS513 3BSE000435R1 Communication Module is capable of supporting large-scale networks. Its compatibility with DC 24V power supply ensures broad applicability across different industrial setups.

    For maintenance and troubleshooting, the module includes clear diagnostic indicators and is compatible with ABB‘s comprehensive service offerings. This ensures quick identification of issues and prompt resolution, minimizing downtime and maximizing system availability.
